BAY WINDOW CRANK

Start a new Discussion

Home Owner from Three Rivers, MA 01080

Sep 12, 2019 1:05 pm

The number one the window label is A-X7164. What left side (if facing window) crank would i need? Mine is stripped.

2 user uploaded images

4 Replies

Dave Sr. from SWISCO

Sep 19, 2019 7:02 am

I believe we can help you with this, but we need to see more of the operator. Can we have you upload a couple of more photos showing the operator from a bird's eye view? We's also like to see a photo showing the arm(s) of the part, and have you give us some measurements on it.

Home Owner from Three Rivers, MA 01080

Oct 1, 2019 2:27 pm

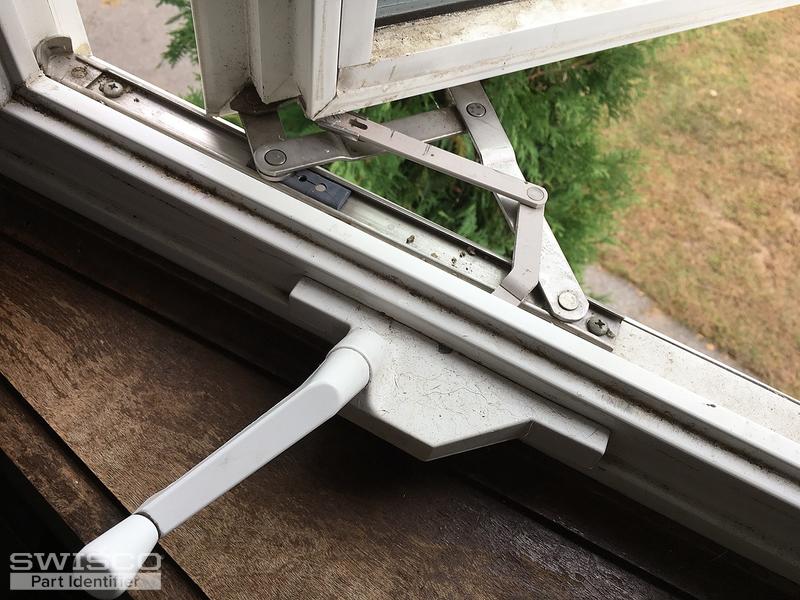

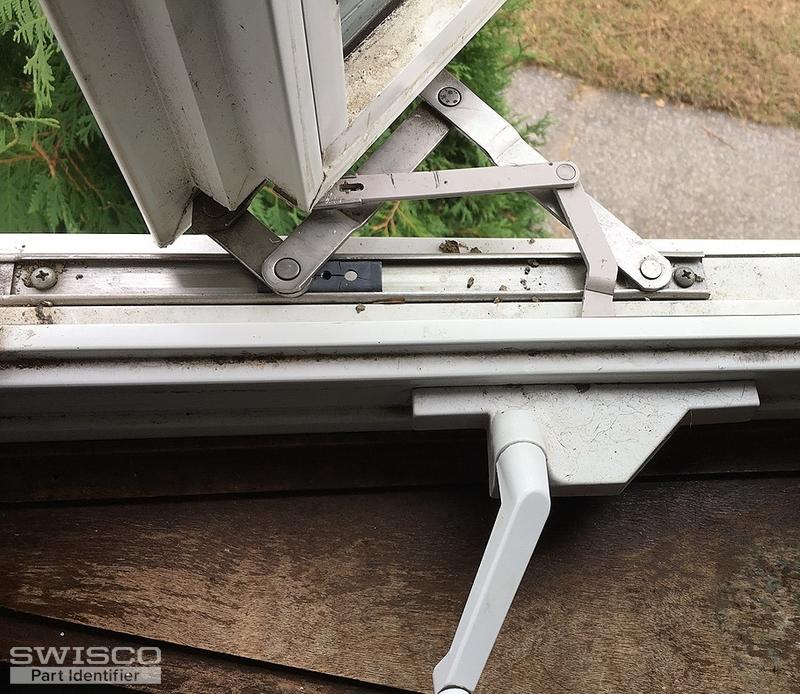

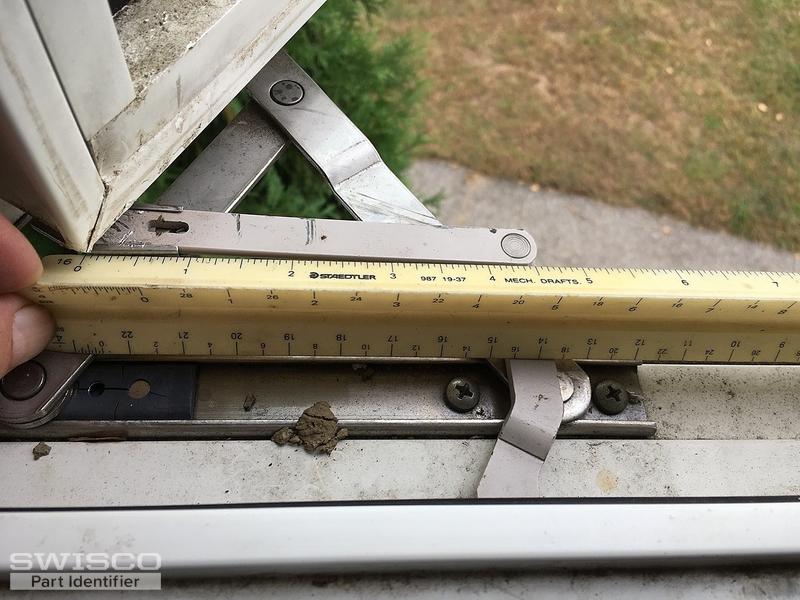

Hope these pics help

4 user uploaded images

Dave Sr. from SWISCO

Oct 2, 2019 8:36 am

Huh... this one is a bit weird. The first thing to come to mind was our 39-089, but I can't quite tell if your gear arm has that same "Z" shape. It also looks like your gear arm has an offset, but I actually don't think that will matter too much.

Look over our photos for the 39-089 and let me know if this matches up. I know it seems like an obscure detail, but that "Z" shaped arm is an important detail.
