BB Windows SER-780 Flange 2002 3 x 5 ft

Start a new Discussion

Home Owner from Archer, FL 32618

Dec 14, 2020 1:30 pm

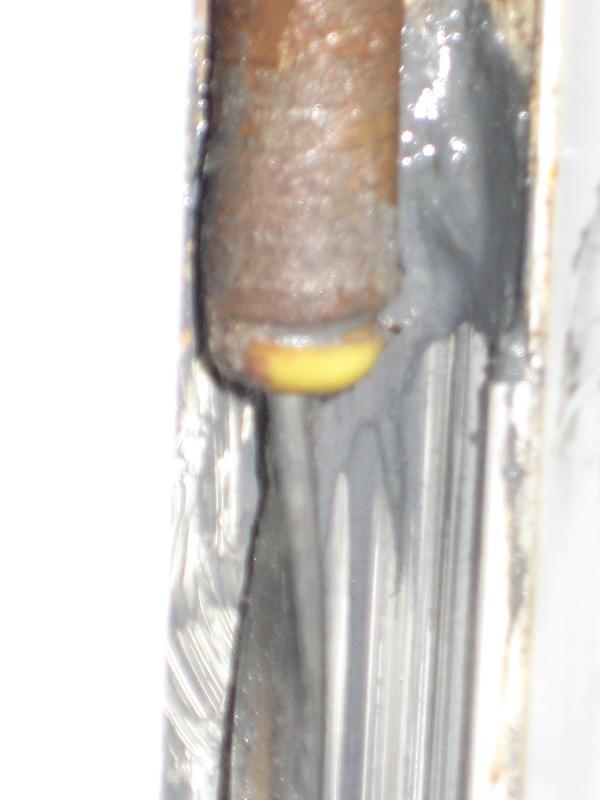

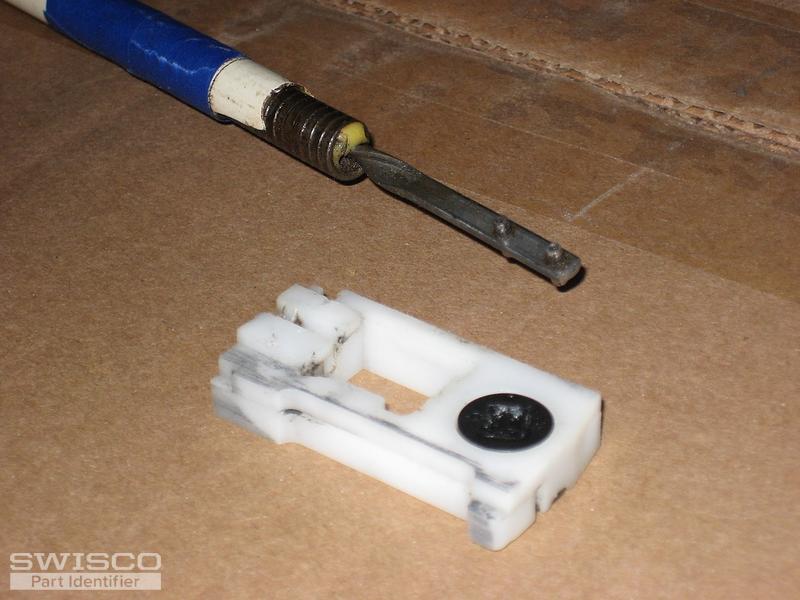

I have 10 windows, 8 are 3x5 ft I need pivot shoes and spiral tubes which are 29 3/4" long with yellow plastic insert.

Richard

5 user uploaded images

6 Replies

Casey from SWISCO

Dec 16, 2020 10:11 am

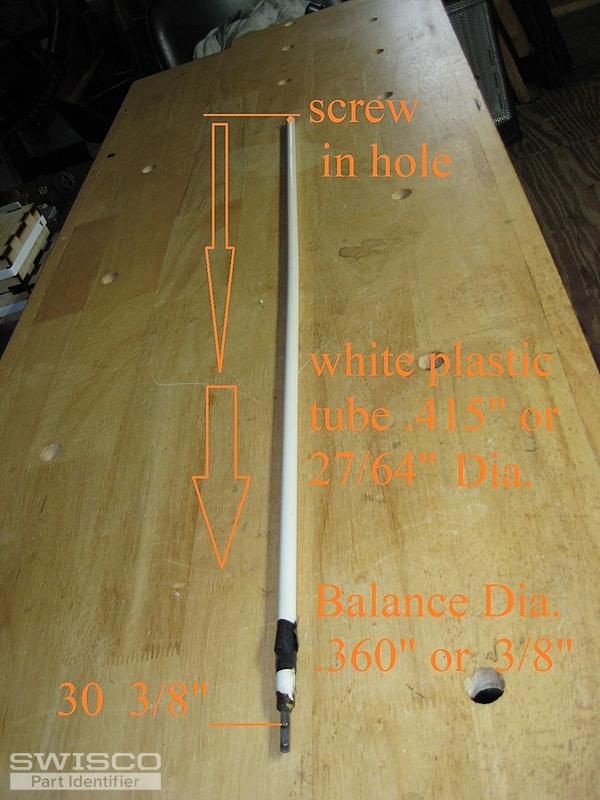

Hi Richard, thanks for writing in. In regards to your spiral balance, I will need to ascertain the diameter of the outer tube. I'd also like to confirm the length of the outer tube - when determining this dimension be sure to measure only the outer tube.

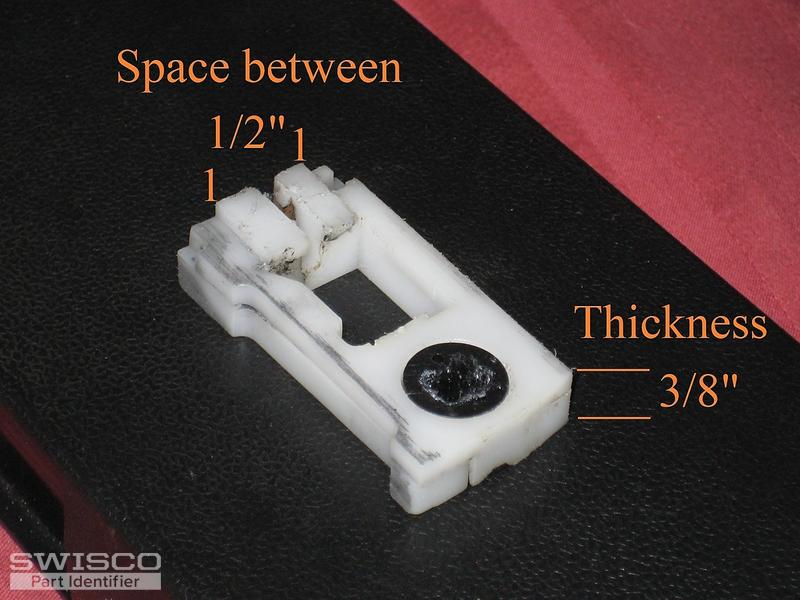

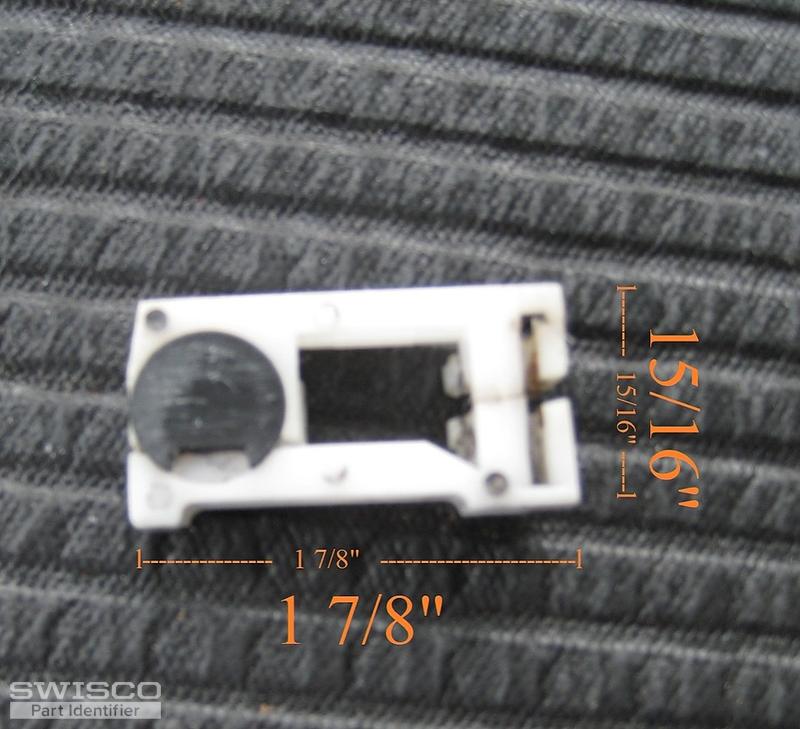

For your pivot shoe, can you show it to me removed from the window and tell me its width and thickness? Many thanks!

Handy Person from Archer, FL

Jan 26, 2021 5:35 pm

I am posting three more photos for measurements you requested for Discussion D198419. Do I call or wait for a call?

3 user uploaded images

Tom from SWISCO

Jan 27, 2021 10:28 am

Thanks for getting back to us, Richard. We respond to you right here in this thread. This is where our correspondence will take place in its entirety.

For your spiral balance, I recommend the Series 900, and for the shoe I recommend the 15-045. Please review the information we show for these two products and let me know if you agree, or if you have any follow-up questions.

Handy Person from Archer, FL

Jan 28, 2021 11:40 am

Tom, I have reviewed the info you said and I need -
#1 75-006 charging tool
#16 Series 900 30" spiral balance with yellow plastic end
#16 Pivot shoe 15-045

Tom from SWISCO

Jan 28, 2021 1:22 pm

Great! All orders can be placed on our site at your convenience. Let me know if you had any other questions.
