BF Rich Cabernet

A handy person from Westminster MD says:

I just wanted to double check before ordering.

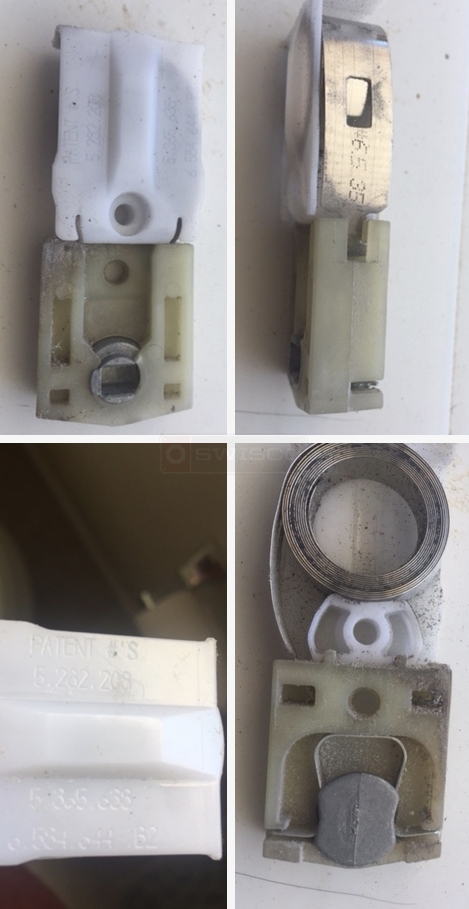

The photos below are from a BF Rich Cabernet double hung. (the unbroken side).

Looks like 6.5#/35"

The S160/165 have the same T end.

The other parts appear fine.

Coil assembly

Profile picture of Paul
Paul from SWISCO responded:

Your pivot shoe looks like our 15-228, which uses a 1/2" wide S160-6 coil spring and 15-150S single spring support. Look this hardware over and let me know what you think.

A quick learner from Westminster MD says:
It does. I will double check measurements this afternoon. I will order accordingly. THANKS. When BF Rich closed their doors I was worried I would be without support. You guys ROCK!
