BF Rich window parts

A home owner from Pennsylvania U.S. says:
Hello!

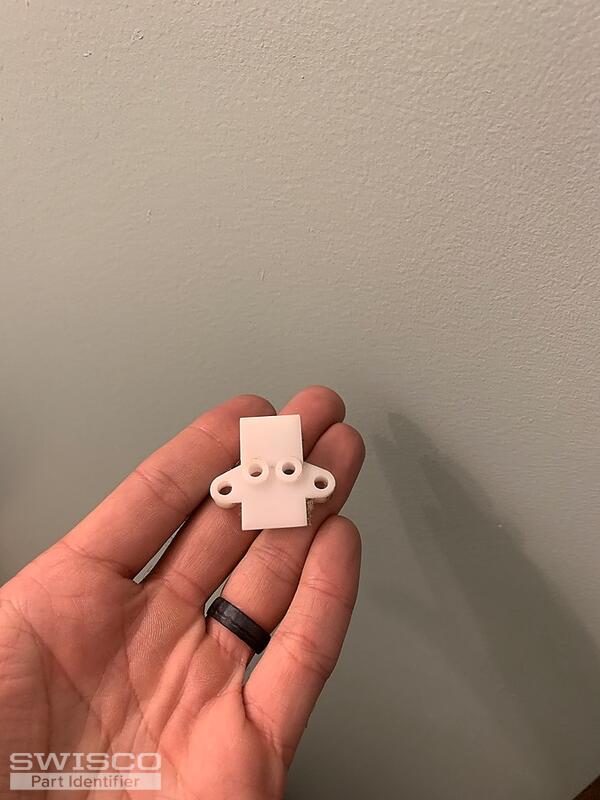

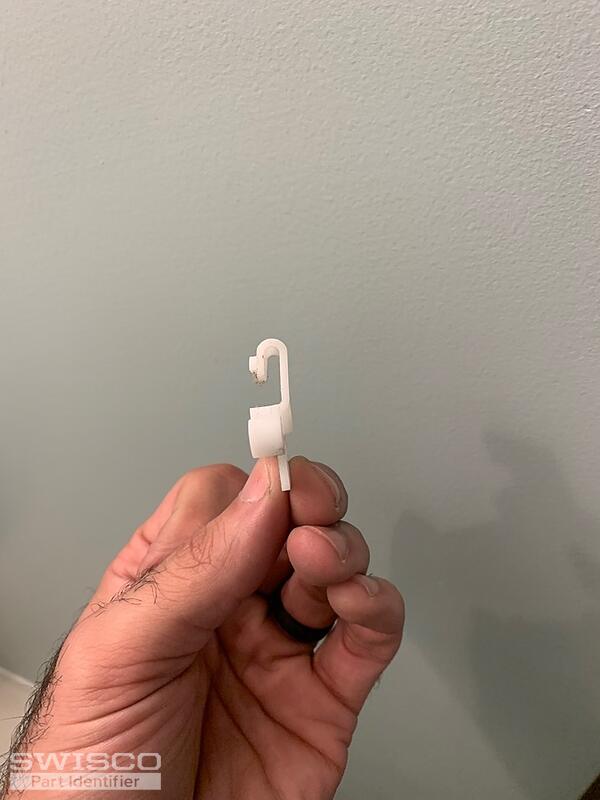

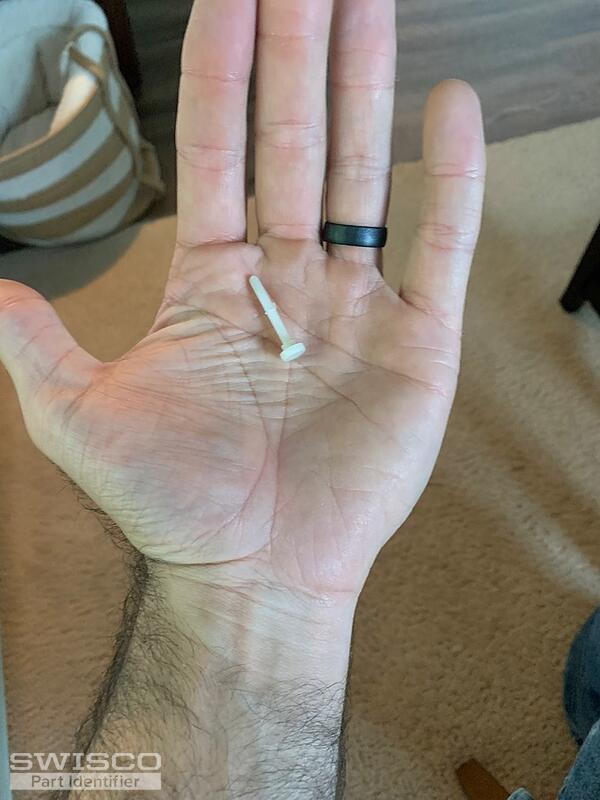

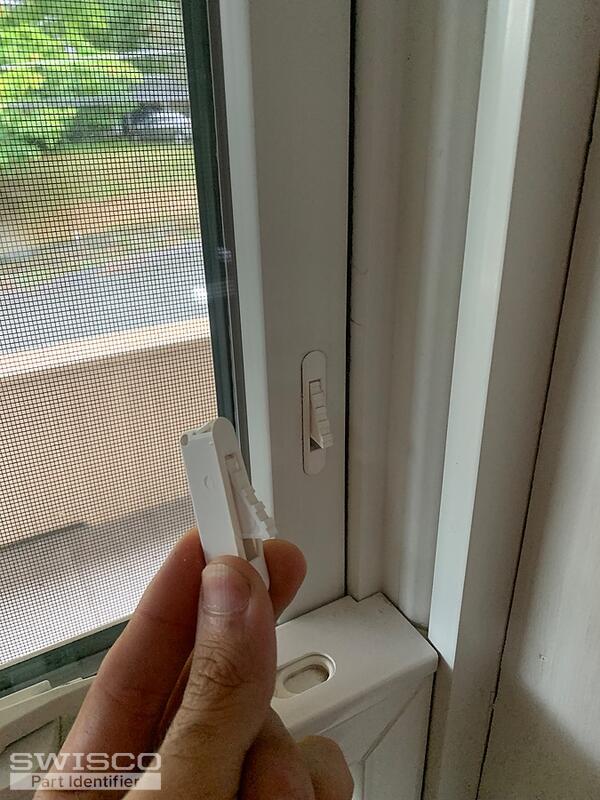

I'm hoping you can help me locate these parts for the windows in my house!
I also have the window sticker for the casement metal bracket slide if that would help!!

Thank you!
Jared
Thumbnail of the uploaded file named 028A8010-D296-403E-9D00-EA4AD4386CCB.jpeg
Thumbnail of the uploaded file named C4F346C9-4F21-470B-8E59-08262823CD72.jpeg
Thumbnail of the uploaded file named 9FA67548-A6D4-4158-A787-76A9032D3BC6.jpeg
Thumbnail of the uploaded file named B416EF5E-ABB8-4DEE-9B79-EF5067EEBBAE.jpeg
Thumbnail of the uploaded file named 20B7D689-D96D-4F2F-9911-6FF59656BD76.jpeg
Profile picture of Tom
Tom from SWISCO responded:

Hello, Jared. We sell almost all of the parts you show here, or at least we sell iterations. My recommendations are the 70-195 screen pin, 26-122 vent latch, and 39-448 tie bar guide.

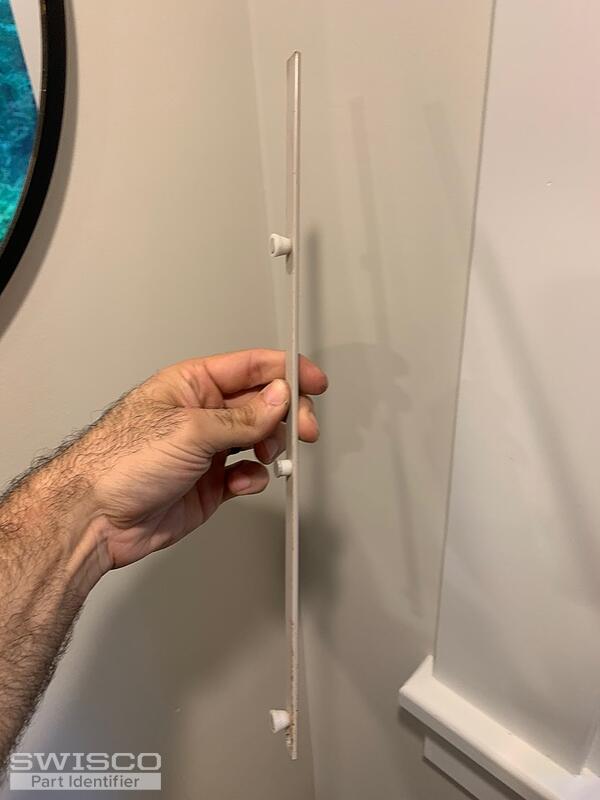

The tie bar itself is unfortunately giving me trouble. Yours is very, very short. The shortest tie bar we sell is our 38-949, at 10.9", but this comes with an interlock roller and a lock drive point, whereas yours has two cone rollers and a lock drive point. I don't believe they'll be compatible, unfortunately. Can you confirm its length?

In the meantime, review the other three parts I mentioned and see what you think.

Dimensions for the 70-195 window screen pin
Dimensions for the 70-195 window screen pin

Alternate image for 26-122
Alternate image for 26-122

Side view of 26-122
Side view of 26-122

Alternate view of 39-448 with dimensions
Alternate view of 39-448 with dimensions

A home owner from Hudson MA says:

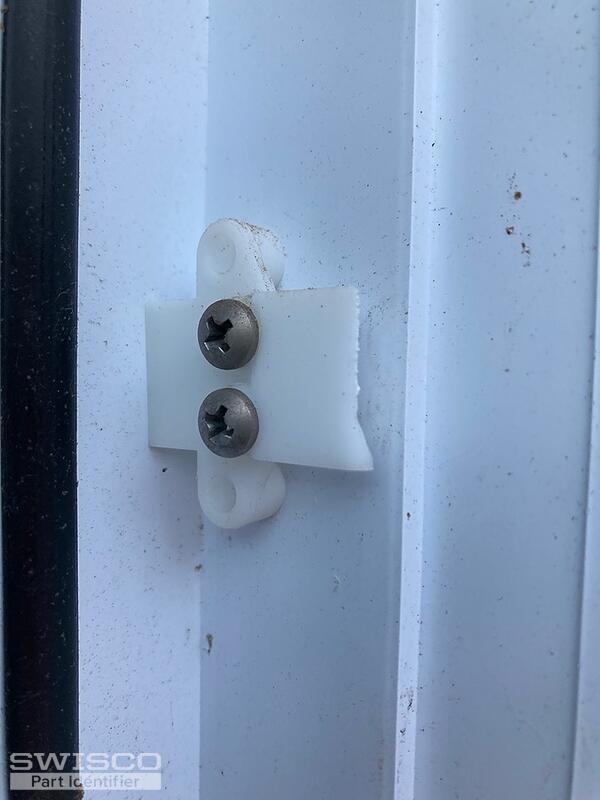

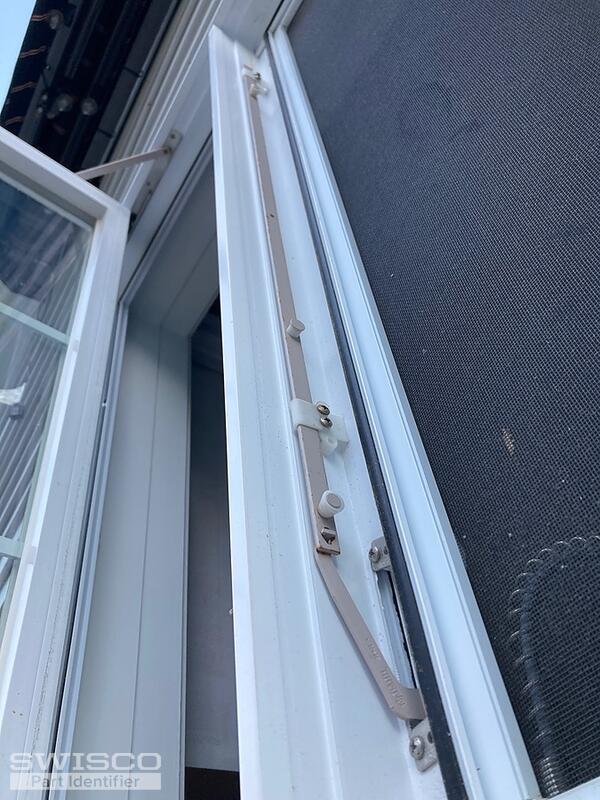

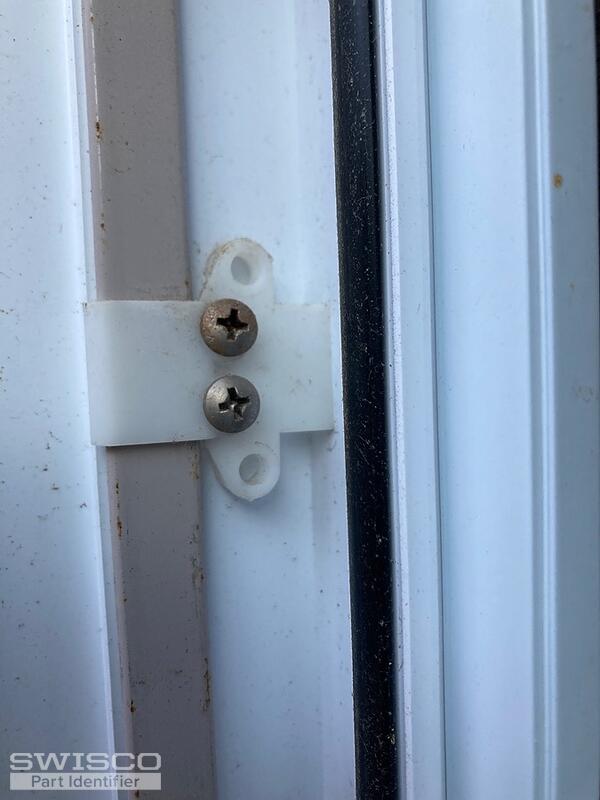

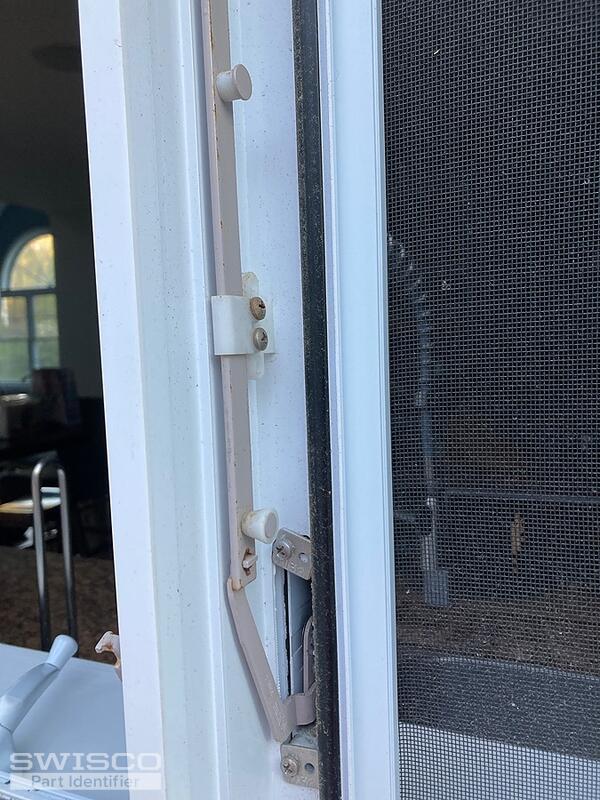

I have the same tie bar in the photo of this post with two cone rollers and a lock drive point. It measures 26 3/4in. Can you assist with a replacement part?

Thanks so much!!
Thumbnail of the uploaded file named IMG_1424.jpeg
Thumbnail of the uploaded file named IMG_1425.jpeg
Thumbnail of the uploaded file named IMG_1426.jpeg
Thumbnail of the uploaded file named IMG_1427.jpeg
Profile picture of Tom
Tom from SWISCO responded:

Thanks for reaching out to us. The only tie bar we have with a 26.9" measurement is our 38-954, which has two interlock rollers and one lock drive point. Could this possibly work for you? Give it a look and see what you think!

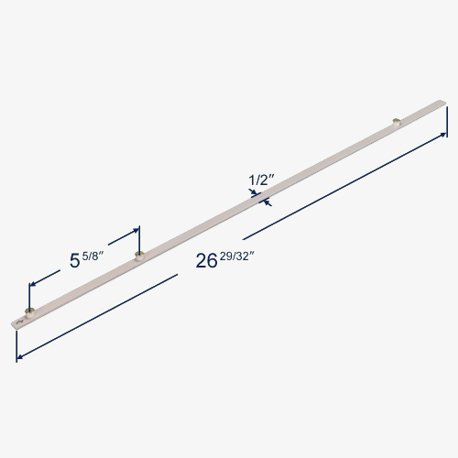

Dimensions for 38-954
Dimensions for 38-954
