BOTTOM TRAVEL

A contractor from VIRGINIA BEACH says:
November 28, 2017
I NEED THE ITEMS NECESSARY FOR THE BOTTOM TRAVEL OF THE DOORS ACROSS THE FLOOR.

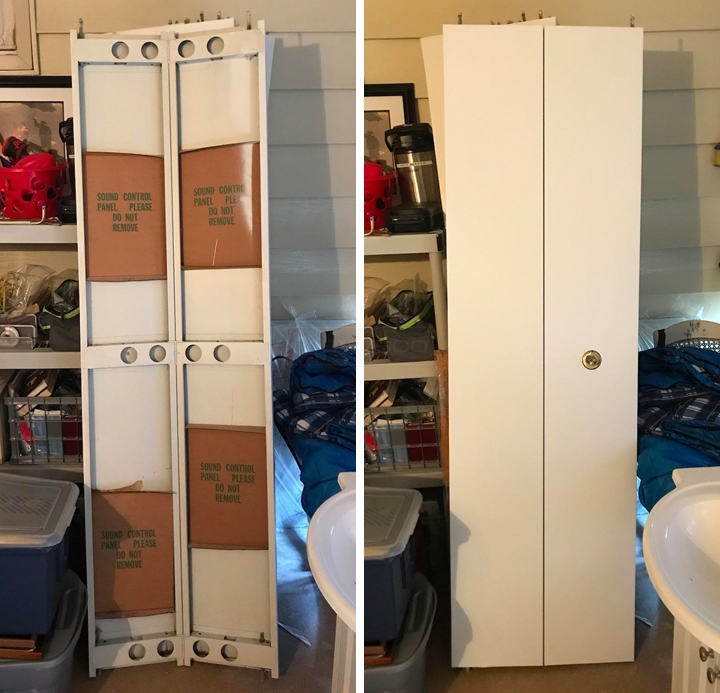

User submitted photos of bi-fold door hardware.
Profile picture of Paul
Paul from SWISCO responded:
December 1, 2017
I am leaning towards our 21-041 bifold track. Before we can confirm that, we would need to see some close up photos of your door guide pin, as well as the top and bottom pivot pins.
A contractor says:
December 1, 2017
Pics

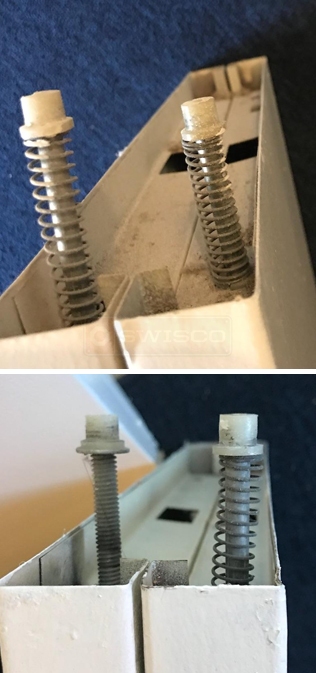

User submitted image of their closet hardware.
Profile picture of Paul
Paul from SWISCO responded:
December 5, 2017
Thank you. You have old Benchmark doors that use 21-002 bottom threaded pivot pins and 21-044 spring loaded guide pins. The tracks you can use are 21-401, 21-402, 21-403, or 21-404. The tracks come with 21-200 pivot brackets, but you will need 21-277 bumpers to help keep them close.
Bifold Track, 3' Opening
Bifold Track, 3' Opening
21-401
$8.71
Bifold Door Pivot Pin, Benchmark
Bifold Door Pivot Pin, Benchmark
21-002
$4.20
Bifold Door Top Pivot and Guide Pin, Benchmark
Bifold Door Top Pivot and Guide Pin, Benchmark
21-044
$3.66
Bifold Track, 5' Opening
Bifold Track, 5' Opening
21-402
$17.15
Bifold Track, 6' Opening
Bifold Track, 6' Opening
21-403
$18.57
Bifold Track, 4' Opening
Bifold Track, 4' Opening
21-404
$12.75
Bifold Track Bumper
Bifold Track Bumper
21-277
$2.07
Pivot bracket
Pivot bracket
21-200
$2.12
