BROKEN BALANCE SPRINGS

A home owner from LOCKPORT,IL says:
September 29, 2021

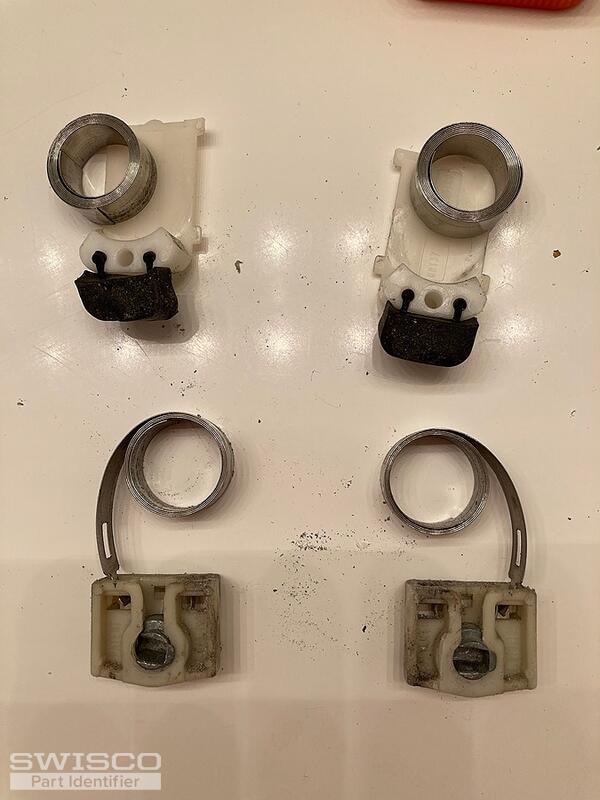

THESE BALANCE SPRINGS ARE OFF OF MY BATHROOM PULLOUT VINYL WINDOW.THE WINDOW WILL NOT STAY OPEN. IT SLAMS RIGHT DOWN.DO YOU HAVE ANY REPLACEMENT SPRINGS. I NEED LEFT SIDE AND RIGHT SIDE. THANK YOU TONY

Thumbnail of the uploaded file named IMG_0359.JPG
Thumbnail of the uploaded file named IMG_0361.JPG
A home owner from LOCKPORT,IL says:
September 30, 2021

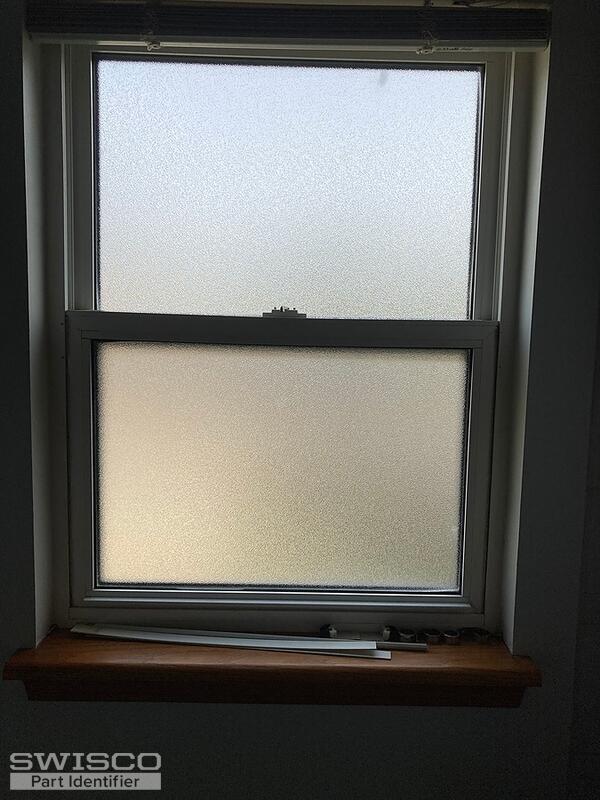

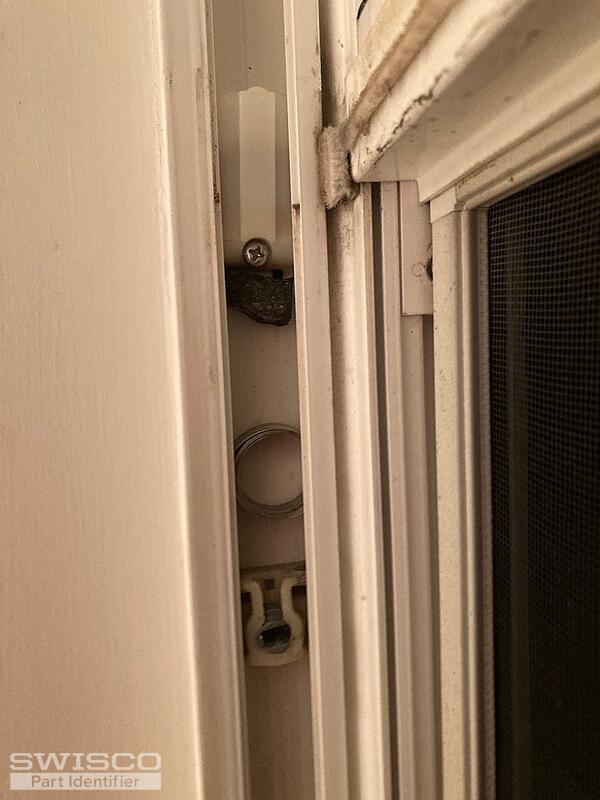

this is picture of bathroom window, thank you

Thumbnail of the uploaded file named IMG_0362.JPG
Profile picture of Lauren
Lauren from SWISCO responded:
October 5, 2021

Hello, thank you for posting!

Your pivot shoe resembles our 15-111 which is compatible with the Series 160 Coil Balances. The Series 160 Coil Balance have a 1/2" thickness. You can use the numbers stamped on the old spring to confirm the best Series 160 strength option.

Please let me know if you have any questions.
Pivot Shoe, 1/2" Thick
Pivot Shoe, 1/2" Thick
15-111
$2.44
