BSI 100 series balances - Amesbury Group

Contractor from 06830

Looking for balances for old Dynamic single hung windows

channel length 38 inches - 1/2 wide and 9/16 deep

part stamped on back 37DS45

Installed about 2001

Can you help me

Thanks

Frank

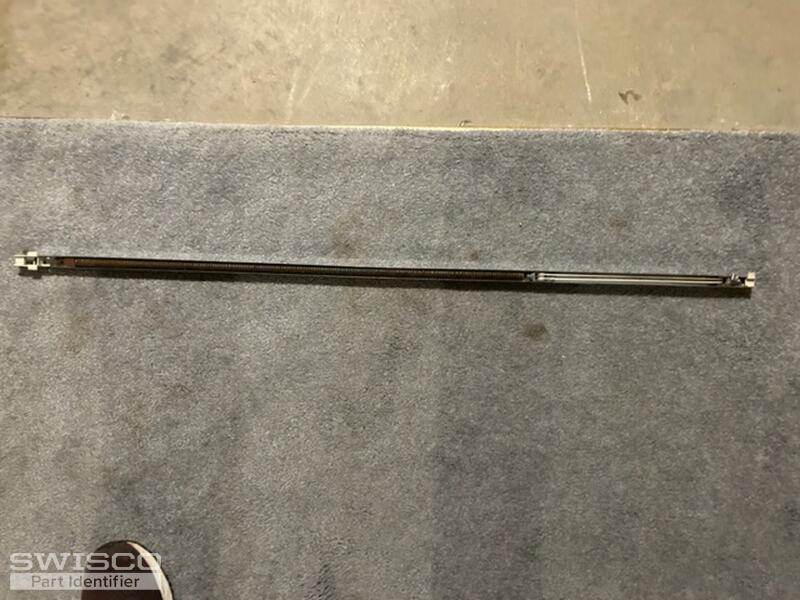

1 user uploaded image
10 Replies
Casey
Casey from SWISCO
SWISCO
Expert

Hello,

We can supply your replacement balances but it will need to be a custom order due to the DS code stamped on your balance. To get started, we'll need to see detailed photos of the top and bottom balance fittings to confirm the correct replacement series.

Also, please confirm the number of balances that you need, with the minimum being two. Thank you.

Contractor from 06830
Hi Casey
Photos attached - we would do 2 to start and then owners will decide how many more they want to do
Thanks for your help
Frank

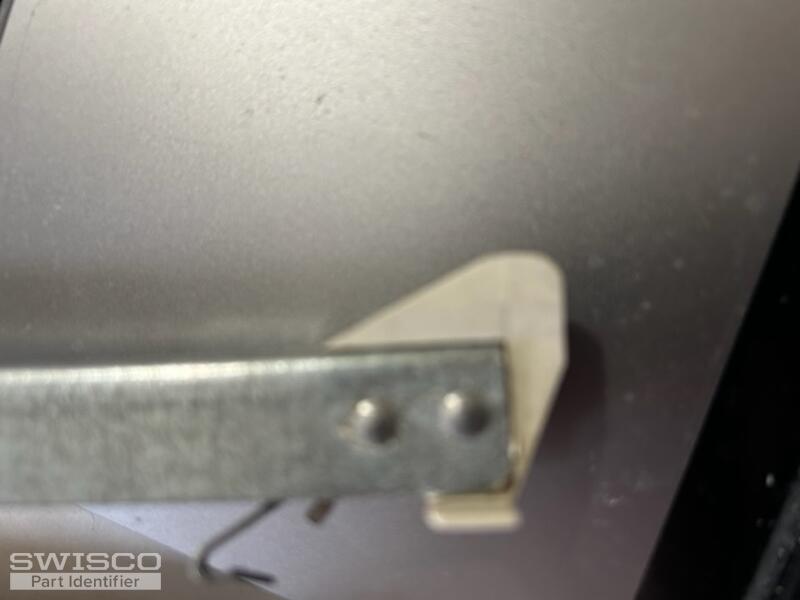

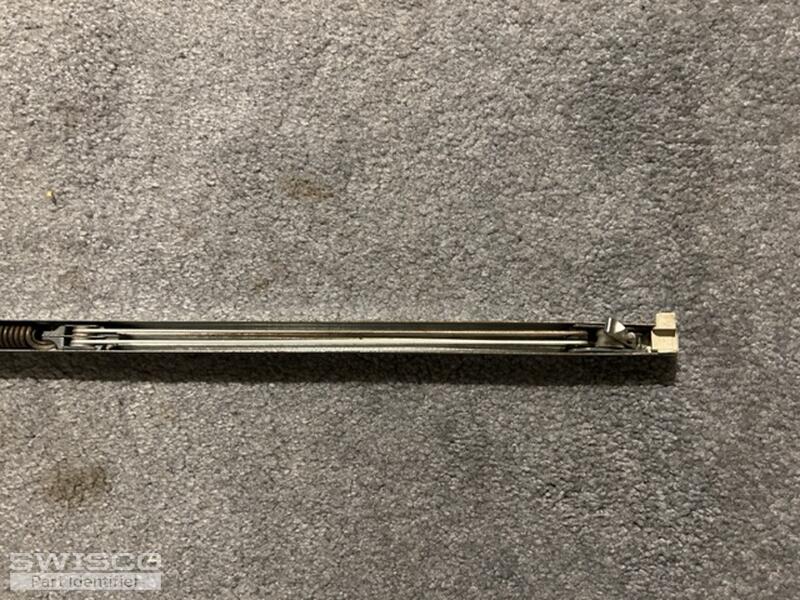

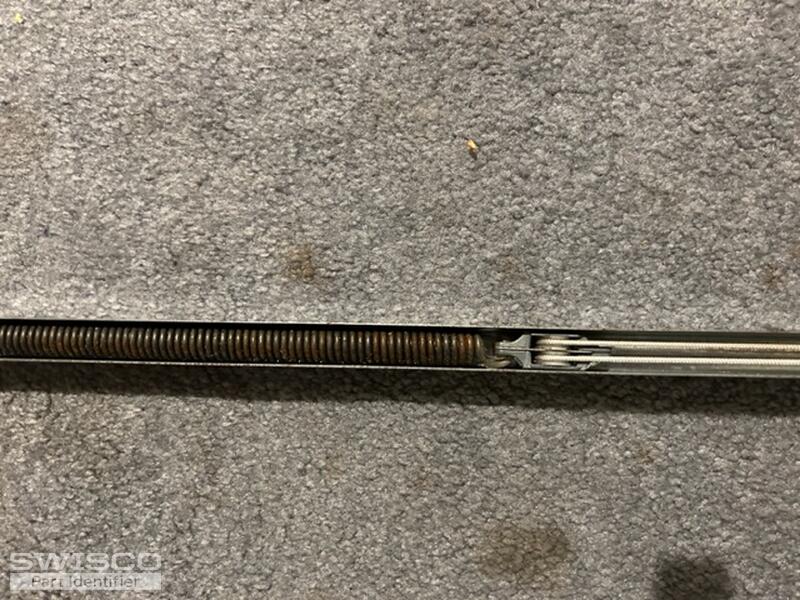

5 user uploaded images
Casey
Casey from SWISCO
SWISCO
Expert

Thanks for getting back to us. With this combination of attachments, you could have either the S380 or S385 channel balance. You’ll need to measure as shown below to confirm the correct replacement. The Series 380 has a 1" bottom attachment, and the Series 385 has a 1-3/32" attachment. Once we determine the shoe depth, we'll be able to send over an order link and price quote.

Comparison of the S378, S380 and S385 balance shoes.
Comparison of the S378, S380 and S385 balance shoes.

Contractor from 06830
Ok, will do
Might take a few days to get to the house
Thanks
Frank

Casey
Casey from SWISCO
SWISCO
Expert

No problem. We'll be here whenever you're ready to proceed. Just let us know if you need anything else in the meantime.

Contractor from 06830
Hi Casey

Measure 1 inch for the shoe
picture attached

Thanks

Frank
1 user uploaded image
Casey
Casey from SWISCO
SWISCO
Expert

Great, we just sent over an order link and price quote for the balances you requested. Take a look and let us know if you need anything else. Thank you!

Contractor from 06830
Hi Casey

Price for 2 pair or 2 units?

Thanks

Frank
Casey
Casey from SWISCO
SWISCO
Expert

The price is for two balances or a single pair. Please let us know if you have any other questions.
