BSI 2120 Channel Balance 22"

Handy Person from Woodland Hills, CA

Apr 15, 2020 11:50 am

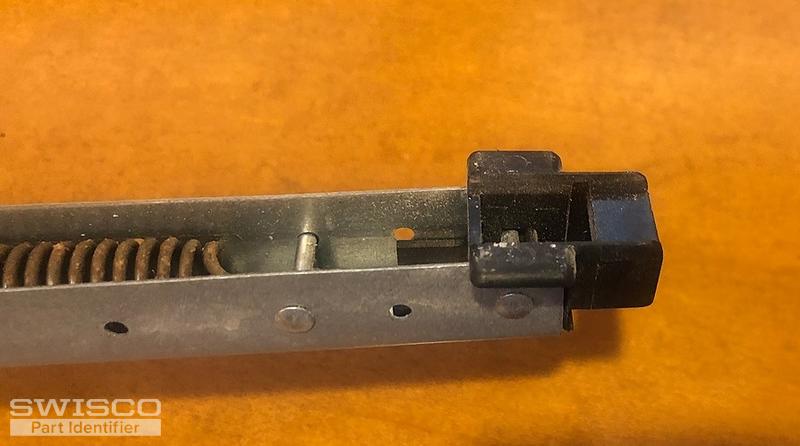

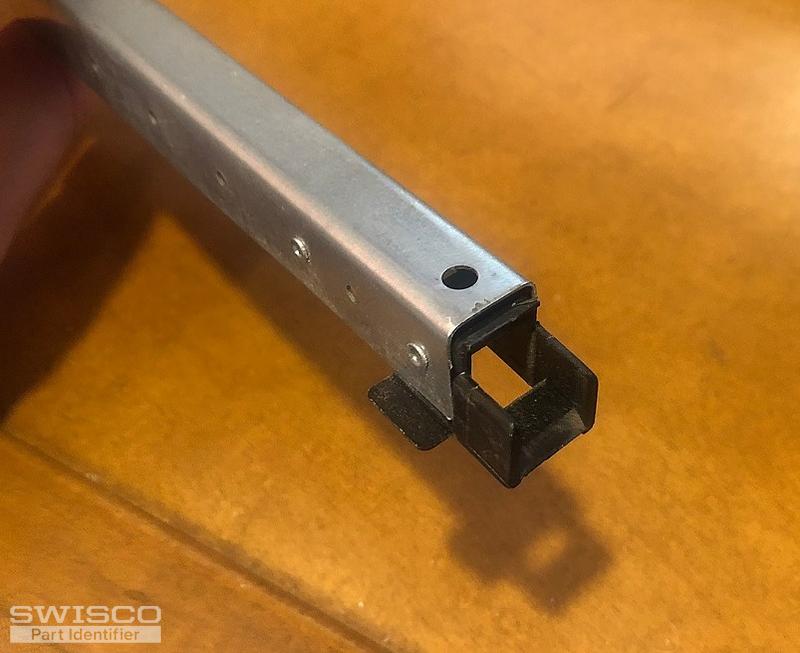

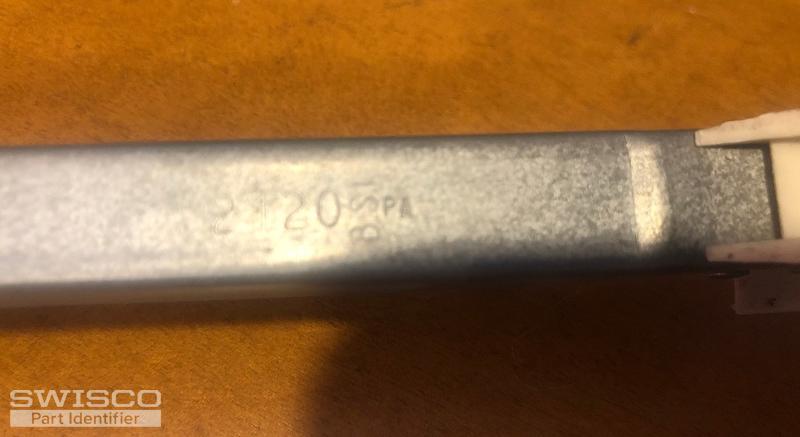

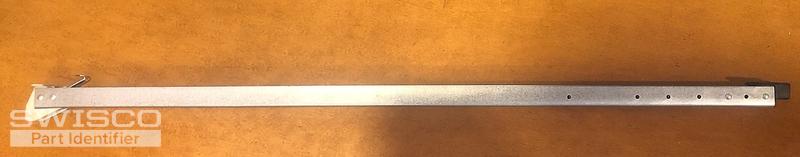

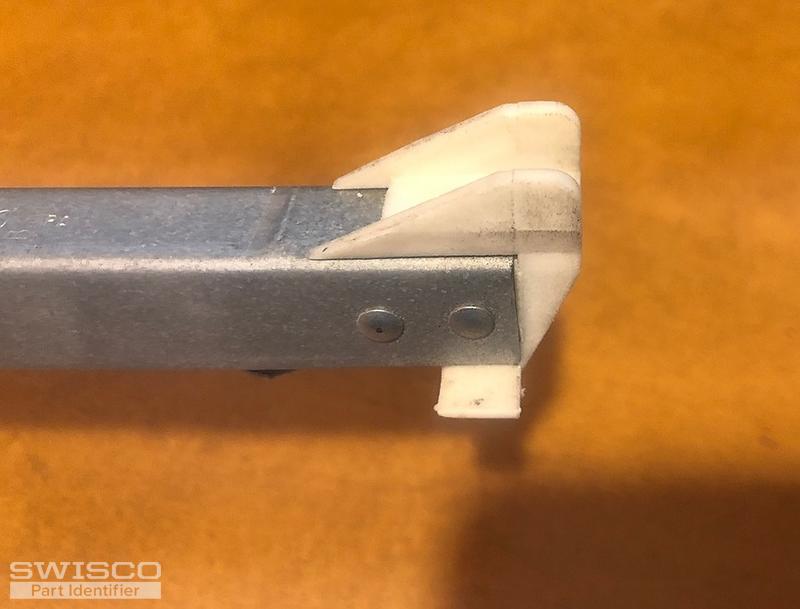

This is a BSI 2120 channel balance that is 22 inches long. I can't figure out which top part this is. Thank you for your help!

5 user uploaded images

4 Replies

Bob from SWISCO

Apr 17, 2020 12:23 pm

Thanks for posting. This looks like either an S380-22 or S385-22. The only difference between these two types of balances is the depth of the bottom nylon shoe, or the 'heel-to-toe' measurement, so compare both with your old hardware to see what matches best. You will need a stamp option of 2120.

Handy Person from Woodland Hills, CA

Apr 17, 2020 3:56 pm

Thank you. Neither of these look right to me, however. My top section is squared off whereas both of these options have an angled or wedge looking top. Does that make a difference?

Bob from SWISCO

Apr 20, 2020 8:57 am

The top piece here can still be replaced by the one used on the Series 380 and Series 385 (our 19-005); despite the differences, they function essentially the same way.
