BSI 2430X Channel Balance

A quick learner from Arkansas says:

Metal length 25", inside depth 1/2", channel width 1/2".

Spring length end to end 12 7/8".

Window frame clip 7/8".

Plastic end (clip end) 1" tall.

Plastic end (clip end) 1 3/16" long.

Plastic end (none clip end) 1 1/4" not

including small extensions inside channel."

If you prefer I can ship you a channel Balance

for exactness.

thank you,

Don

Thumbnail of the uploaded file named DSC02914.JPG
Thumbnail of the uploaded file named DSC02916.JPG
Thumbnail of the uploaded file named DSC02920.JPG

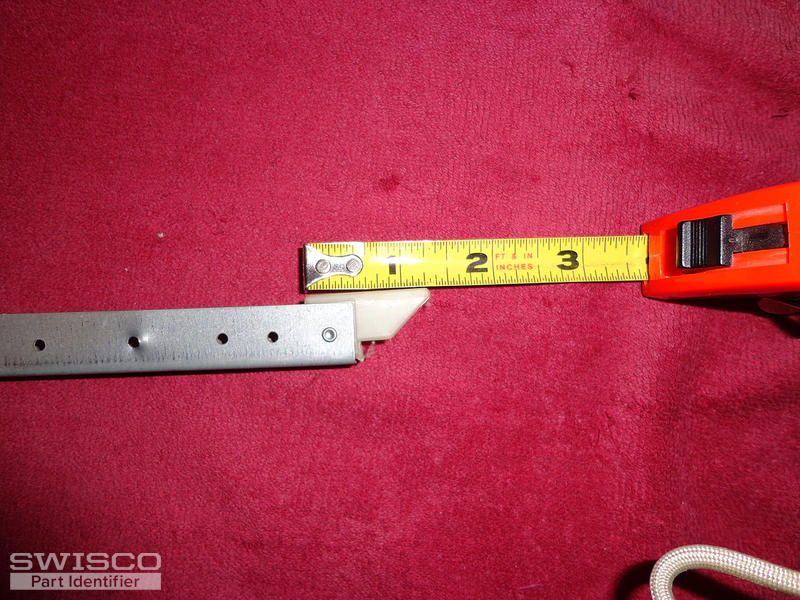

Thumbnail of the uploaded file named DSC02921.JPG

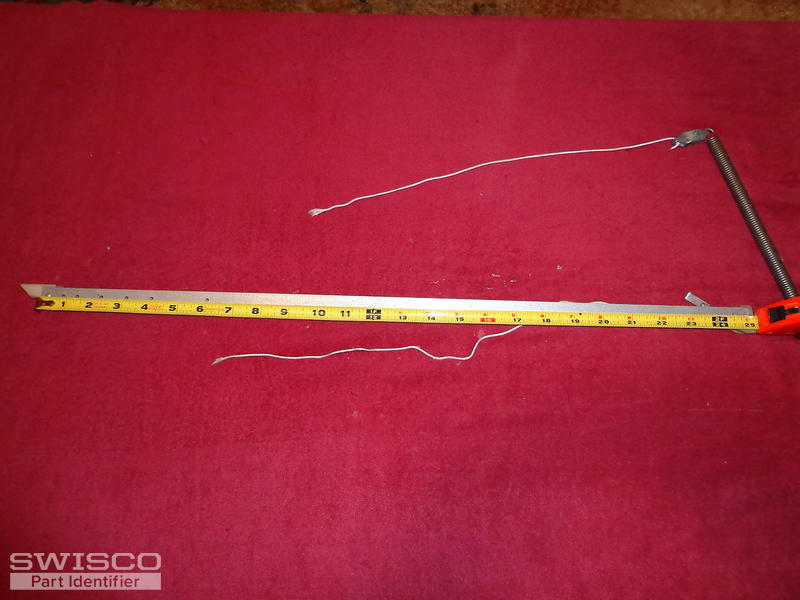

Thumbnail of the uploaded file named DSC02928.JPG
Profile picture of Casey
Casey from SWISCO responded:

Hello,

It looks like you have either our S351-25 , with a 15-002 bottom attachment, or S390-25 , with a 15-001 bottom attachment. Take a look at the image below to determine which balance you'll need. You'll also need a 2430 spring strength option for your replacement balances. Thank you!


Comparison of the S351 and S390 balance shoes.
Comparison of the S351 and S390 balance shoes.
A quick learner from Arkansas says:
I have included another image of the bottom end you refer to, and others. How did the top end plastic piece work out?

I can ship you a balance if needed.

Don
Thumbnail of the uploaded file named DSC02929.JPG

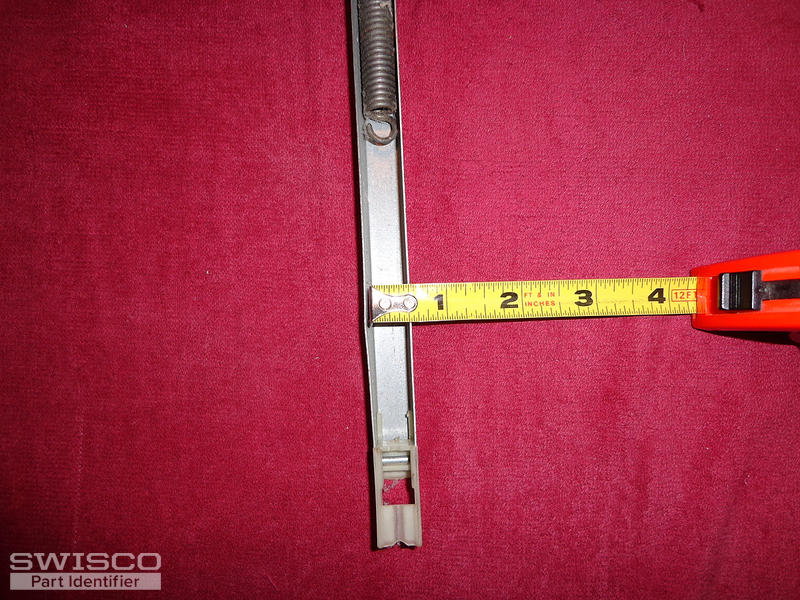

Thumbnail of the uploaded file named DSC02912.JPG

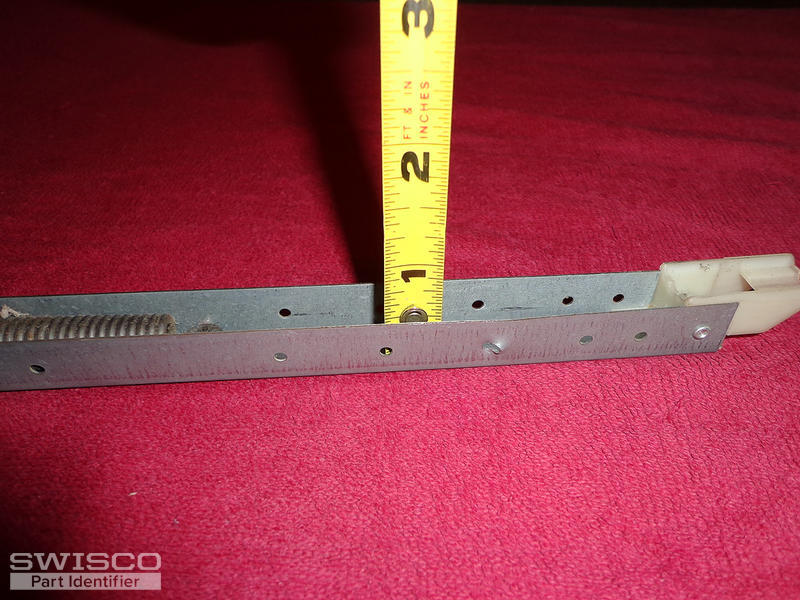

Thumbnail of the uploaded file named DSC02913.JPG

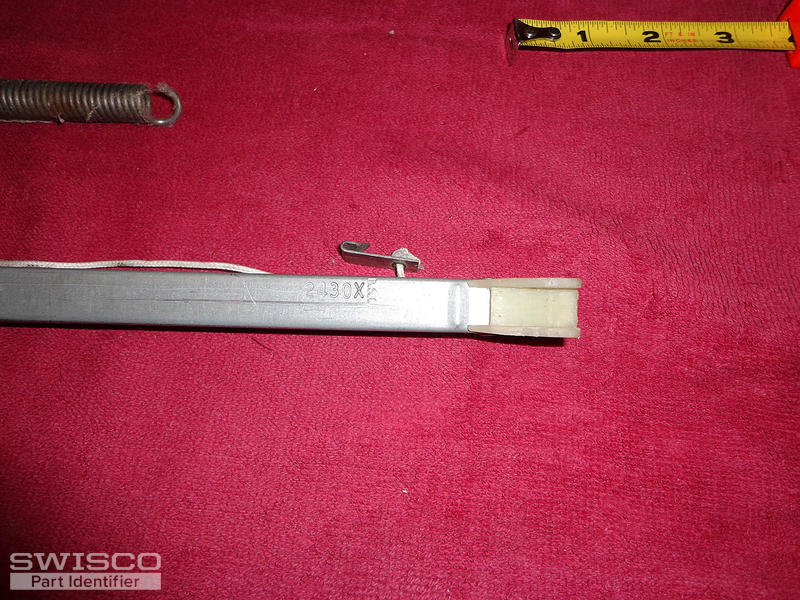

Thumbnail of the uploaded file named DSC02923.JPG
Thumbnail of the uploaded file named DSC02925.JPG
A quick learner from Arkansas says:

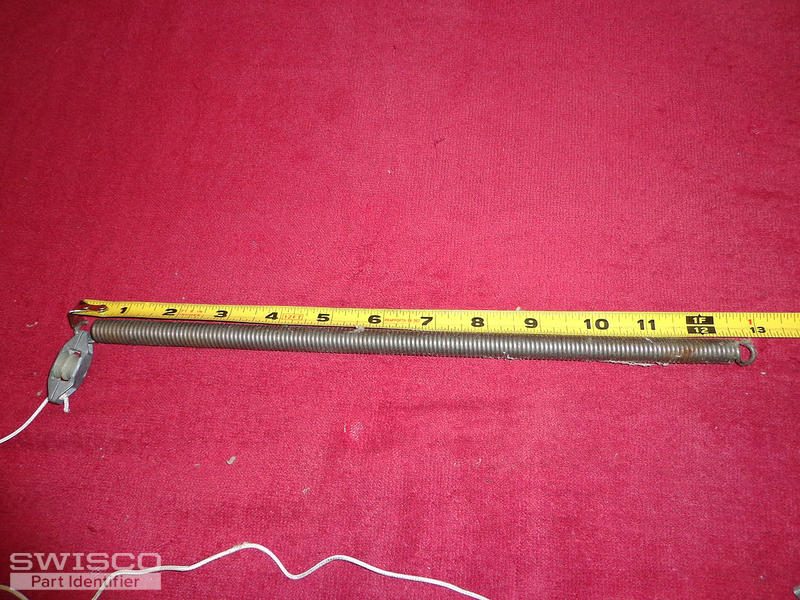

I measured the spring and it is 12" end to end before
the spring end (ears) are bent up for anchoring.
Profile picture of Casey
Casey from SWISCO responded:

You'll need to confirm that the measurements match up, but it seems like you would need our S351-25 with a 2430 strength option. You'll just need to confirm that the bottom attachment has the same 1" depth, which we can't confirm based on photos.

A quick learner from Arkansas says:

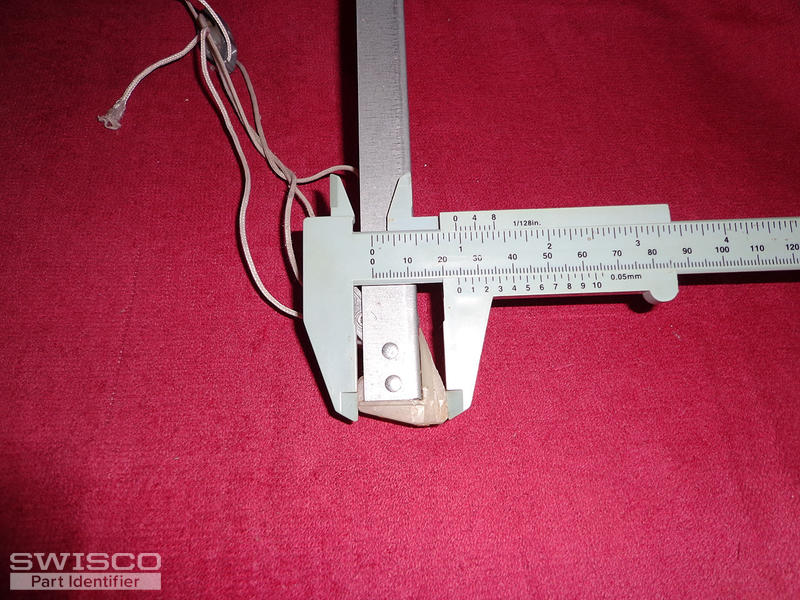

I sent you a picture of a micrometer measuring the bottom end of what looks to be the 15-002 measuring 1 inch. Based on this I will agree with the S351-25 , with a 15-002 bottom attachment.

I'll require 14 balances.

thank you,

Don

Profile picture of Casey
Casey from SWISCO responded:

Great, you can place your order directly on our website or give our customer service department a call at 856-317-6263 for assistance.

A quick learner from Arkansas says:
Received channel Balances Today, Friday Mar 15. They are an exact replacement. Began installs.
Thank you...

Don
