I need to replace the channel balances on my two non-tilt windows. They are in a condo that was built in about 1984.
The balances are marked "27C B.S.I". The metal channel measures 28" long. The two bent-up channel sides are about 0.632", and the width is about 0.562".
Your Series 390 seems to match; my shoe depth measures 1.11 inch after 38 years of wear.
I do not know what weight range I need. Does the "27C" imply a weight capacity?
The balances are marked "27C B.S.I". The metal channel measures 28" long. The two bent-up channel sides are about 0.632", and the width is about 0.562".
Your Series 390 seems to match; my shoe depth measures 1.11 inch after 38 years of wear.
I do not know what weight range I need. Does the "27C" imply a weight capacity?

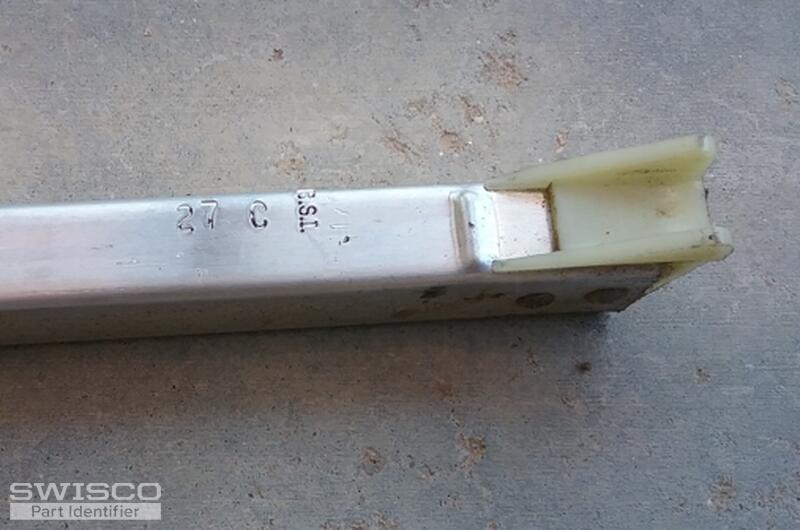

![BSI_ChannelGuide_27C_Marking](images/pictures/2022/07/578829.jpg)

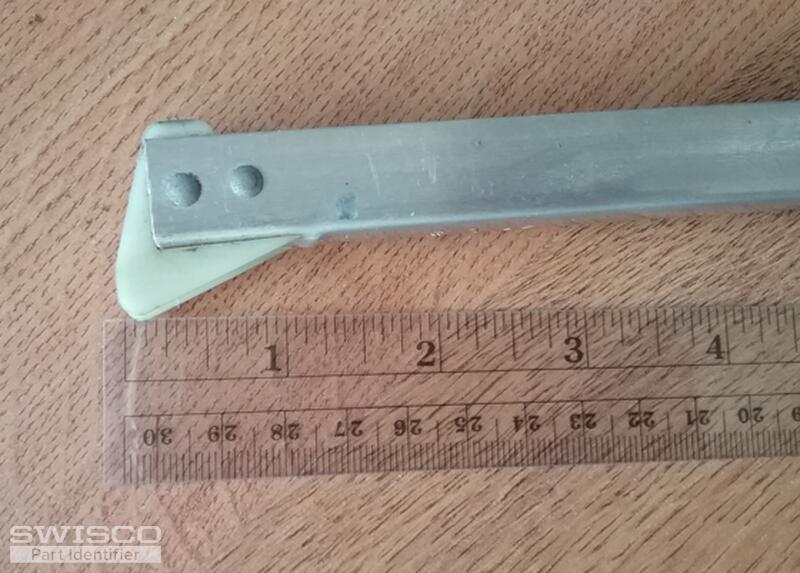

![BSI_ChannelGuide_27C_Shoe](images/pictures/2022/07/578830.jpg)

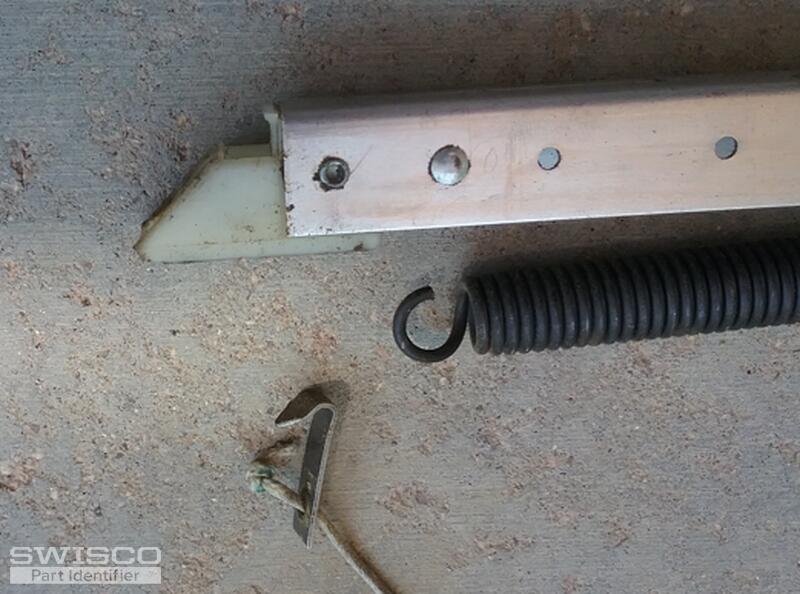

![BSI_ChannelGuide_27C_Top](images/pictures/2022/07/578831.jpg)
