Bad bottom casement window hardware

Question

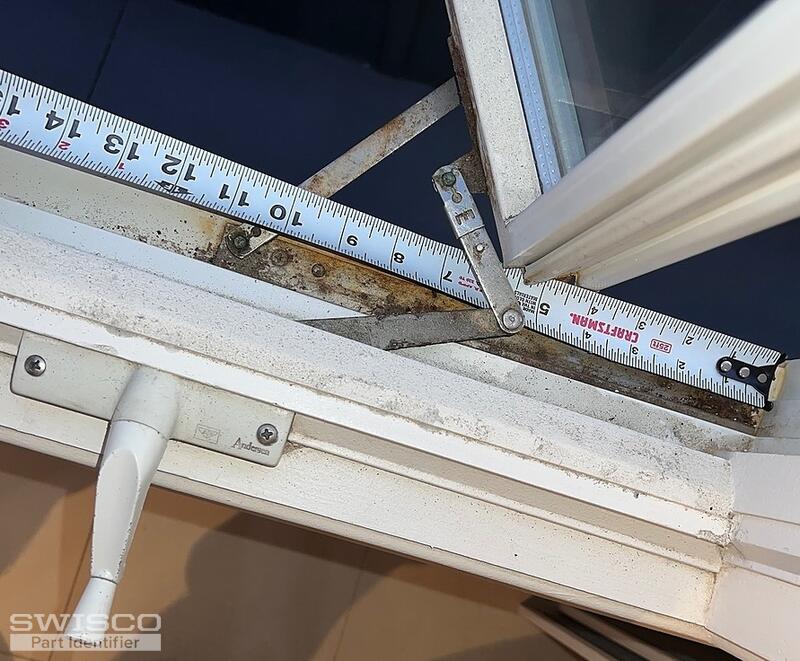

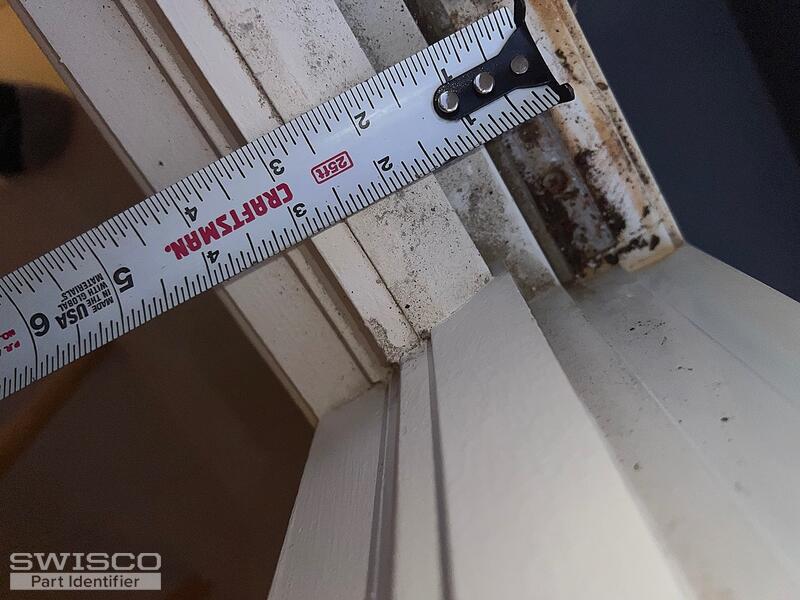

Left hand and right hand opens. Need Anderson crank, brackets, bottom of the window fulcrum/pivot bracket, and bracket that goes in window case.

Casey · Accepted Answer

Hello,

Your hinge is similar to the 36-048 set. Note that ours has a 10" long base, while yours looks closer to 11". Ours can still work since you'd be replacing the top and bottom hinges, but the range that the window opens may be slightly affected.

Detail of 36-048

As for the operator, compare the Andersen 39-146 and 39-147 to yours. We offer the 39-160 and 39-161 brackets, as well as the 39-286 handle used with these operators. Thanks for posting!

Dimensions for 39-146
