Balance 26 4 AS Caldwell : SWISCO.com

Quick Learner from scappoose, OR

Apr 28, 2021 9:28 pm

Need one for each side, complete

6 Replies

Emily from SWISCO

Apr 29, 2021 9:25 am

Hi there!

If you want us to identify the balance you have, we'll need you to remove an undamaged balance with the end attachments intact to compare to our inventory.

Quick Learner from scappoose, OR

Apr 29, 2021 2:43 pm

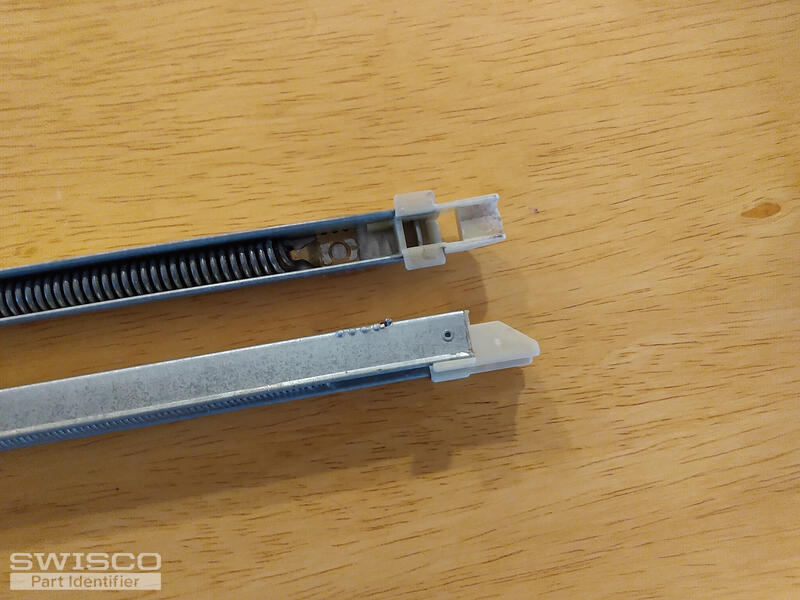

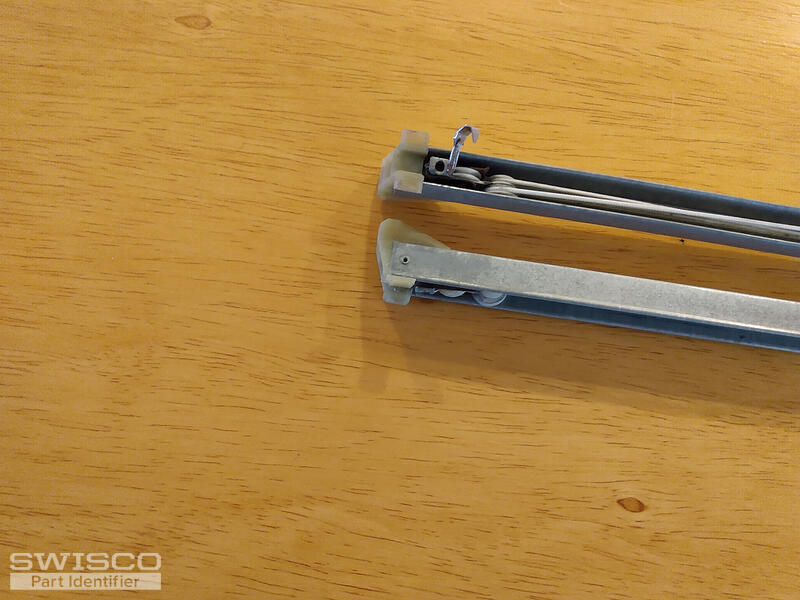

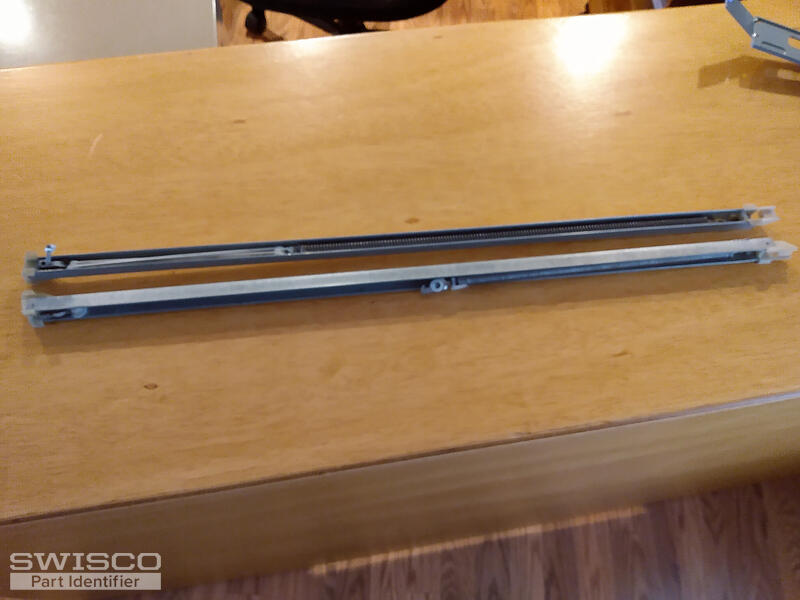

I have attempted to attach photos of each end and one of the whole length. I am not too computer literate, so I hope they are there for you to view

3 user uploaded images

Emily from SWISCO

Apr 30, 2021 8:46 am

Thank you for the additional photos!

With this combination of attachments, you could have either an S380 or S385 channel balance. You’ll need to measure as shown below. The Series 380 has a 1" bottom attachment, and the Series 385 has a 1-3/32" attachment. You'll also need a spring strength option of 2640.

When measuring your balance, make sure to only measure the metal channel. Your stamp is 2640 which means your metal channel should be 27 inches.

If you have any further questions just let us know!

Comparison of the S378, S380 and S385 balance shoes.

Quick Learner from scappoose, OR

Apr 30, 2021 6:14 pm

Your posting and system is awesome. I have never had such help from any other website, and you have been bery helpful and detailed. My balances are the 385 part, and I will go back on your website and order 2 of them. I watched a video that shows how to replace them. It has all been a very good experience. Thank you!

Emily from SWISCO

May 3, 2021 9:26 am

Thank you so much for your kind words! It was truly our pleasure to help you find what you need and we're so happy your experience was positive!

If you have any future hardware questions please feel free to reach out and let us know. We'd be happy to help.
