Balance

A quick learner says:
For window
Thumbnail of the uploaded file named EE83D64D-848A-42E3-827C-B6D7053AC9C3.jpeg
A quick learner from Bedroom says:

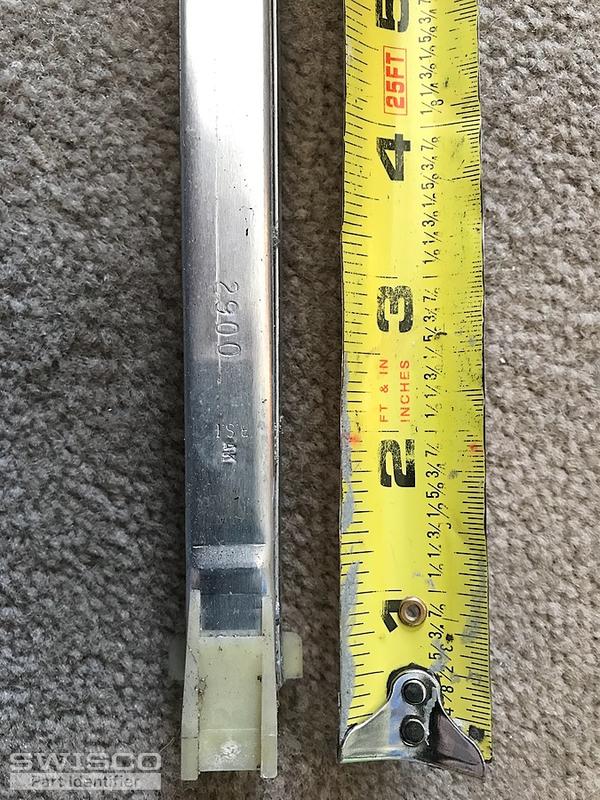

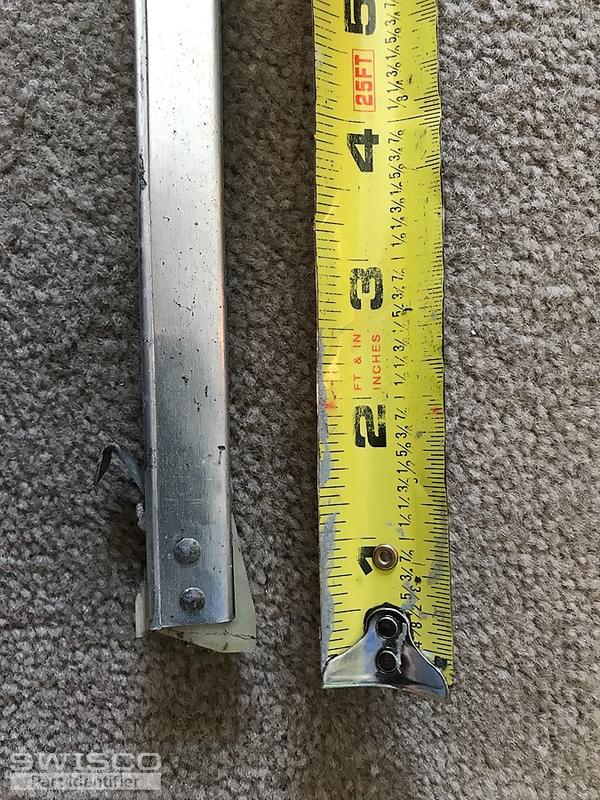

More pics
Thumbnail of the uploaded file named 199EAEFE-2F07-4AF7-8EB3-9C1045658C97.jpeg
Thumbnail of the uploaded file named 659BA53F-00DF-4FE3-80FE-8BA31E1E03B6.jpeg
Thumbnail of the uploaded file named EF2B34B0-AAAA-4B71-ABE6-22489AEA114D.jpeg
Thumbnail of the uploaded file named A73AE8AF-3351-4748-B7BC-F025C02B45B5.jpeg
Profile picture of Casey
Casey from SWISCO responded:

With this combination of attachments, you could have either an S380-30 or S385-30 channel balance. You’ll need to measure as shown below. The Series 380 has a 1" bottom attachment, and the Series 385 has a 1-3/32" attachment. You'll also need to weigh your sash to determine which option you'll need. There is a chart on the product page that explains how to choose your option based on the sash weight.

Thank you and let us know if you have any other questions or concerns.



1
