Balance

A contractor from Medford Ma says:
April 5, 2022

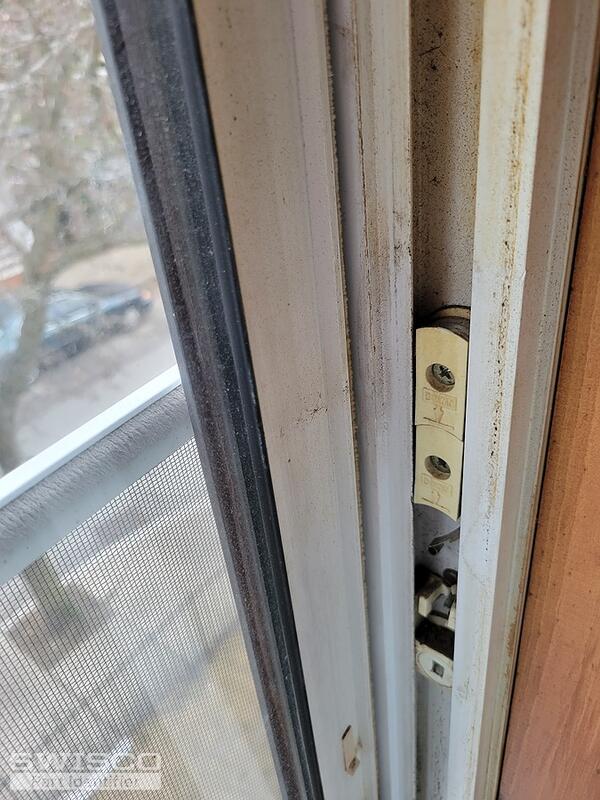

both balances have snapped. The window is at least 20 years old and is mechanically fastened vinyl. The window measurement is 39.25" x 60.25".
Thumbnail of the uploaded file named 20220309_083230.jpg
Profile picture of Lauren
Lauren from SWISCO responded:
April 7, 2022

Hello, thank you for posting,

Unfortunately I am not able to get a clear enough view of the pivot shoe from this angle. Are you able to remove the balance assembly from the window for us to further review? Thank you!
A contractor from Medford Ma says:
April 19, 2022

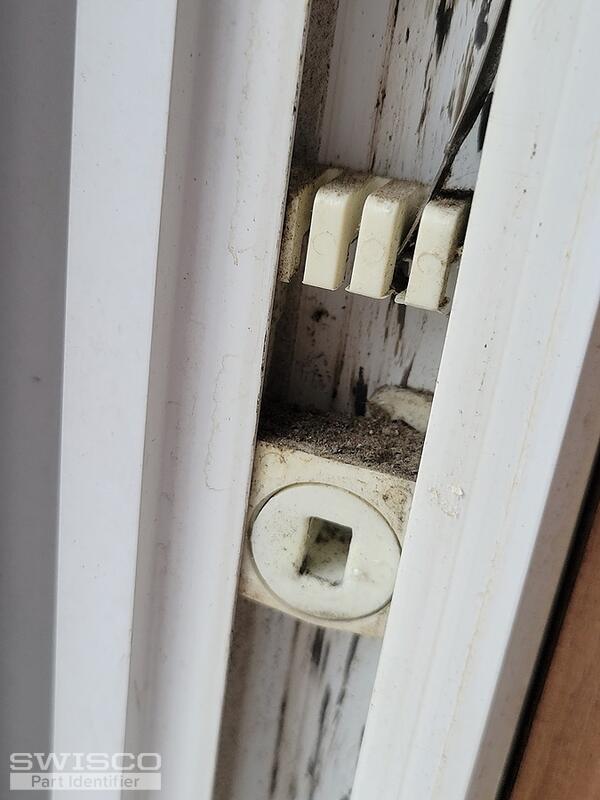

picture of balance At least 20 years old, mechanically fastened window 39:x 60"
Thumbnail of the uploaded file named 20220414_075915 balance.jpg
Profile picture of Lauren
Lauren from SWISCO responded:
April 19, 2022

Thank you,

It appears you may have a style like the 15-140 pivot shoe that is compatible with the Series 150 coil springs. You will need to remove the assembly from the window channel to confirm the design is similar and that the dimensions match up so it will fit correctly.

Alternate image for 15-140
Alternate image for 15-140

Coil Balance Shoe
Coil Balance Shoe
15-140
