Help finding correct balances for an old window

Quick Learner from Howell, NJ

I'm trying to find the correct balances for an old window in my house. It has two black hinges on the left side of the window and when unlocked it's supposed to swing to the left. Unfortunately the top of the two brackets is also broken and I do not know if that is going to affect the balance. I need help!

5 user uploaded images
4 Replies
Tom
Tom from SWISCO
SWISCO
Expert

We can supply your original balance, but it will have to be a custom order since it's no longer a stock configuration. I actually don't even think these windows are made anymore.

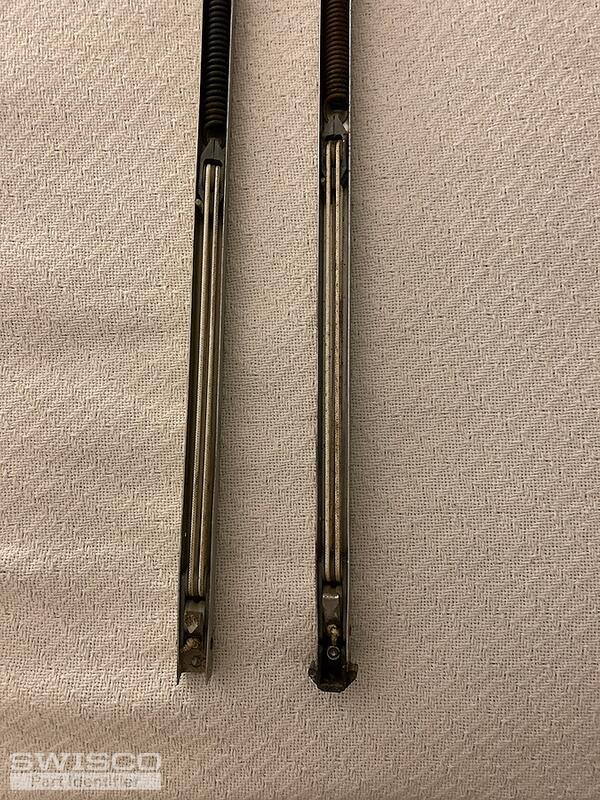

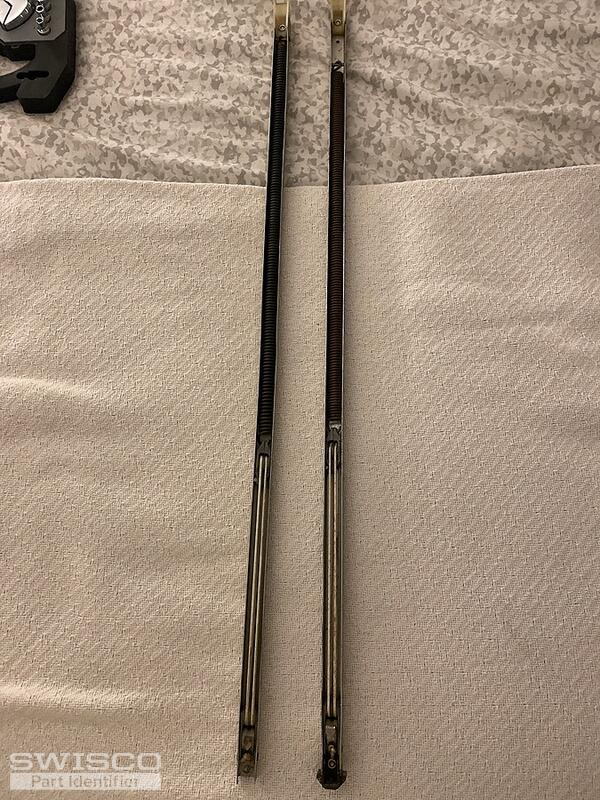

These are a little tricky, too, since they're asymmetrically designed. What that means is that the left side is a different configuration than the right side. You can actually see what I mean in your photos: one side has a bottom nylon fitting while the other side does not. This is the intended design.

With that in mind I'll need more information from you in order to determine exactly how we need to make these balances for you. First, can you tell me what the stamps printed on each side read? Please differentiate between the side that has a shoe and the side that doesn't have a shoe. Can you also tell me the length of the metal channel in each case? They should be the same. Finally, how many of each did you need?

Quick Learner from Howell NJ
I need one of each balance. Side with shoe is stamped with 2530, side without shoe is stamped with 2540. The length of the metal channels at 26 inches. The window also unlocks on the right and swings open to the left like a door. It's held up by two black plastic hinges. The top one is broken, any chance you folks have something like that too? Additionally, how much would 2 custom balances cost and what would be the wait period?
Tom
Tom from SWISCO
SWISCO
Expert

Thanks for getting back to us. One of our team members just sent over order links and price quotes for your hinge balances. You'll be given multiple shipping options to choose from at checkout with delivery estimates.

We also offer the 15-058 hinge assembly used with these balances. Take a look and let us know if you need anything else. Thank you.
