Balance

Quick Learner

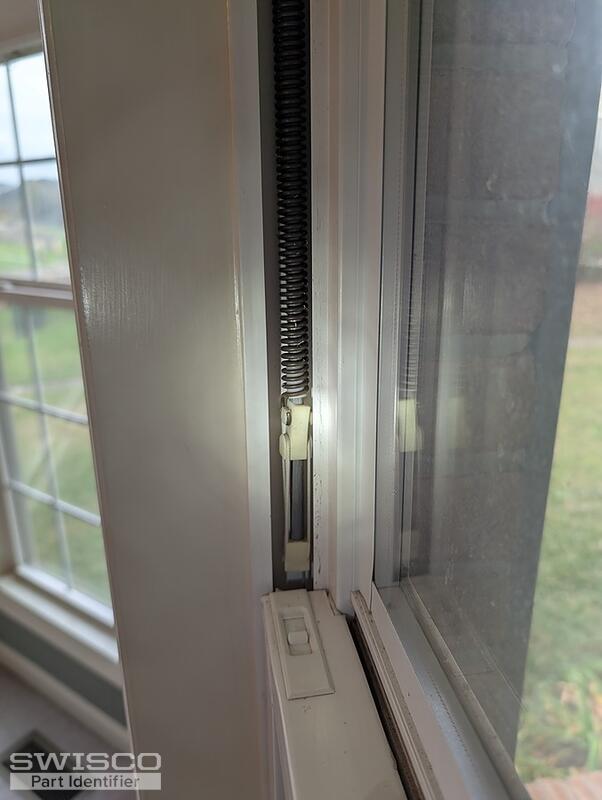

Single hung vinyl window with balance. Need to repair. Cannot identify the type of balance.
5 user uploaded images
2 Replies
Bob
Bob from SWISCO
SWISCO
Expert

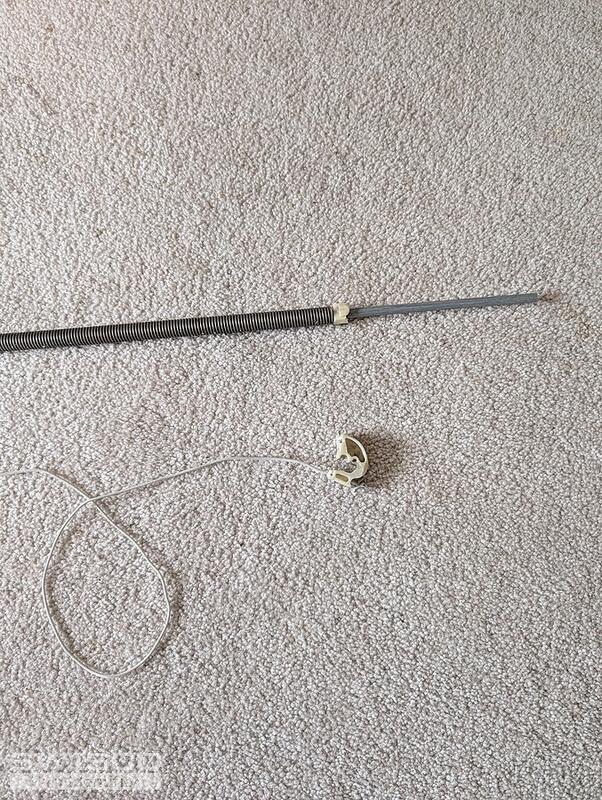

Hello there. This is a rod-style balance no longer made, but you can replace it with our Series 775 Tilt Window Channel Balance. You'll need to measure the length of the rod to determine the right balance length. Measure the size of the wedge shoe at the bottom to determine if you need a balance with a 1" wide or 1-1/4" wide shoe. Finally, weigh the window sash; use that exact weight to choose the right 'stamp option' for the new channel balance. Let me know if you have further questions.
