Balance Help needed

Contractor from scotts valley

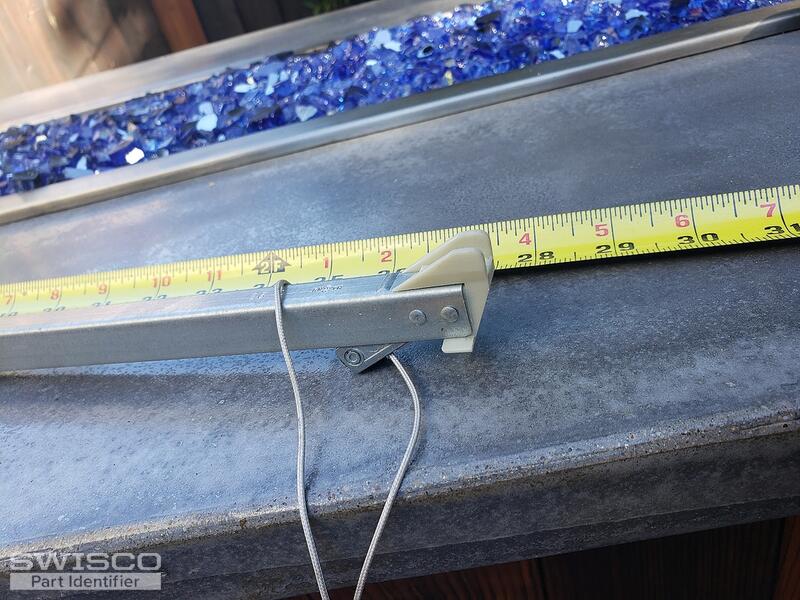

Morning. I have multiple balances that need to be replaced and was wondering if you could help me? I believe I have a S380 due to the lower shoe size.

S380-based on shoe although similar to S385
? 27" long
? 1" shoe
? 2640-19 to 26lbs identified on balance
4 user uploaded images
2 Replies
Casey
Casey from SWISCO
SWISCO
Expert

Hello,

If your bottom fitting is exactly 1" deep, then you would need the S380-27 channel balance with a 2640 strength option.

Note that the bottom fitting of the S385 measures 1-3/32". Thanks for posting!
