Balance ID

Question

Can help identify and provide price and availability.
This is from a dormitory, and will be a regular order.
I simply need the information to order them, on a regular basis;.

I have provided clear pictures, I have provided stampings.

I just need to know if you can supply these.

Based on these pictures, right now I need to know the approximate cost.
I thought this was the business you are in. If it is not, please let me know, but your website indicates you provide this item.

Jasmine · Accepted Answer

Hey there,

Thanks for reaching out! The balances you have here appear to be two different style balances. However, I am confident that we supply you with replacements for each of them.

The smallest balance, appear to be either the S351-21 with a 1" shoe or the S390-21 with a 1-1/8" shoe. These balances are made with a wingless top guide and a wingless bottom guide. To confirm which series you'll need for this balance, carefully compare the dimensions below.

Unfortunately, I am unable to cross-reference the stamp from this balance. So, to select the stamp option needed, you'll need to obtain the exact weight of the sash.

Comparison of the S351 and S390 balance shoes.

Regarding the other two balances, they appear to be made with a wingless top guide and a winged bottom shoe. This means, you'll need the Series 350 Channel Balance to replace these. For the balance marked with the 22-5, you'll need the S350-23 with a 2250 stamp.

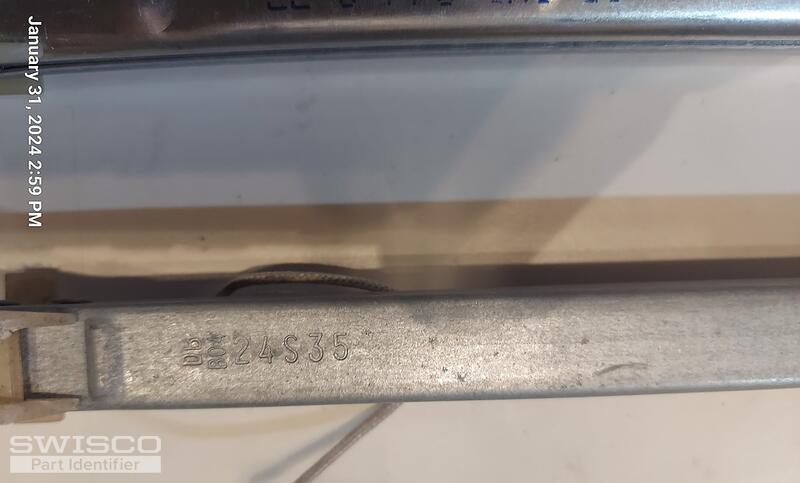

You'll need to obtain the sash weight for the balance marked with the 24S35 stamp. For this balance, you'll need the S350-25. Although, there is chance that it may need to be a custom assembly. If the weight of the sash is more than 33lbs, please let me know.
