Balance Issue on Windows

Home Owner from Tampa, FL

Oct 5, 2018 7:51 am

I believe I have an issue with my balance. I am not overly familiar with the naming convention with windows, so I am be using the wrong terminology.

I am including some pictures of the issue. Please let me know if you need further details to diagnose the issue or the piece needed.

3 user uploaded images

5 Replies

Paul from SWISCO

Oct 11, 2018 7:56 am

I do see a balance installed in your window. What I am not seeing is the issue? Could you get back to us with some details on what the issue is?

Home Owner from Tampa, FL

Oct 27, 2018 1:19 pm

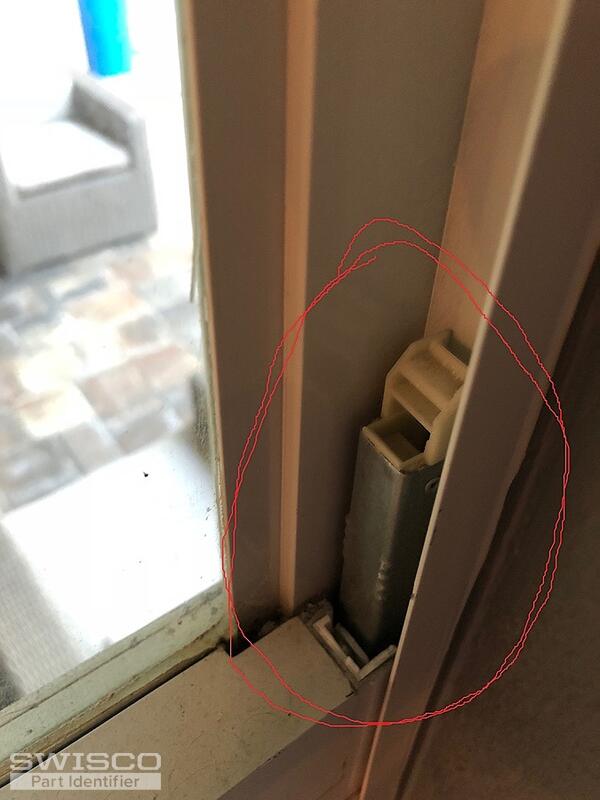

On the picture titled broken, the spring mechanism is sticking out of the top of the window. The plastic piece that holds in it in place has broken off.

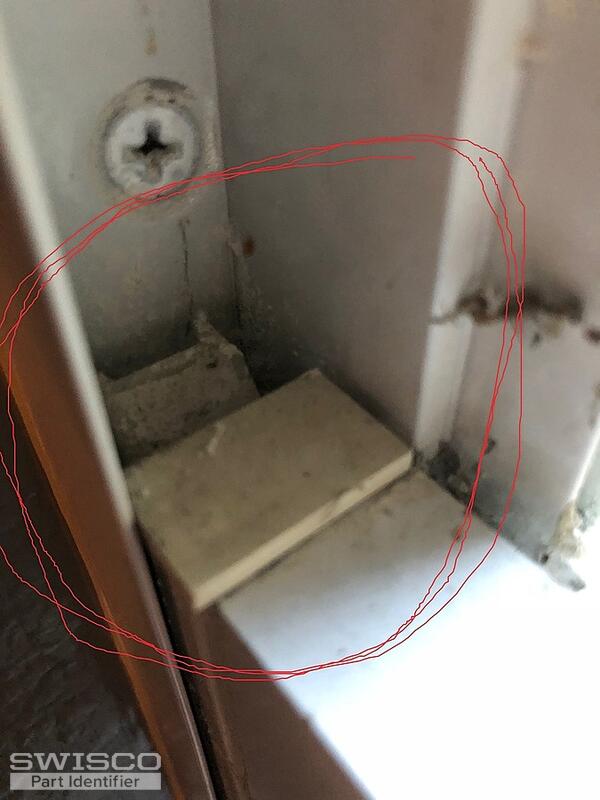

In the picture labeled intact, the plastic piece is not broken, and the spring mechanism is in place. I have reattached the photos circling each of them in red.

I hope this helps.

Thanks again.

2 user uploaded images

Home Owner from Tampa, FL

Oct 27, 2018 1:52 pm

It looks like I need some top sash replacements. I need 5 new ones and it looks like they are 5/8". Does that sound right?

Thanks.

Tom from SWISCO

Oct 29, 2018 8:39 am

Thank you for clarifying. Yes, it looks like the top sash guide is broken. You probably don't even need to replace your balances. There's a good chance they still work.

I can identify that top sash guide, but I cannot tell what you need. Would it be possible for you to remove the undamaged one on the left side of the window and show me a picture of it by itself. Specifically, I'd like a picture of the front and another picture from the side. Think of it like a mugshot.

In the meantime, you can see our entire selection here. You can probably find a match on your own if you wanted to do the homework. I also recommend watching the tutorial video on this problem here.
