Balance Measurements

Home Owner from Nipomo CA

Aug 29, 2024 1:42 pm

1/2" Balance Width
Top show: winged
Bottom Shoe: non-winged
Balance show depth: 1 1/8th" (15-001)
Balance Length: 27"
Picture attached with code printed on balance to determine sash weight.

3 user uploaded images

4 Replies

Bob from SWISCO

Aug 30, 2024 1:18 am

Hello there. This is most likely an S395-27 Channel Balance, needing a stamp code of 2650. However I'd like to verify one further detail. Can you show me the underside, or 'guts' of the metal channel? Once we corroborate one feature, we should be able to confirm if you're good to go.

Home Owner from Nipomo CA

Aug 30, 2024 9:41 pm

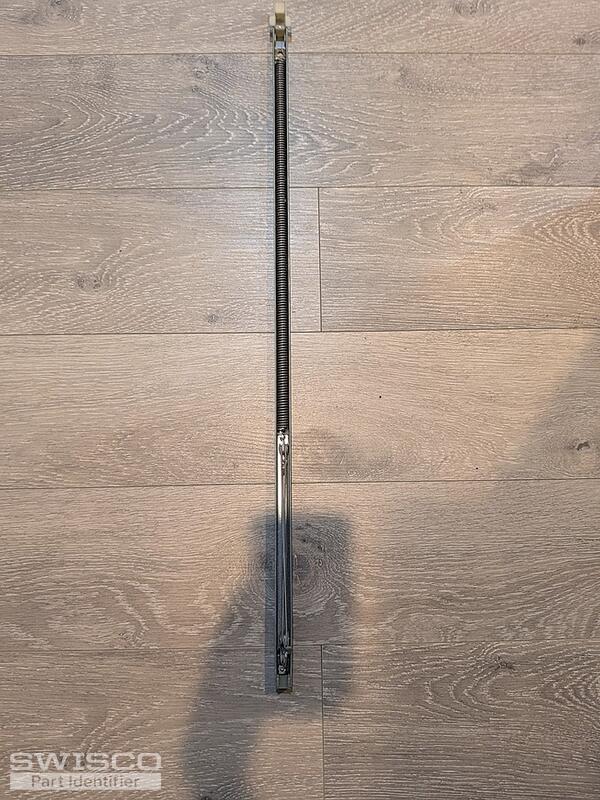

Thanks Bob. I've attached the requested picture.

1 user uploaded image

Bob from SWISCO

Aug 31, 2024 10:02 pm

Thanks for posting. The S395-27 with a stamp of 2650 should work for you. Let me know if you have further questions.
