Balance Part Identification

Quick Learner from USA
(No content.)
2 user uploaded images
4 Replies
Jasmine
Jasmine from SWISCO
SWISCO
Expert

Thanks for writing in! I am confident we can provide you with the replacement balances needed to complete your repairs. Although, to narrow down the correct fit for your window, I'll need to know the length of the metal (excluding the attachments) and the stamp from the metal channel. If your balance doesn't not have a stamp, I'll need to know the exact weight of the window sash.

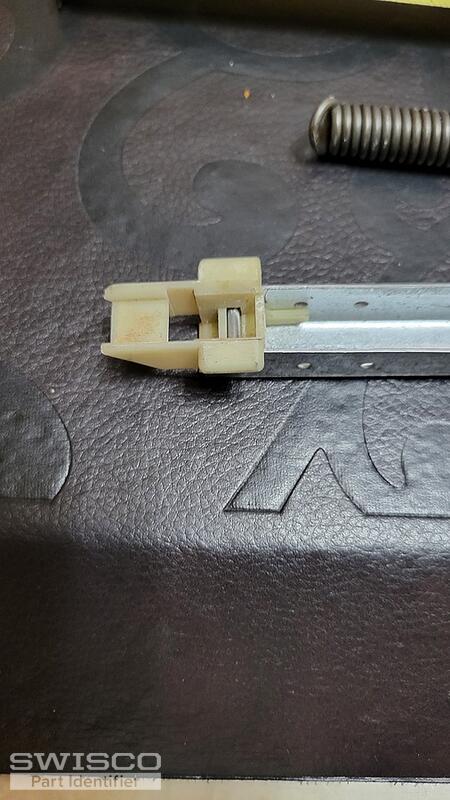

Also, may I see a clearer photo of the bottom attachment?

Quick Learner from USA

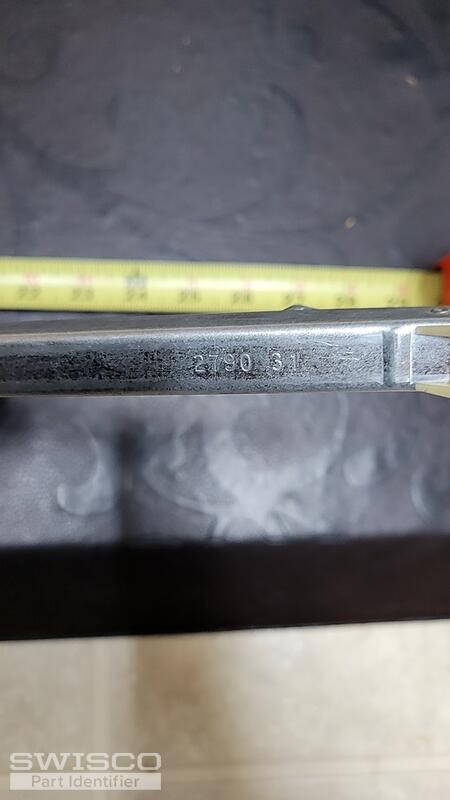

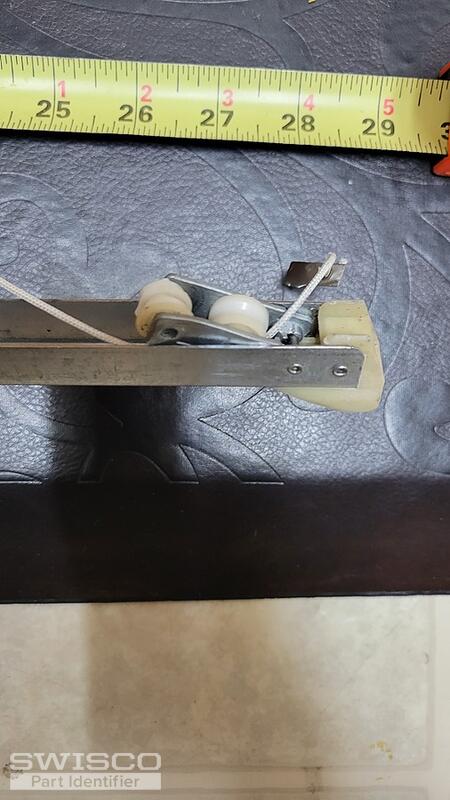

Length appears to be 28 inches. Not sure of weight of window.
4 user uploaded images
Jasmine
Jasmine from SWISCO
SWISCO
Expert

Your balances can be replaced with S395-28, assembled with a winged top guide and a wingless bottom shoe.

The stamp rating on your balances differ from ours, so I would not be able to cross-reference the stamp on your balance with the one on ours. That said, you will need to obtain the sash weight to select the correct stamp for your replacement balances.
