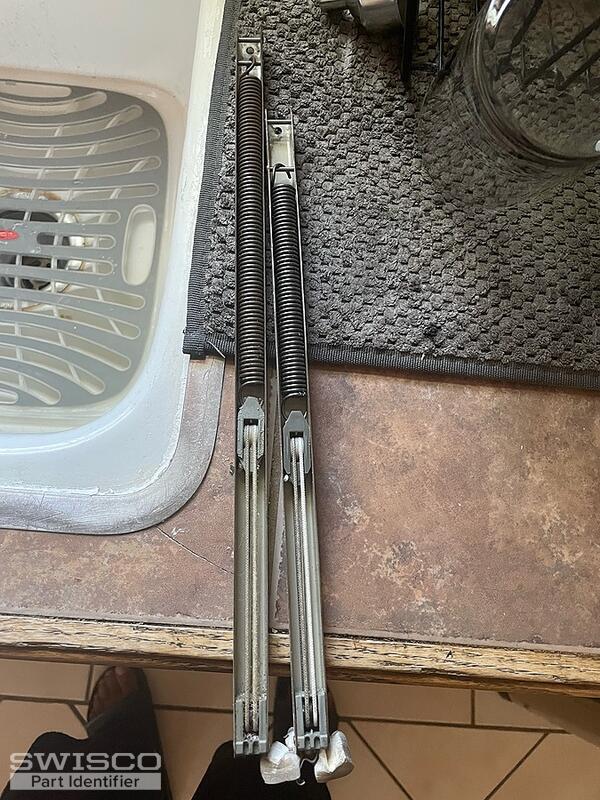

Need balance parts for 2 different size windows. 14b and 12b same house, pivot bar broken from 14b

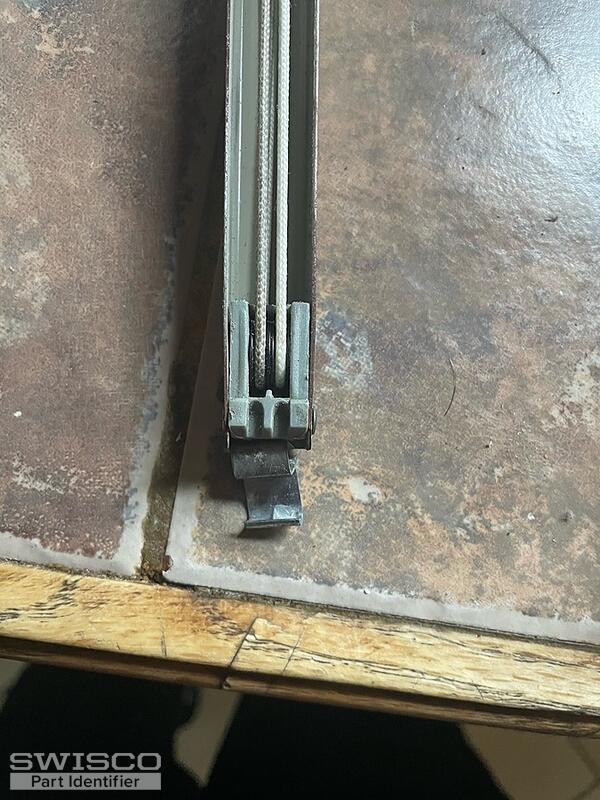

Both balance 14b & 12b have hooks top and bottom. Pivot shoe is 1/2 in thick 1 1/4 wide and about 1 1/2 height. Pivot bar 2 1/2 length.
Need 2 of the 14B and 2 of the 12B
|
Tom from SWISCO responded:
August 17, 2022
Hello! We can supply these balances, but they'll have to be a custom order due to their configuration. Basically what you have here is a balance with the same general design as our Series 770, but with two main differences: the bottom clip is replaced with the 15-170 clip and the top end has a rivet, so as to accommodate an S-clip like our 19-029 (short) or 19-030 (long). We'' be custom making these balances for you here in our shop before we ship them out. What I'll do now is email you a purchase link and price quote for each size. These balances will be 14" and 12" long, respectively. You can use these links to add the custom assemblies to your cart. The other parts you picked out, the 15-169 and 26-021, appear to be correct. Just note that these two parts, in addition to the two S-clips, are all sold separately and will not be included with this custom assembly, which is just for the balances themselves. So if you want to purchase these at the same time, don't forget to add them to your cart before you checkout! Please let me know if you had any questions. |
