Balance Replacement

A handy person from Florida says:
March 11, 2021

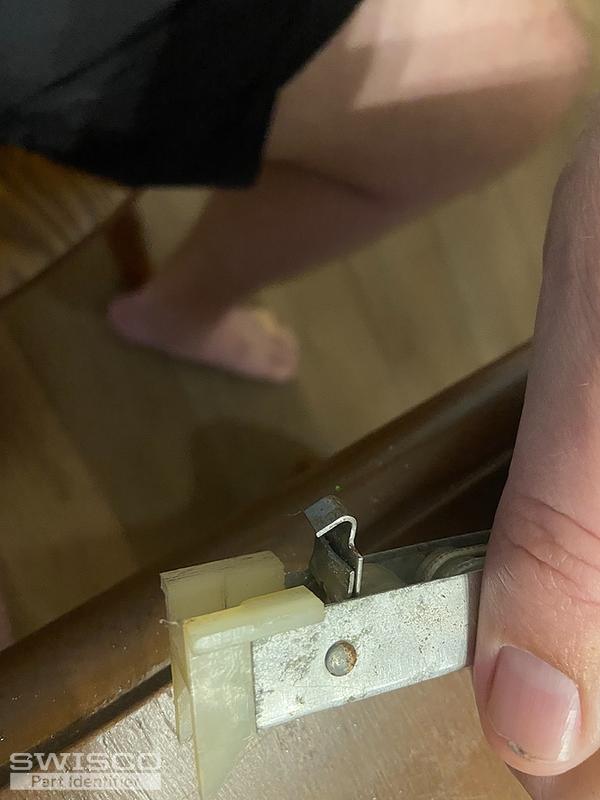

I would need 4 of these balance parts and also need to know to put them back in the window.
Thumbnail of the uploaded file named A92AF883-45D6-4EED-BF3A-B48D2A746D73.jpeg
Thumbnail of the uploaded file named E7101E0B-8D44-4F50-AAE0-F03A6C2B598B.jpeg
Thumbnail of the uploaded file named 011918E2-4DAF-4D5E-B122-4537BC92AC47.jpeg
Thumbnail of the uploaded file named 1F82653C-7A71-4FAA-9C1B-5A35C821BF1E.jpeg
Thumbnail of the uploaded file named 9928746A-6527-4485-85E2-975ECA396DBB.jpeg
Profile picture of Casey
Casey from SWISCO responded:
March 12, 2021

Hello,

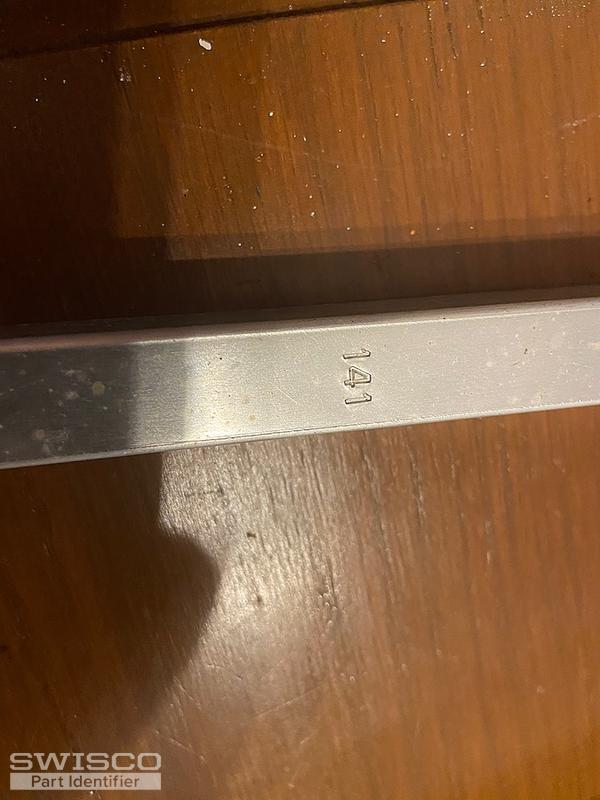

We can provide these balances for you but they will need to be custom made with our 15-007 bottom and 19-035 top attachments. That being said, the 141 stamp on your metal channel is a bit unusual.

I believe it indicates that you'll need 1410 strength options for your new balances to support a window sash weighing between 4 to 6 lbs. If you could confirm that your window sash falls within this weight range, we'd be happy to get an order link and price quote together for you. Thank you!
Channel Balance Shoe, Pan Am
Channel Balance Shoe, Pan Am
15-007
$1.54
Channel Balance Top, Pan AM
Channel Balance Top, Pan AM
19-035
$2.63
Aluminum Top Sash Guide, WT
Aluminum Top Sash Guide, WT
18-010
$1.97
