Balance Shoe for Ellison Vinyl Replacement Windows

A handy person from Atlanta, GA says:
August 15, 2018

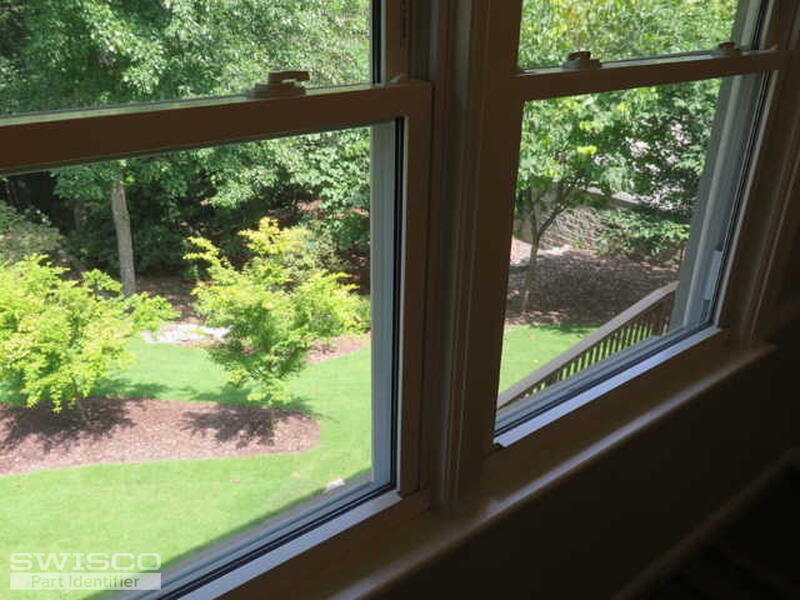

Window Series# 1400 Superseded by #660
Window ID #00752517

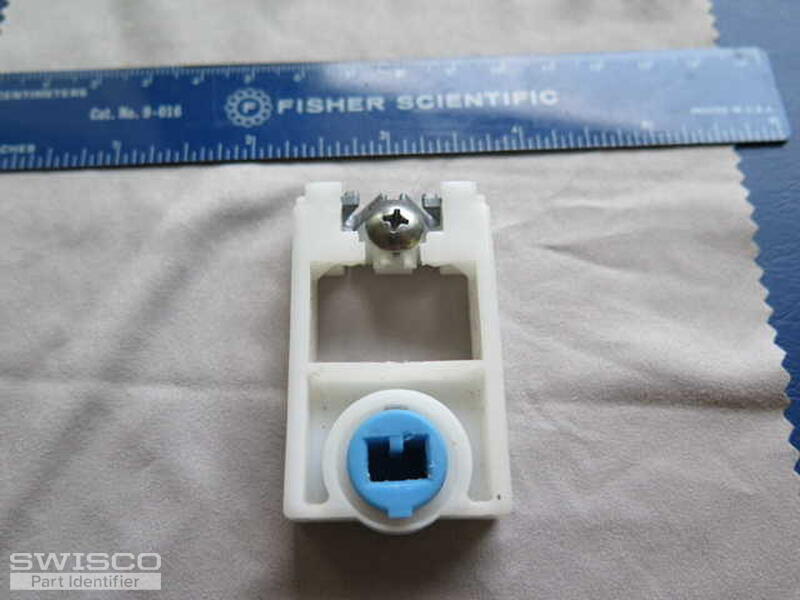

Referred to as a Balance Shoe or Pivot Lock Shoe
Part # 6602BAL SHOE/00000
(000011100)
Profile picture of Paul
Paul from SWISCO responded:
August 24, 2018

Please compare our 15-015 pivot shoe to yours. It's my top recommendation. We also recommend using the 75-006 to make installation easier. You use the tool to attach the spiral to the pivot shoe.
A handy person from Atlanta, GA says:
August 25, 2018
Is the blue insert opening 5/16" x 3/16"?
Profile picture of Paul
Paul from SWISCO responded:
August 30, 2018

Yes, the 15-015 center blue cam's opening measures 5/16" x 3/16".
