Balance channel

A quick learner from Indianapolis says:
I would like to order two balance channels for replacement 25" long.

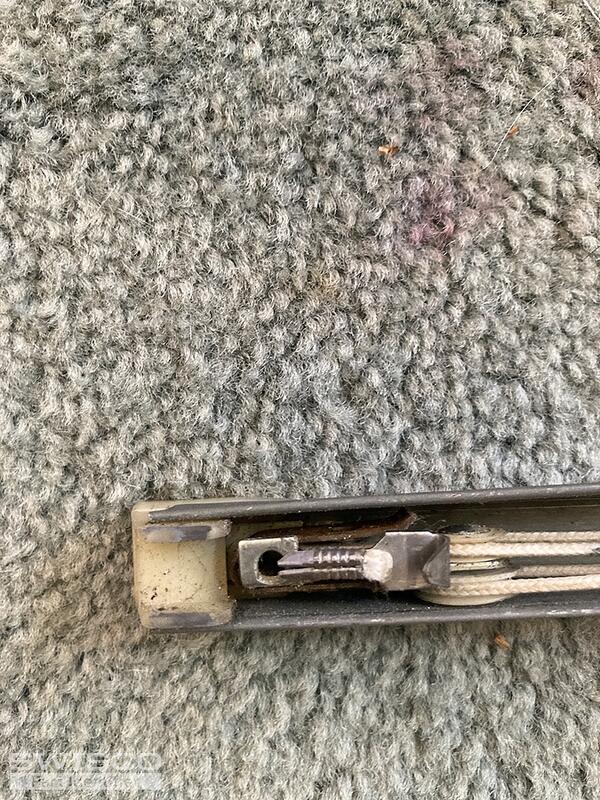

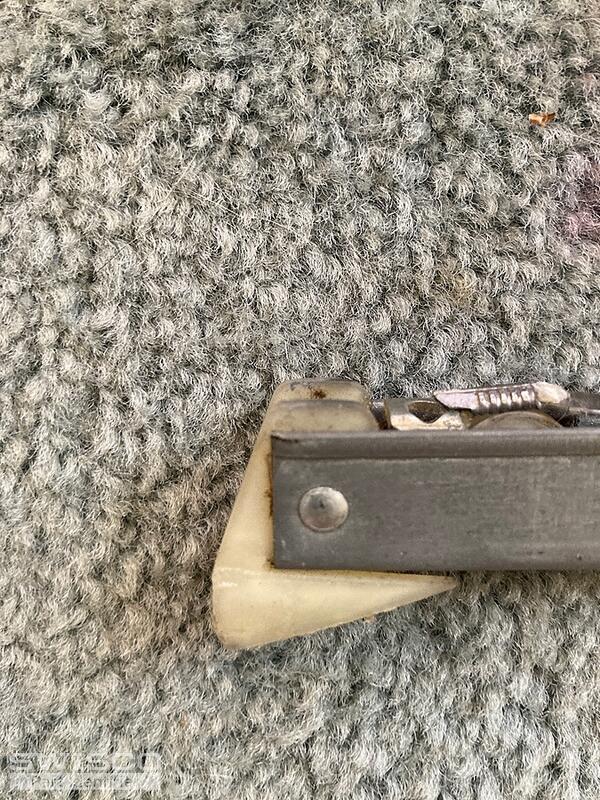

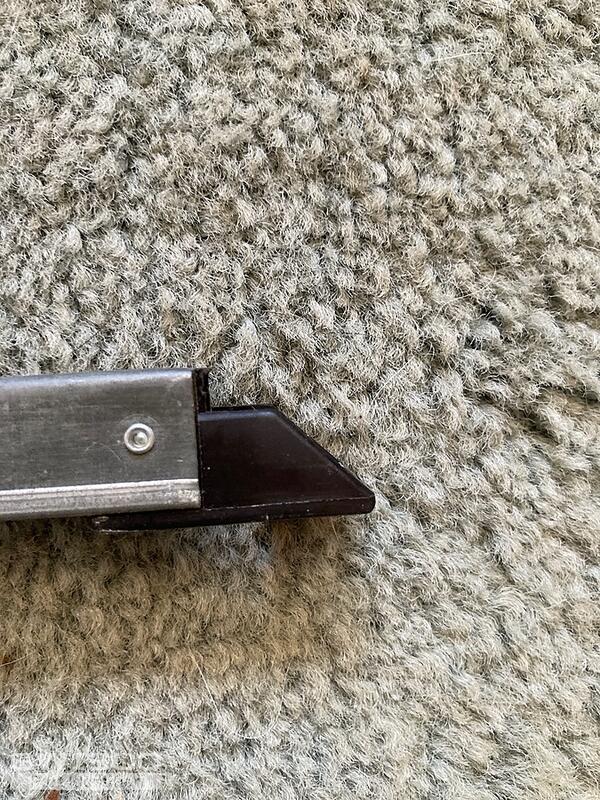

Thumbnail of the uploaded file named 10BBD1B6-6A14-4AF7-A5C4-C01D1B20B60F.jpeg
Thumbnail of the uploaded file named 26C18322-FEA7-476D-BB84-30A319AEBC05.jpeg
Thumbnail of the uploaded file named 5815D1C1-4949-4A6C-BFD9-99955260BF98.jpeg
Thumbnail of the uploaded file named 70C4EB05-395C-4F29-BC16-4FF618CAE79A.jpeg
Profile picture of Emily
Emily from SWISCO responded:

Hello!

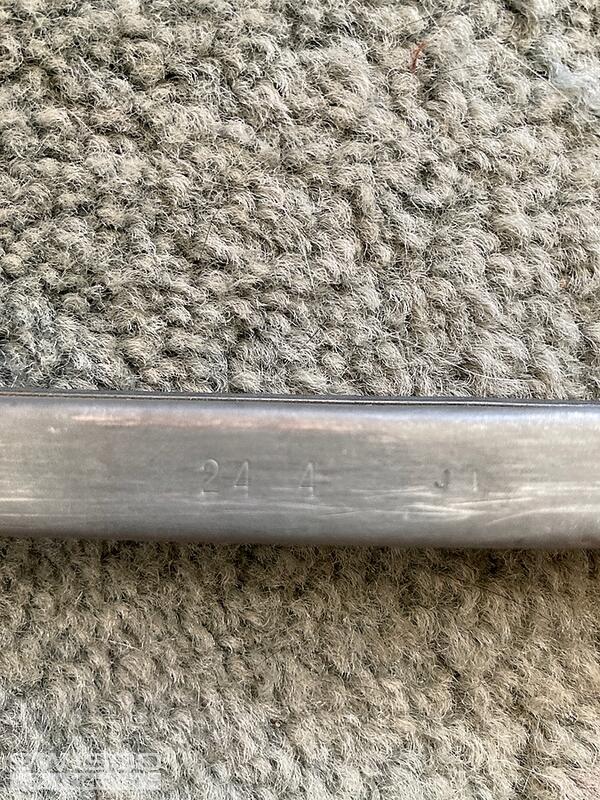

It looks like your balance is a match for our S351-25 or S390-25 , depending on the depth of the bottom shoe. Our Series 351 has a 1" deep shoe and the Series 390 has a 1-1/8" deep shoe so you'll need to measure as shown below to see which one matches up. You will also need the 2440 spring strength option based on your 24 4 stamp.

Comparison of the S351 and S390 balance shoes.
Comparison of the S351 and S390 balance shoes.
