Balance for Insulate Window

A quick learner from 96103 says:
August 19, 2022

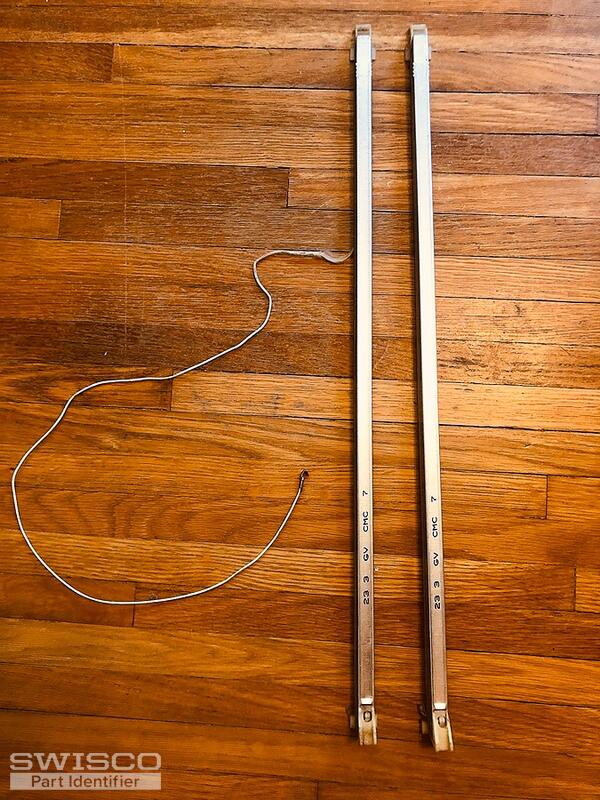

Non tilt window, number indicated on balance:
23 3 GV CMC 7

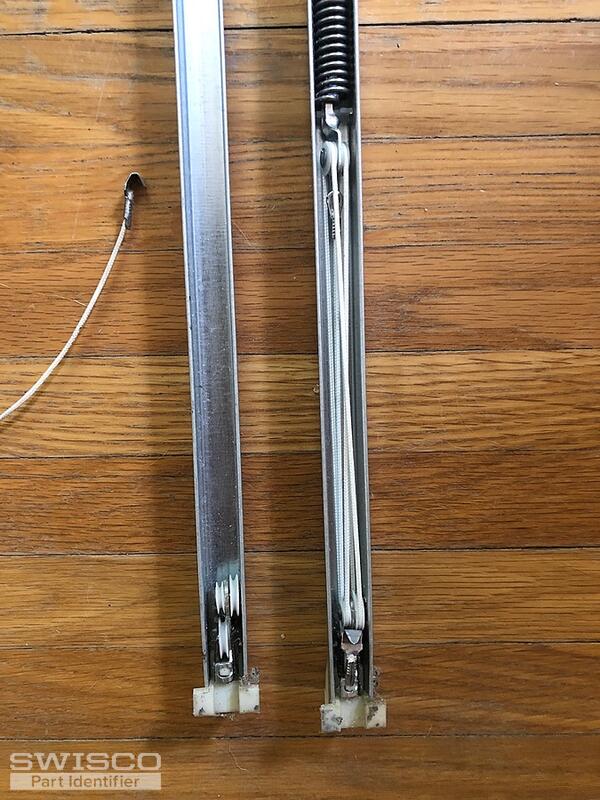

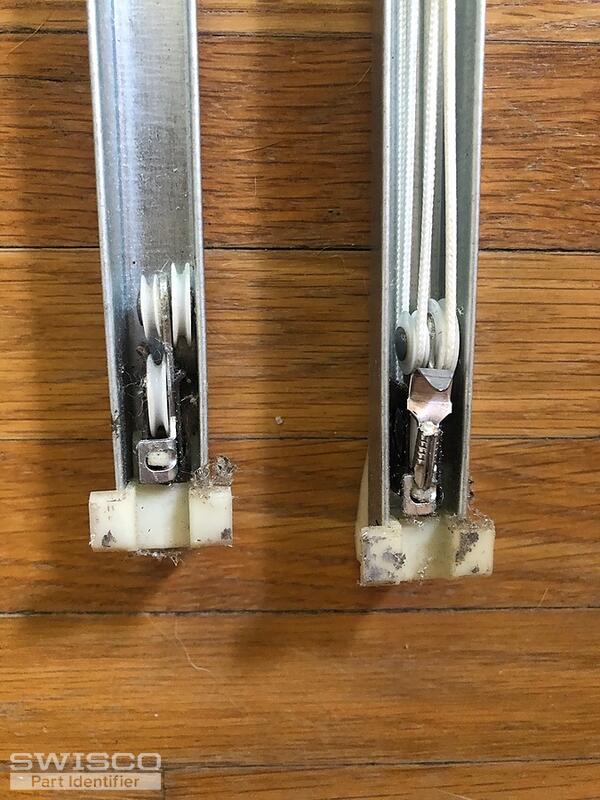

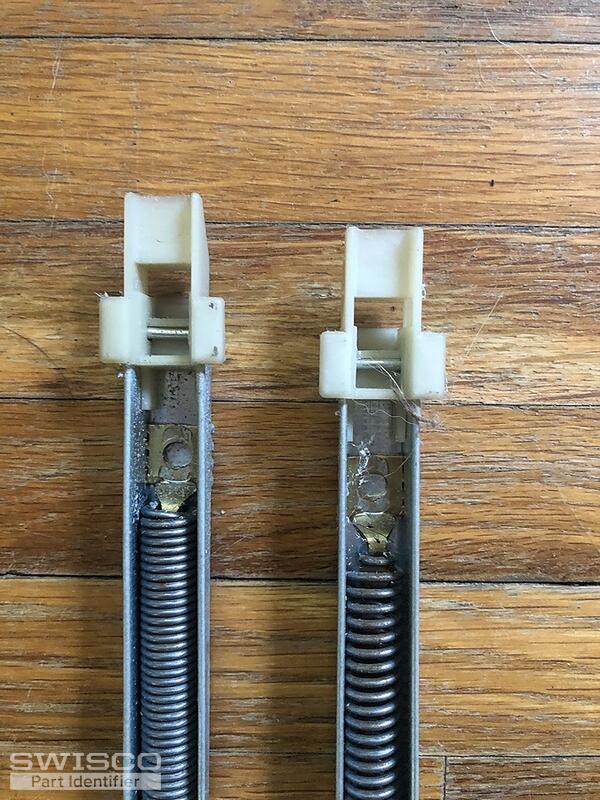

Thumbnail of the uploaded file named 0A7E63E6-0F27-4DE9-90A5-92499BF96CC5.jpeg
Thumbnail of the uploaded file named DAE2103B-EFD7-4D73-AC81-0719E953D131.jpeg
Thumbnail of the uploaded file named AFBED265-E882-4DE0-A9E4-EAB47CAB58FC.jpeg
Thumbnail of the uploaded file named 70F316F7-DCF0-48C6-99D6-390FA973CE25.jpeg
Profile picture of Emily
Emily from SWISCO responded:
August 22, 2022

Hello there!

I recommend our S380-24 or S385-24 channel balance based on what you show here. The best match ultimately depends on the depth of your bottom shoe. The Series 380 has a 1" deep shoe, and the Series 385 has a 1-3/32" deep shoe. Measure as shown in the image below to see which one matches best. You will also need the 2330 strength option.

Comparison of the S380 and S385 balance shoes.
Comparison of the S380 and S385 balance shoes.
