Balance for PGT non tilting window

Quick Learner from Cape Coral, Florida
I have a 11/8" Channel and the balance is 1/2" wide

The overall length with plastic pieces is 31 1/8" Without is 30"

The only Markings are 29-2 BA CMC 7

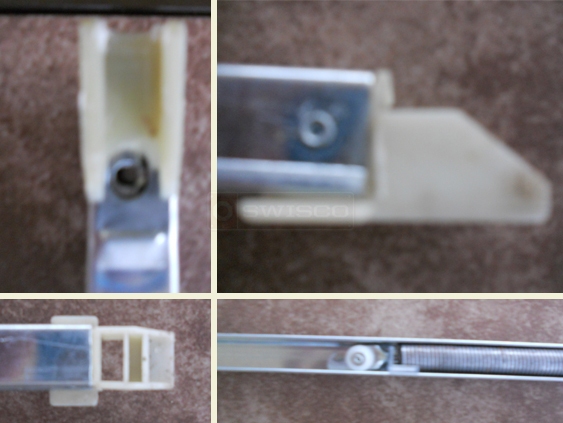

User submitted picture of channel balance 3- 29-2 BA CMC 7.
4 Replies
Tom
Tom from SWISCO
SWISCO
Expert
Thank you for posting on the discussion board.

Before we move forward, take a look at this guide and select the appropriate shoe that matches your original.
Diagram on how to choose between the 15-001, 15-002, 15-004, 15-005, and 15-029 channel balance shoes.
Diagram on how to choose between the 15-001, 15-002, 15-004, 15-005, and 15-029 channel balance shoes.
It should be either the 15-001 or 15-002.
Quick Learner from Cape Coral, FLorida
The attachment at bottom one does not have wings and it is 1"

The Attachment at the top does have wings and it is 3/4 ".
Tom
Tom from SWISCO
SWISCO
Expert

Thank you for getting back to us and confirming your balance attachments. Your specific combination of attachments will require a custom balance to be made. With that said, I'll go ahead and email you a custom order link that you can use to place an order on our website.
