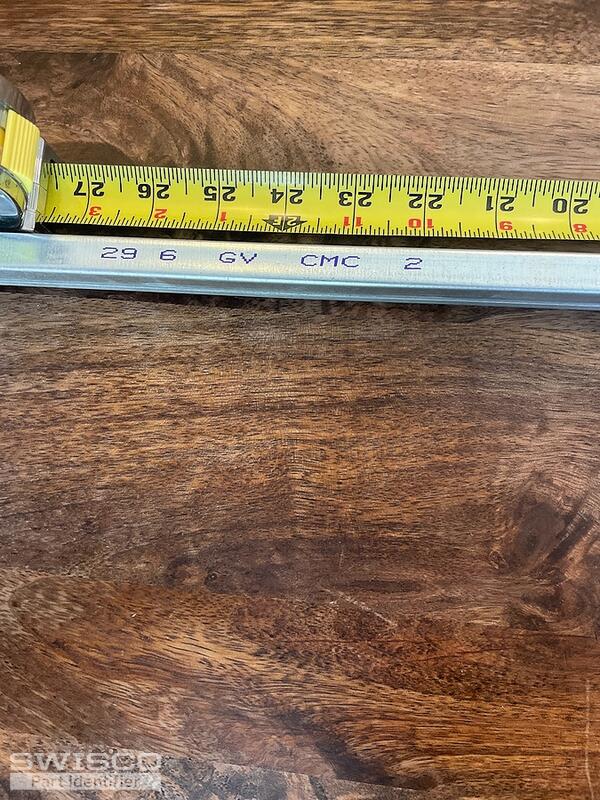

These are from a milgard window installed in 2004
It's clearly a half in wide 30 inch long
And I think either an s380 or s385
I can't tell the difference between the bottom shoes
Can you tell from these photos?
Balance identification
Handy Person from California
Aug 13, 2022 4:33 pm
4 user uploaded images
2 Replies
Casey from SWISCO
Aug 16, 2022 10:06 am
Hello,
With this combination of attachments, I agree that you could have either an S380 or S385 channel balance. You’ll need to measure as shown below. The Series 380 has a 1" bottom attachment, and the Series 385 has a 1-3/32" attachment.
Thank you and let us know if you have any other questions or concerns.
Comparison of the S380 and S385 balance shoes.
