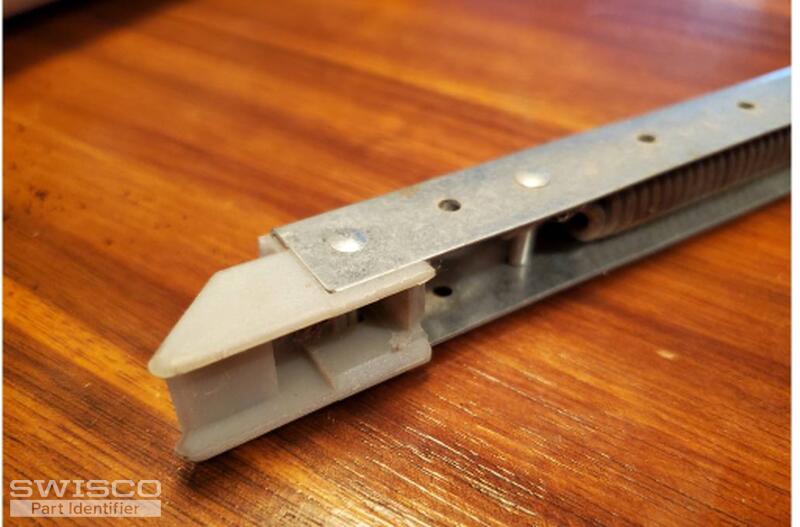

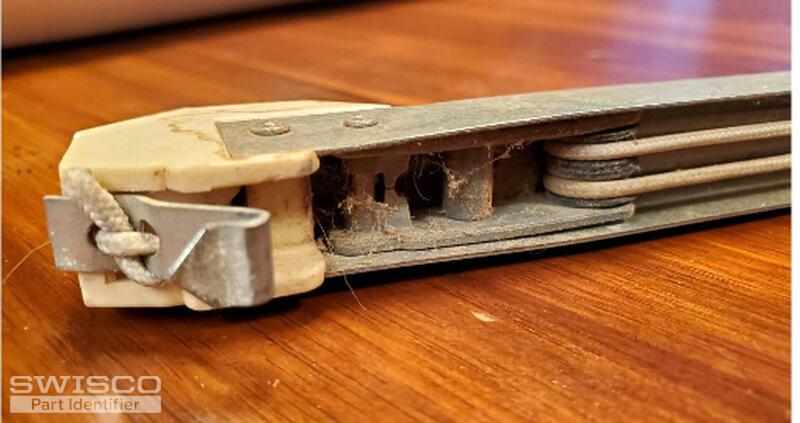

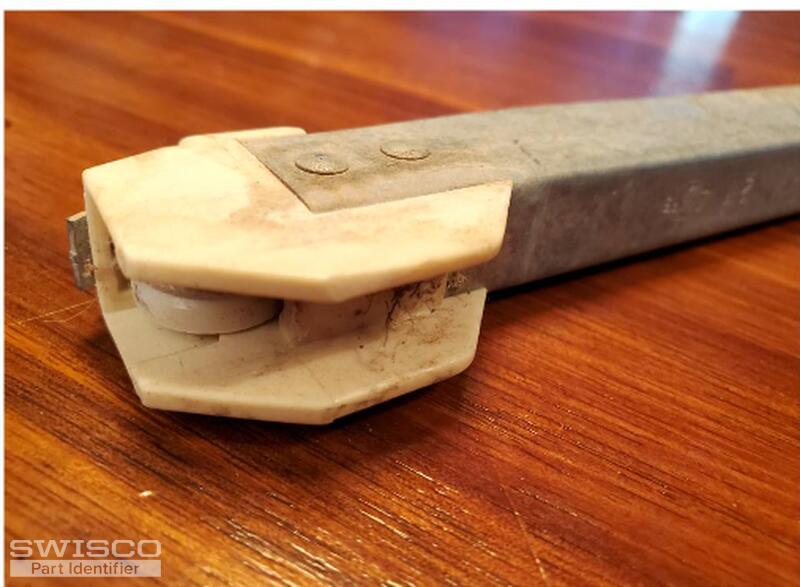

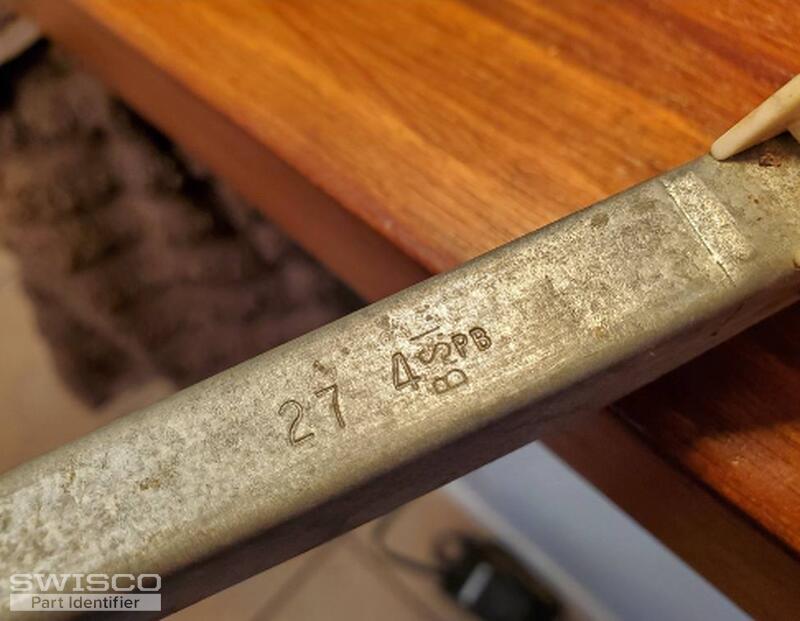

Greetings. I have enclosed some photos or the balance removed from a house built in about 2006 here in Casa Grande arizona. I need about 14 of the balances. The metal measures 27,5 inches long, and 1/2 inch wide. Please advise on which model fits my needs so i Can get them on order asap.
Also, do you sell the latches as well?
Thanks
Balance needs
Quick Learner from USA
Jul 5, 2023 9:02 am
5 user uploaded images
2 Replies
Casey from SWISCO
Jul 6, 2023 3:56 pm
Hello,
We can supply your replacement balances but it will need to be a custom order due to the length, extended travel pulley system and unique combination of end attachments. We just sent over an order link and price quote for you to review. Please note that these balances come with a 27-5/8" long metal channel, not including the end fittings.

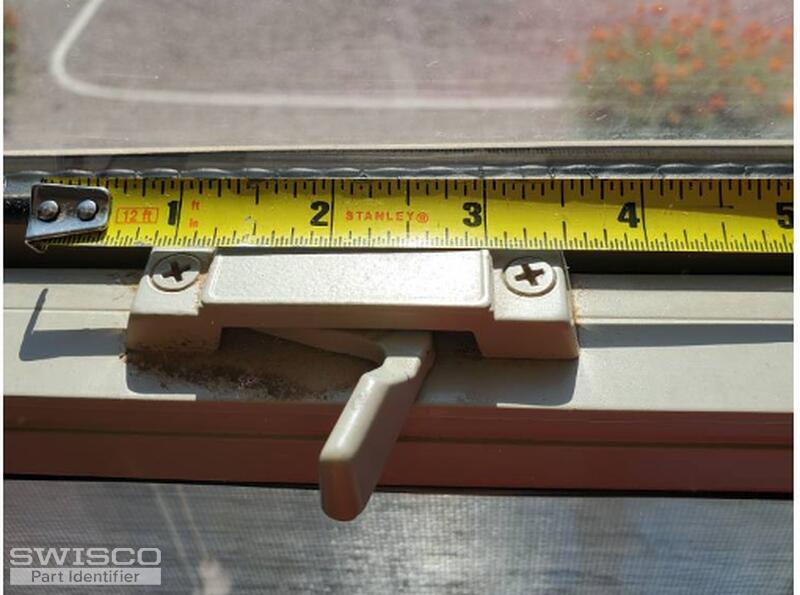

As for your sash lock, I can't be sure based on a photo but it looks like your part has 2-1/4" hole spacing. If so, I would recommend starting by comparing the specifications of the 90-009 and 90-005 to yours. Take a look and let us know if you need anything else. Thank you!
Comparison of 90-005 and 90-009
Alternate image for 90-005
Alternate image for 90-009
Latch thickness of 90-009 Window Lock.
90-009 Window Lock Underside View
