Balance replacement

Landlord from Trinity
Sep 2, 2024 10:05 am
Can you tell me which part and how to order 4 of them?

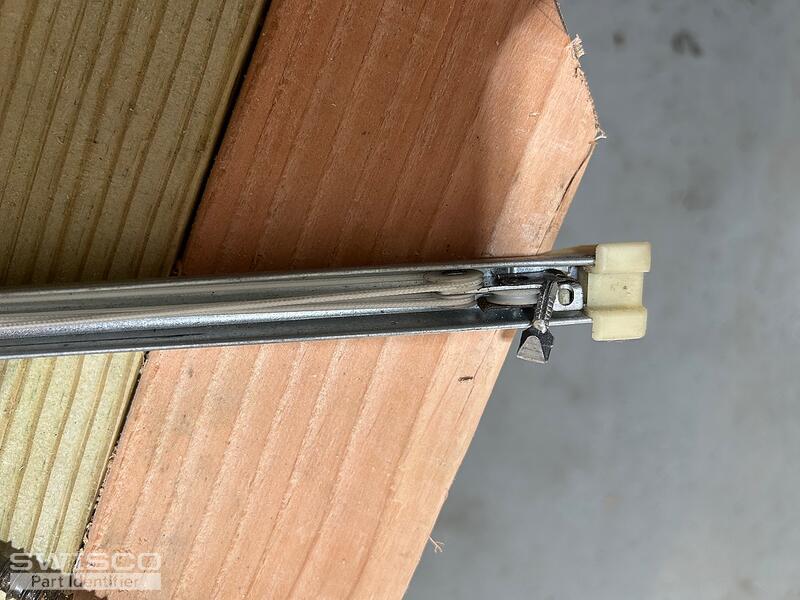

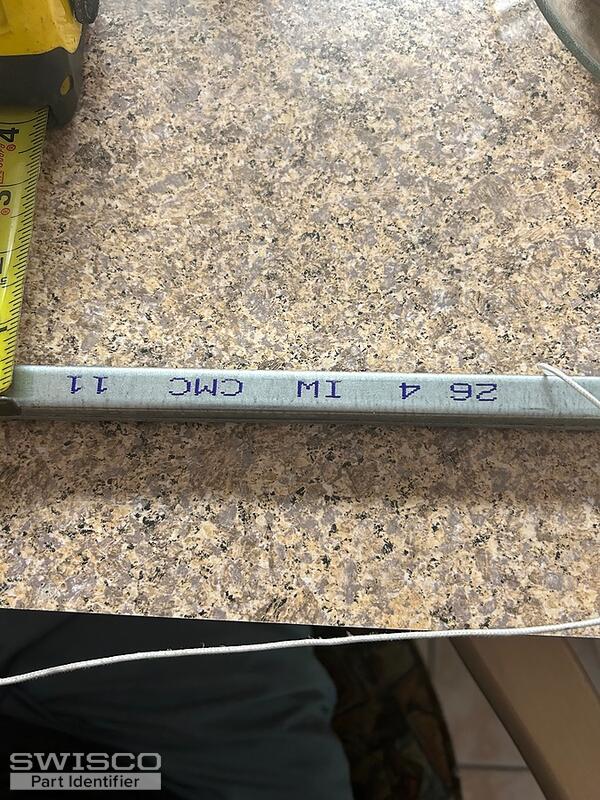

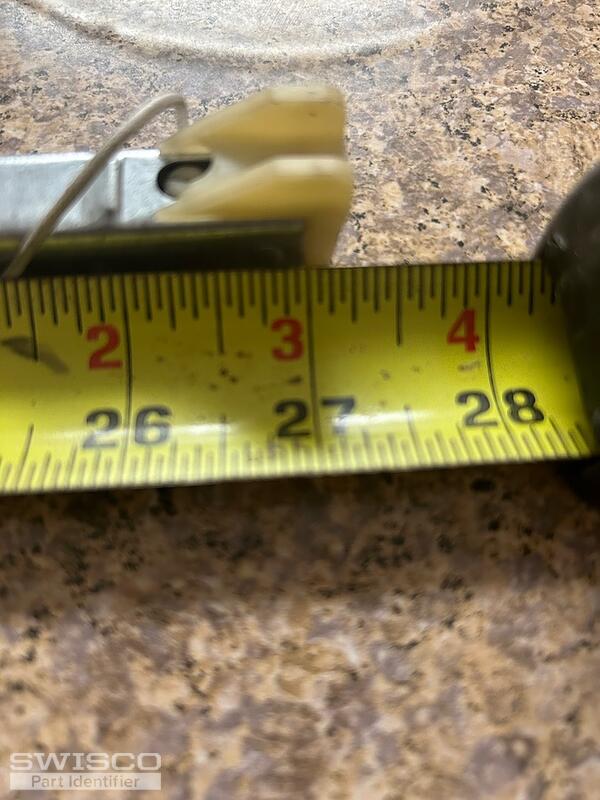

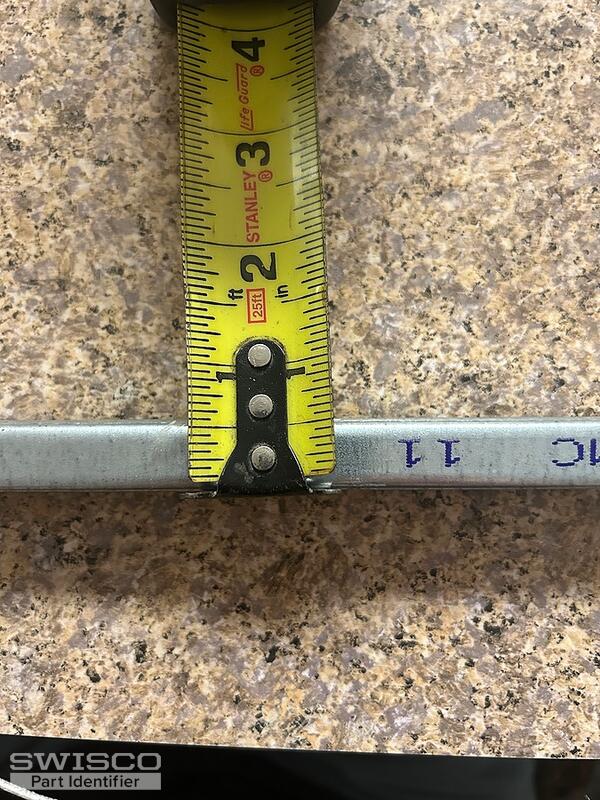

metal channel 26 4 stamp channel length top fitting winged bottom shoe
5 user uploaded images
3 Replies
Emily
Emily from SWISCO
Sep 5, 2024 1:25 pm
SWISCO
EXPERT

Hey there!

Thanks for reaching out to us. We're happy to look into this. Can you also show us a photo of the inside of the metal channel where the innerspring connects to the pulley mechanism? That'd be located in the middle of the channel.

Landlord from Trinity
Sep 5, 2024 7:39 pm
Here are these

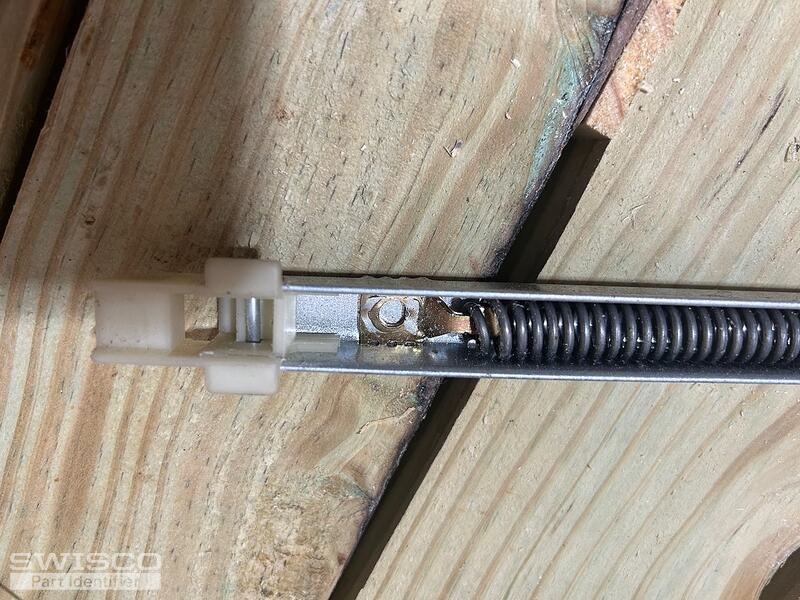

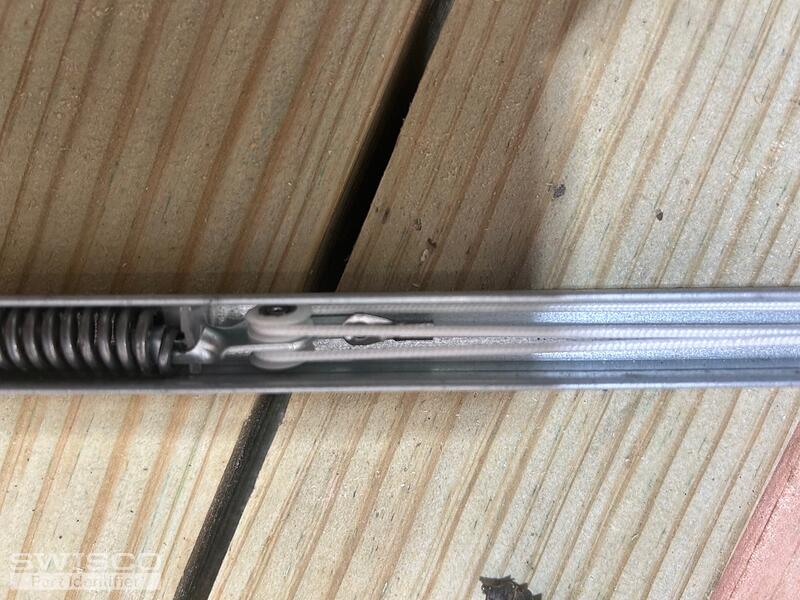

spring connection top fitting bottom hook
3 user uploaded images
Emily
Emily from SWISCO
Sep 6, 2024 8:33 am
SWISCO
EXPERT

Great, thank you! Based on your photos, I recommend the S380-27 or S385-27 with the 2640 stamp option. The difference between the two is the depth of the bottom shoe so you'll have to measure as shown below to determine the best match.

Comparison of the S380 and S385 balance shoes.
Comparison of the S380 and S385 balance shoes.
