Balance replacement

Home Owner from California
Please confirm and advice what size balance channel should I purchase it. Attached 5 photo for your reference.

Many thanks.

David
5 user uploaded images
8 Replies
Tom
Tom from SWISCO
SWISCO
Expert

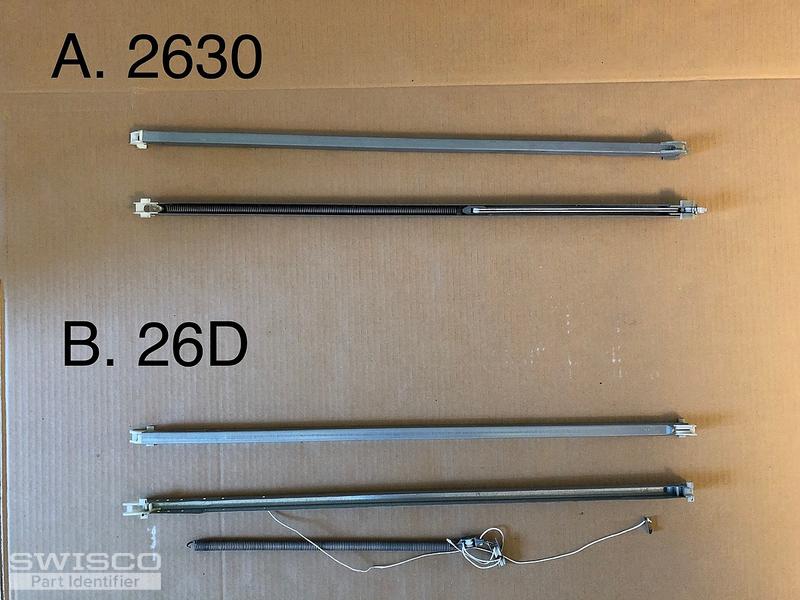

It looks like you're showing us two balances. One of them has a wheel built into the bottom nylon fitting, the other does not. That's a very important distinction, since one has to be custom made an the other does not.

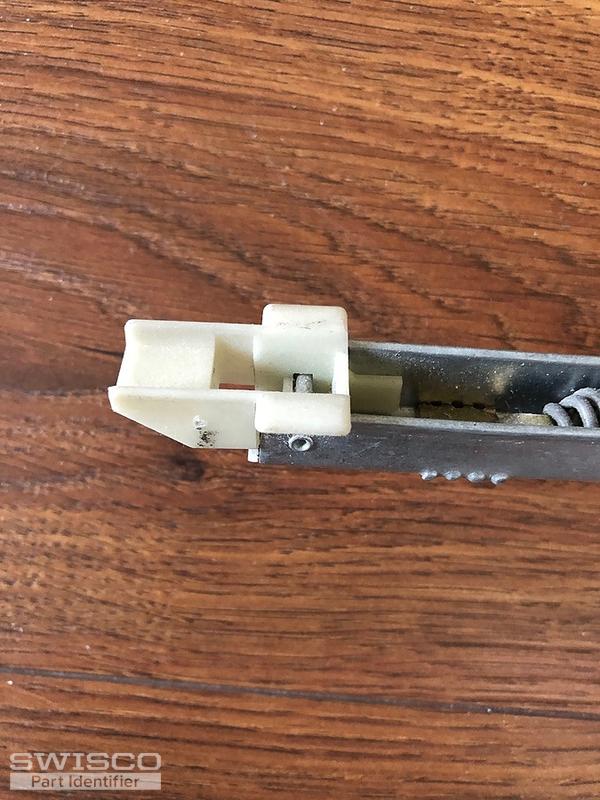

These are two very difference balances. Did you take these off the same window, or two different windows? Can you show a clear picture of the top fitting for each one, and specify each stamp it goes with? Finally, how many of each did you need?

Home Owner from California

Dear SWISCO experts,

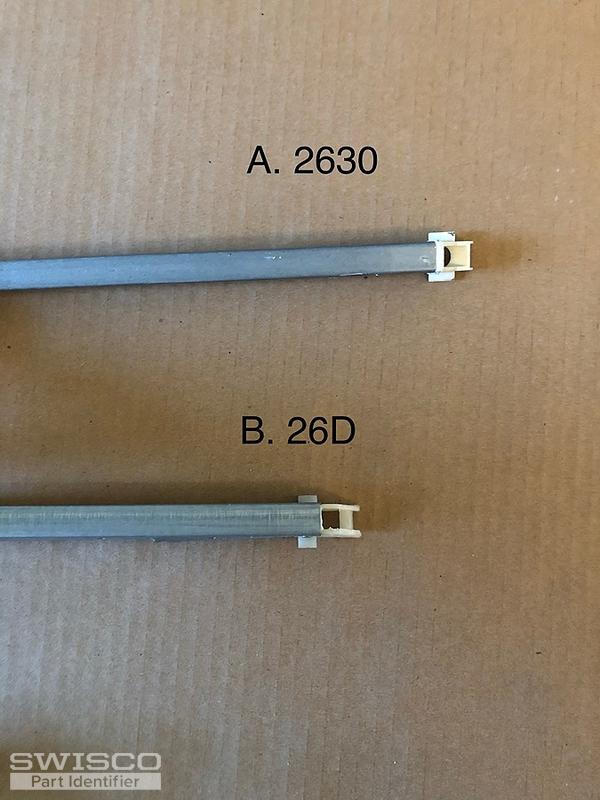

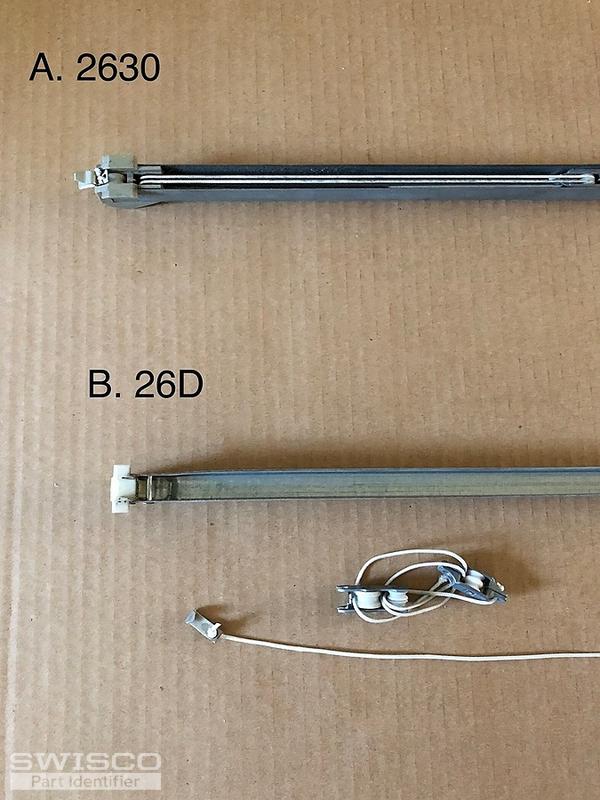

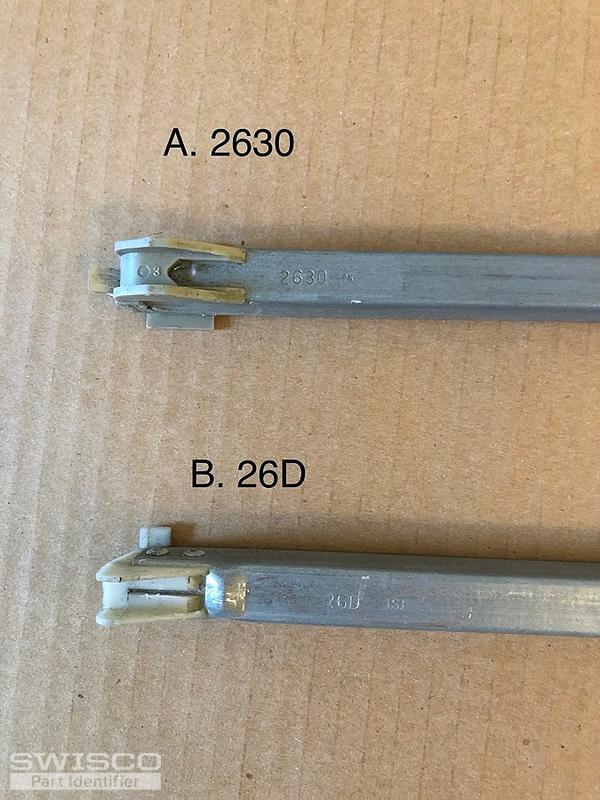

Indeed, I move balance from the two different windows. Now, attached please find the 5 photo which are my old balance. Please confirm and advise what size or items number should I purchase. I need 4 balance for A and 2 balance for B.

Your sooner reply will be appreciates.

Best,

David

5 user uploaded images
Tom
Tom from SWISCO
SWISCO
Expert

Thank you so much, David! This information is immensely helpful. I wish more customers were as attentive to detail.

These photos have made this a painless process. What I'll do now is email you a purchase link and price quote for Balance A, which must be a custom order due to its special configuration. You can use this purchase link to add it to your cart.

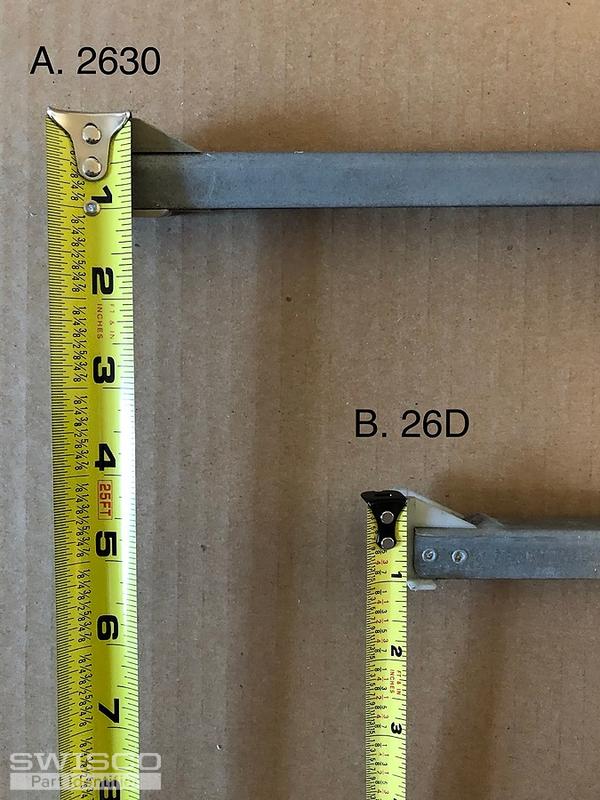

Balance B looks like it has a 1" deep shoe, so I recommend the S380-27 with a 2640 stamp option. This will not be included with the custom purchase link, but you can add it to your cart at your convenience. That way you can checkout with everything at once. My only recommendation is to triple check that the shoe is indeed 1" deep. It looks to be from your photo, but it never hurts to be 100% sure.

Please let me know if you had any questions.

Home Owner from California
Dear Tom,

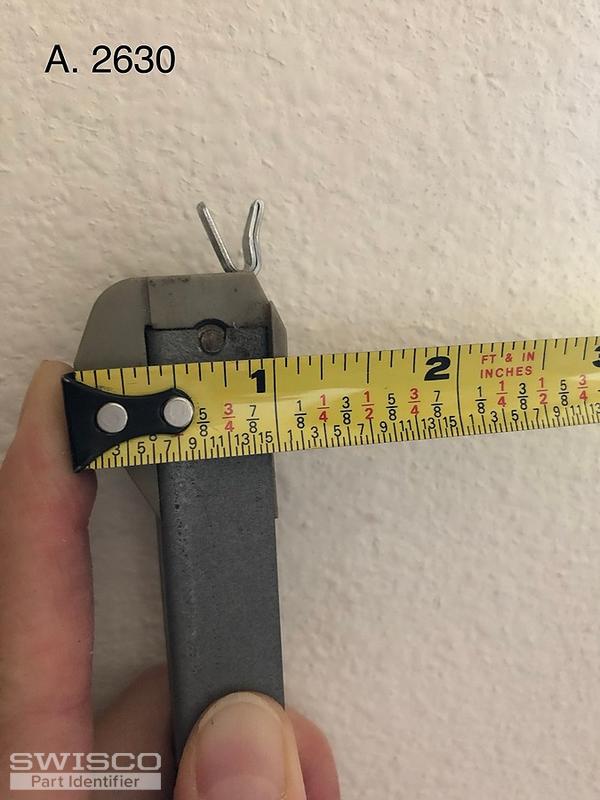

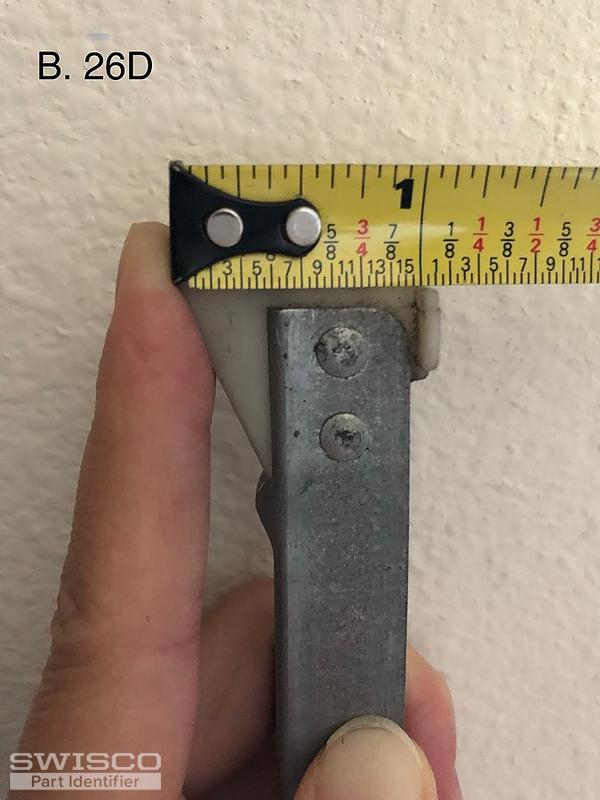

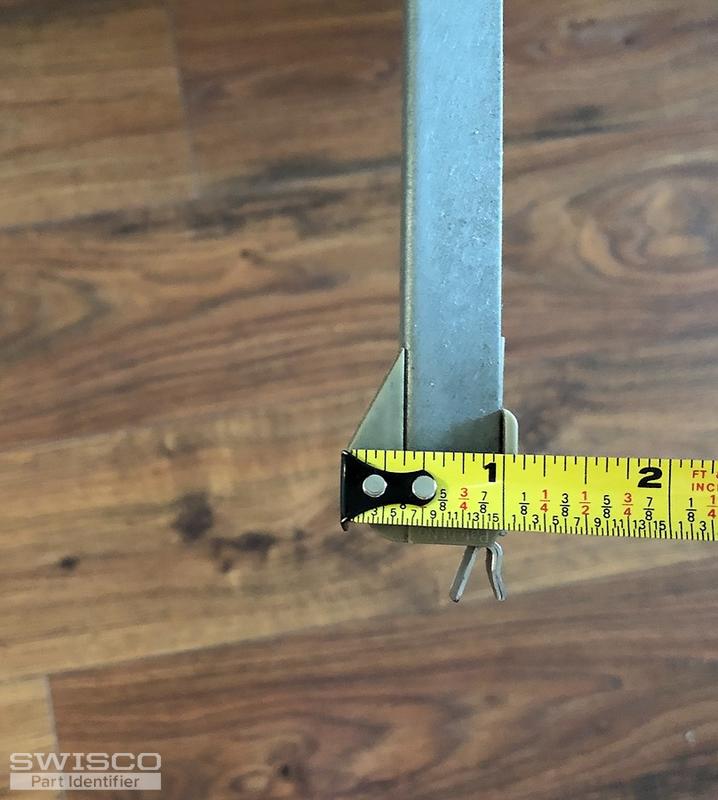

Thank you very much for your professional reply. For more accuracy of Channel Balance, I provide 4 more photos of balance A & B for your reference. I hope its help to observe in the size of shoes.

Many thanks.

David Liu
2 user uploaded images
Tom
Tom from SWISCO
SWISCO
Expert

Thanks! These photos confirm my recommendations. I am confident that the balances I mentioned will work for you.

Home Owner from California

Dear Tom,

Thank you for your response.

I have order 2 different items channel balance as your recommended and order Number: 1519990

Now, everything are set, thank you for your help.

David

Tom
Tom from SWISCO
SWISCO
Expert

You're very welcome! Thank you for the order, it means a lot. If you ever need anything else, you know where to find me.
