Balance rod

Question

Please help me identify what I need. This is from a impact window. The sash is about 36 lbs. the metal part of the rod is 30". The rod is stamped 29DS 38 BSI. I will need 6 of these.

Thank you,

Joe

Casey · Accepted Answer

Hello,

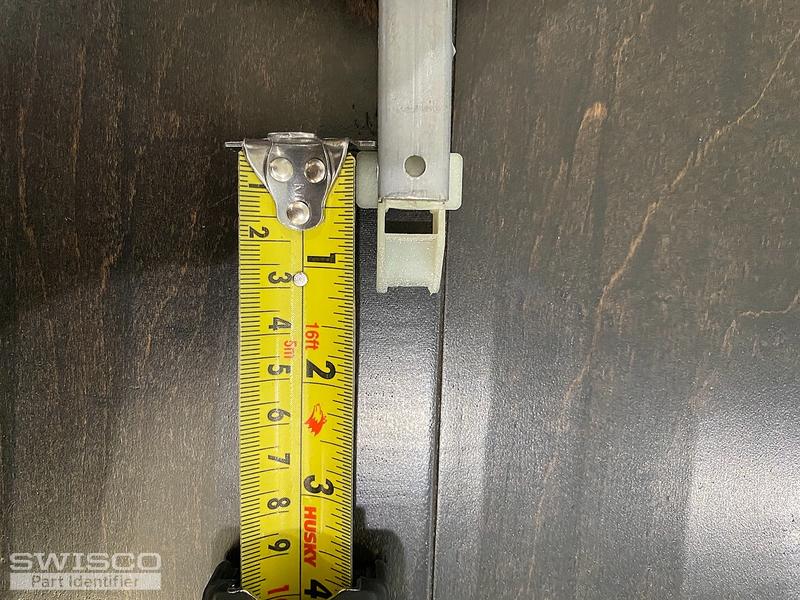

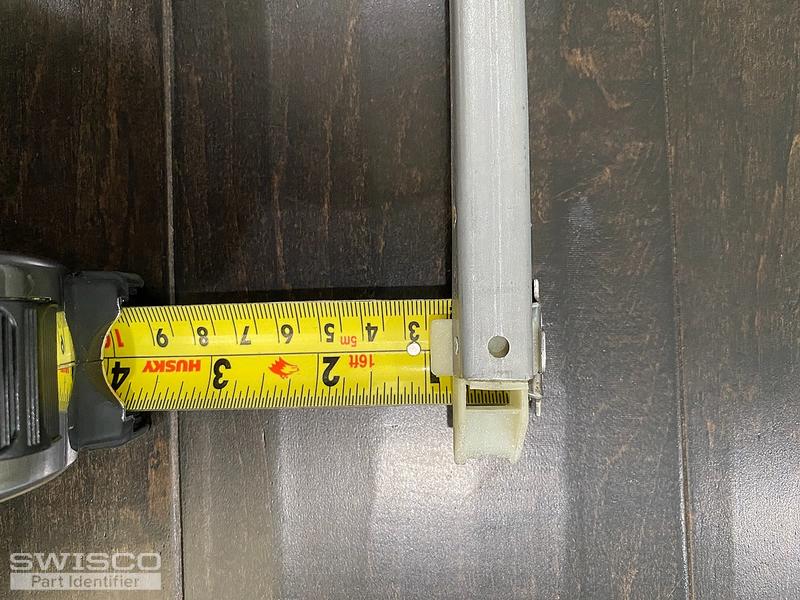

With this combination of attachments, you could have either an S380-30 or S385-30 channel balance. You’ll need to measure as shown below. The Series 380 has a 1" bottom attachment, and the Series 385 has a 1-3/32" attachment. Your balance stamp indicates that you may need 2965 spring strength options for your replacement balances to support a 35 to 39 lbs sash but you may want to weigh your sash to confirm. There is a chart on the product page that explains how to choose your option based on the sash weight.

Thank you and let us know if you have any other questions or concerns.

Comparison of the S378, S380 and S385 balance shoes.
