Balance series

Quick Learner from Florida
I have a balance stamped A2910. I was going to order 6 sets but then the series came up. How do I know which series I need? Thanks
4 Replies
Bob
Bob from SWISCO
SWISCO
Expert

Hello there. If this is a channel balance, that stamp tells us the strength of the balance, but not its identity. To know what kind or Series of balance you have, we need to see the nylon fittings on either end of the metal channel. The combination of fittings will determine the balance Series. Send us those pictures, and we should be able to narrow down what you need.

Quick Learner from Florida

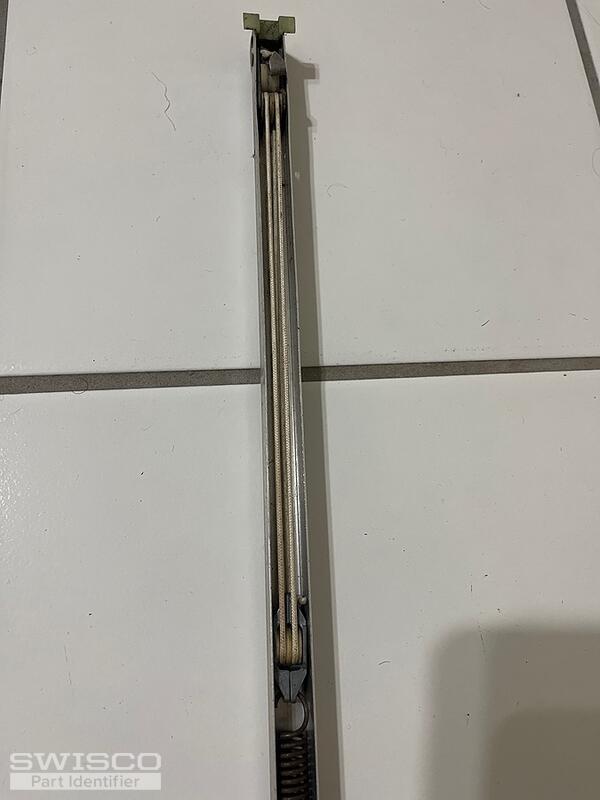

Thank you for the fast reply! Here are those pictures. Again, my balance says A2910 and I just don't know what series to order as I need multiple sets of the same balance. THANK YOU in advance for your help
4 user uploaded images
Bob
Bob from SWISCO
SWISCO
Expert

That's perfect, thanks. This looks like either an S380-30 or S3850-30 Channel Balance. The only difference between these two balances is the depth of the bottom nylon shoe, or the 'heel-to-toe' measurement. See the picture below to get what I mean. Compare both with your old hardware to see what matches best. In either case, choose 2910 as a stamp option. Let me know if you have any other questions.

Comparison of the S378, S380 and S385 balance shoes.
Comparison of the S378, S380 and S385 balance shoes.
