Balance shoe

Hello,

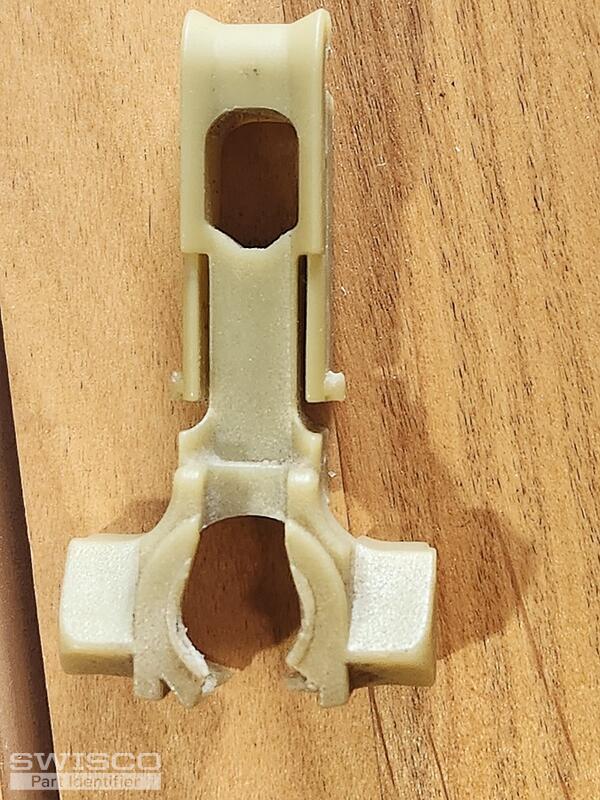

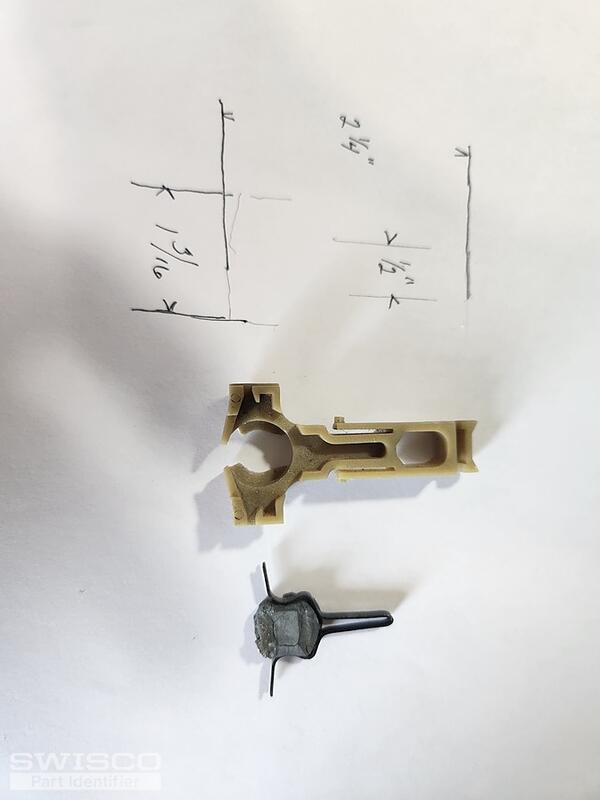

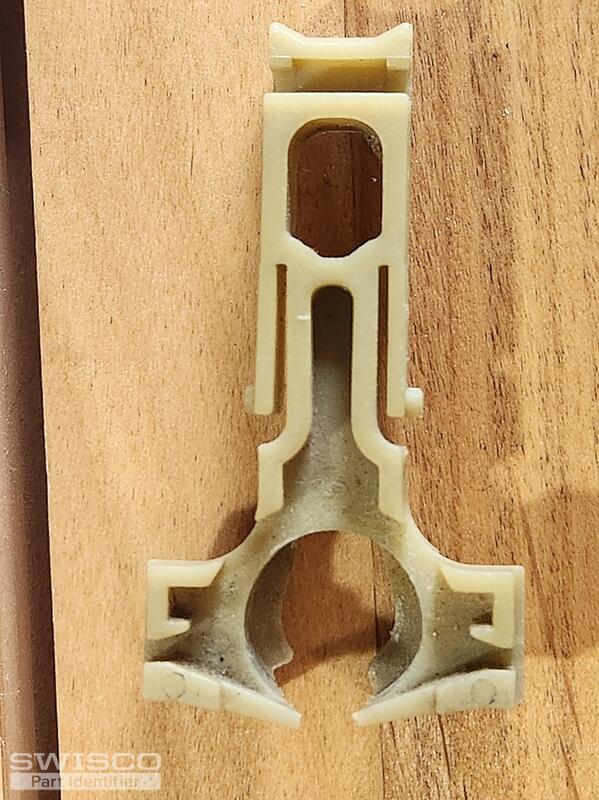

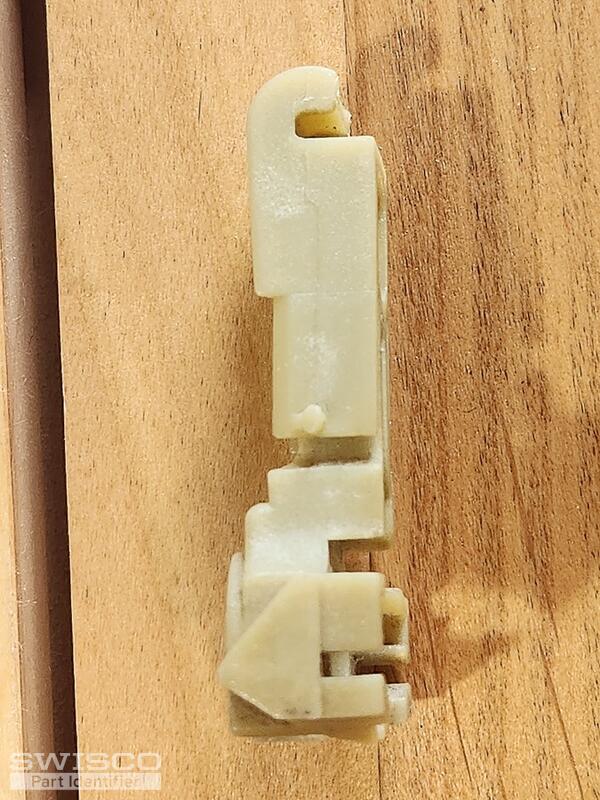

Your T-lock looks like it has a grooved stem similar to the 15-236 but yours appears to be longer. Also, note that the shoe measures 1-1/4" wide as shown below, which is common for these parts. To determine if this could work for your application, we would like to see how an intact T-lock shoe attaches to your balance channel. Thank you!

Dimensions for 15-236

View of closed cam on 15-236

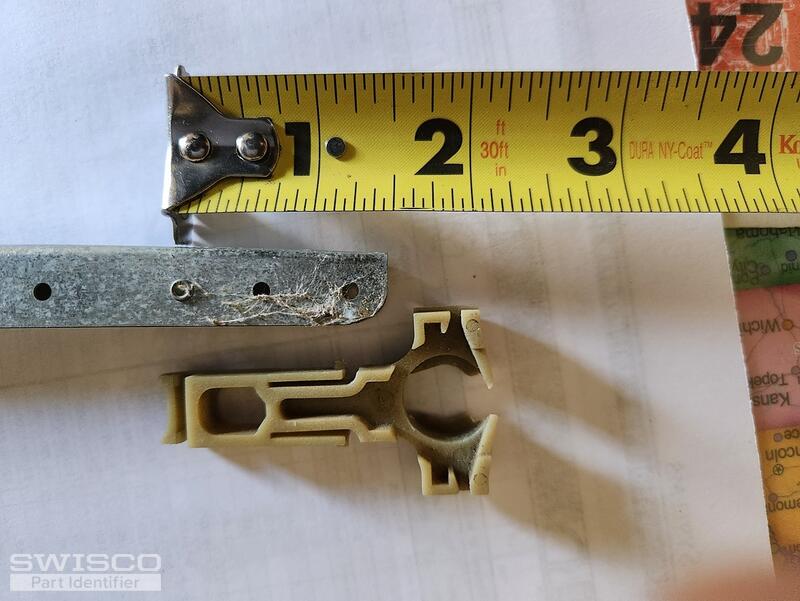

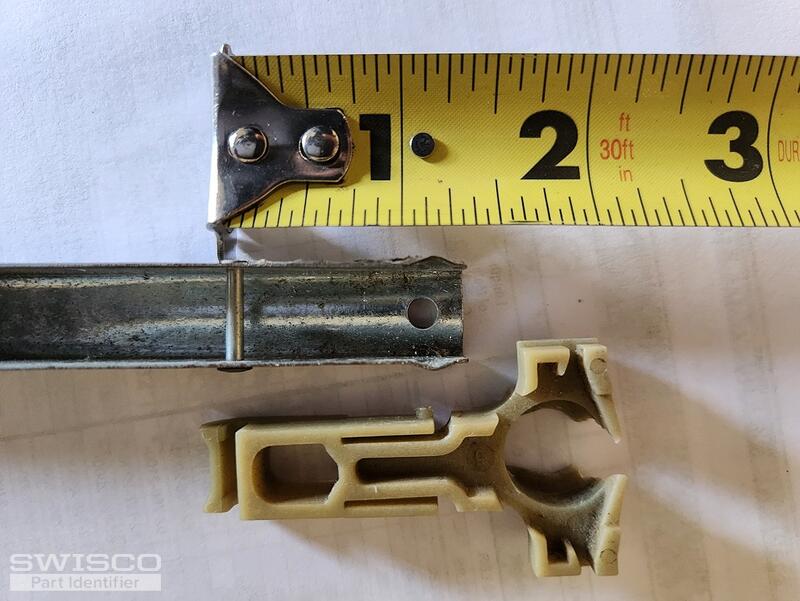

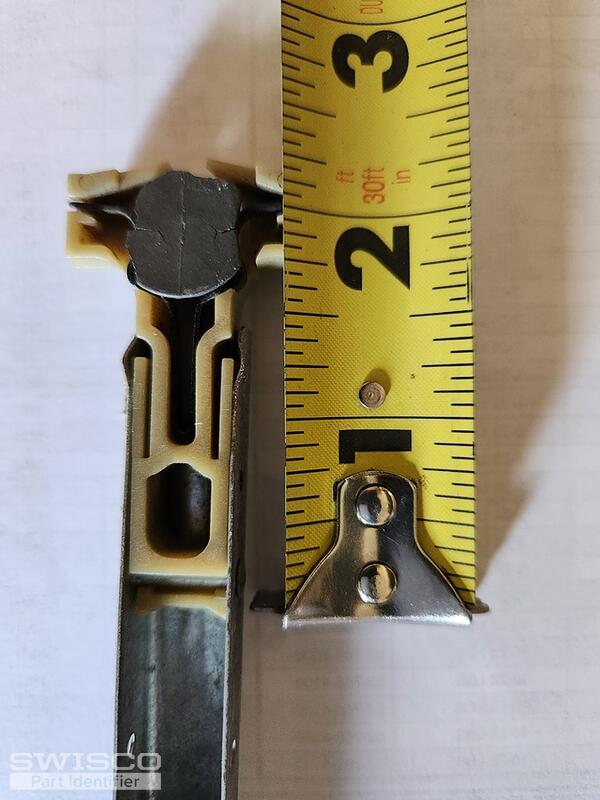

Unforutnately, it doesn't look like the 15-236 T-Lock shoe would fit your inverted balance channel as is since the balance manufacturer made a change to the T-Lock shoe. The rivet is now on the second hole of the balance channel and the pins lock into the last hole. One option would be to install a 60-005 rivet in the next to last hole to attach the 15-236 T-Lock shoe.
