Home Owner from California

Aug 7, 2023 3:21 pm

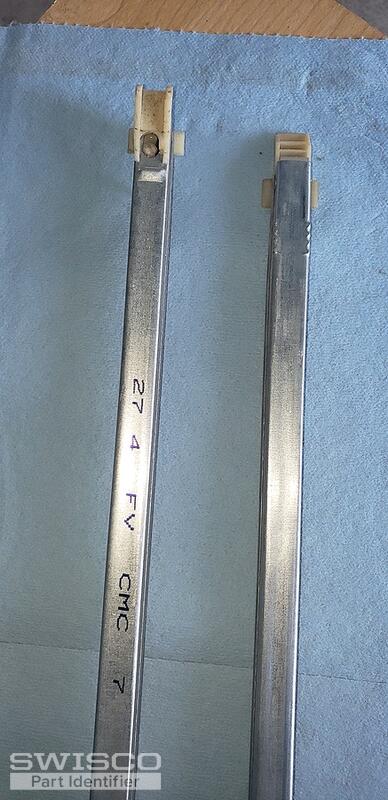

Hello there, I do have a 28 inches long window balance, I had enclosed a picture with number on it. Can you give some advice of which size is the right one? I need 4 pieces.

Thank you,

Walter

1 user uploaded image

7 Replies

Jasmine from SWISCO

Aug 8, 2023 12:53 pm

Thanks for reaching out! I confident that we can supply you with the right replacement. However, to confirm the balance you'll need for your window, I'll need to see a photo of the attachment in the photo from the front (or open side) of the channel. I'll also need to see a photo of the top plastic attachment.

Please let me know if you have any questions.

Home Owner from California

Aug 8, 2023 9:24 pm

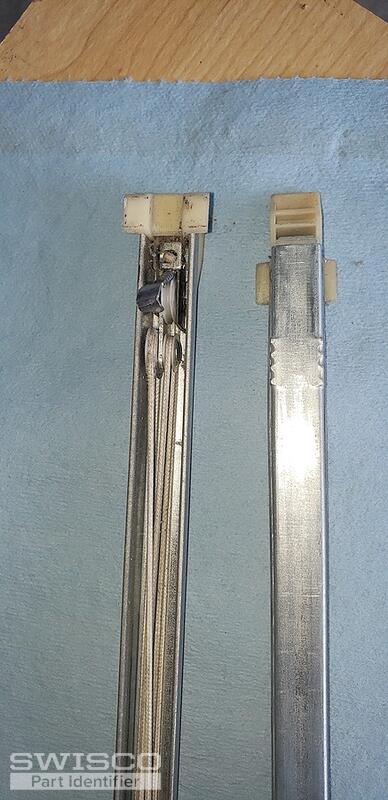

Thank you for your promptly response, here I had attached the picture you asked.

Thank you again.

Walter

3 user uploaded images

Home Owner from California

Aug 8, 2023 9:40 pm

1 user uploaded image

Jasmine from SWISCO

Aug 9, 2023 10:12 am

Hi Walter,

With this combination of attachments, you could have either an S380 or S385 channel balance. You’ll need to measure as shown below. The Series 380 has a 1" bottom attachment, and the Series 385 has a 1-3/32" attachment.

You will need a 28" balance with a 2740 stamp option. Please review and let us know if you have any additional questions.

Comparison of the S378, S380 and S385 balance shoes.

Home Owner from California

Aug 9, 2023 11:50 am

Thank you for all your help. I just followed your advice and placed my order.
Have a wonderful day

Jasmine from SWISCO

Aug 9, 2023 1:03 pm

No problem! Please let us know if you have any future hardware questions.
