Balance spring

A quick learner from San Diego CA says:

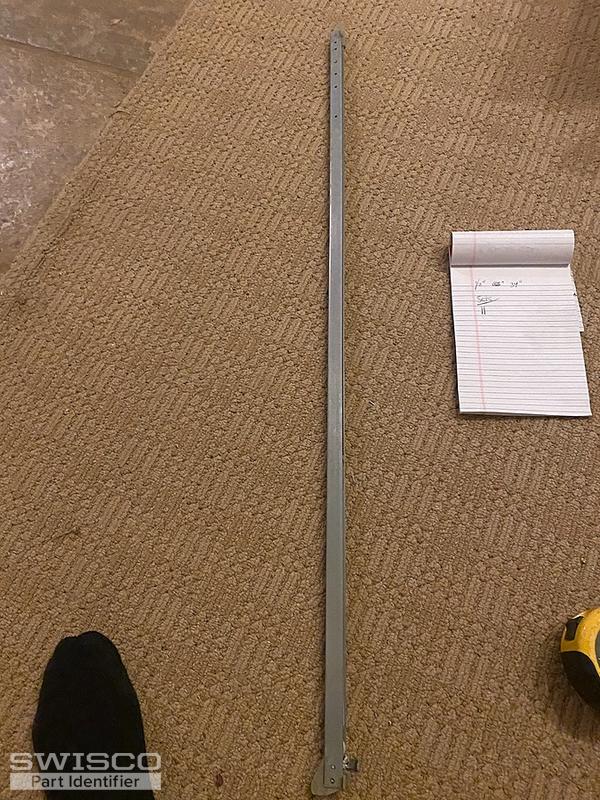

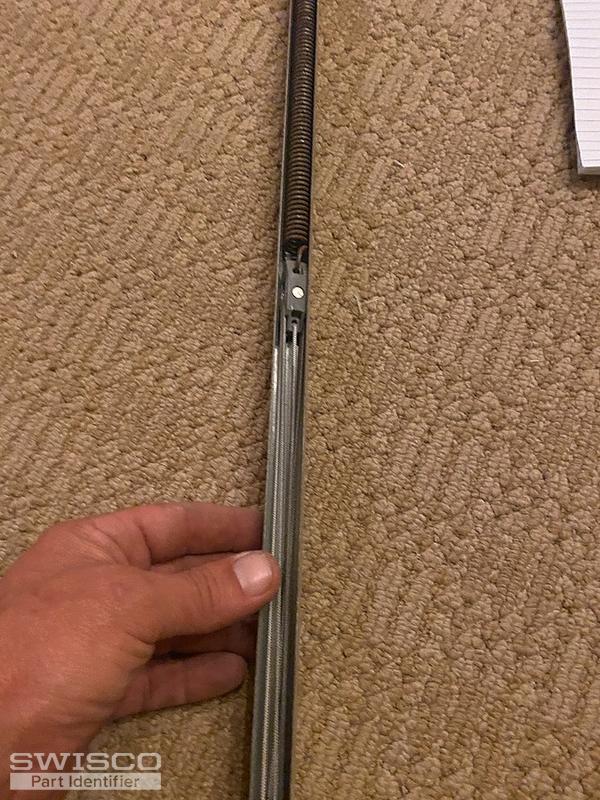

Balance springs for single hung window

.5" x 34"
Thumbnail of the uploaded file named 3ACCB584-14A1-48E6-B17E-2D1C7913020C.jpeg
Thumbnail of the uploaded file named F9350389-83F5-4576-99F2-1C5F4450F528.jpeg
Thumbnail of the uploaded file named F5ECF6AD-B9CD-486D-9D2A-E31F7F4FB208.jpeg
Thumbnail of the uploaded file named 7AD0BD54-C316-4E9F-B62E-1E5110C3FFB0.jpeg
Thumbnail of the uploaded file named 05935EB4-4B47-4767-B096-58416E193828.jpeg
Profile picture of Casey
Casey from SWISCO responded:

Hello,

With this combination of attachments, you could have either an S380-34 or S385-34 channel balance. You’ll need to measure as shown below. The Series 380 has a 1" bottom attachment, and the Series 385 has a 1-3/32" attachment. You'll also need to locate the stamp on the metal channel to choose the corresponding spring strength option for your balances.

Thank you and let us know if you have any other questions or concerns.



Comparison of the S380 and S385 balance shoes.
Comparison of the S380 and S385 balance shoes.
A quick learner from San Diego CA says:

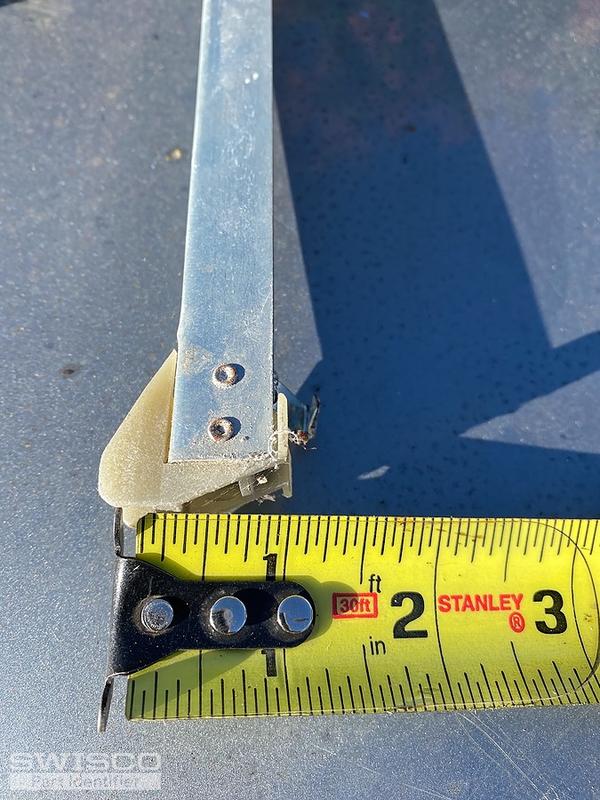

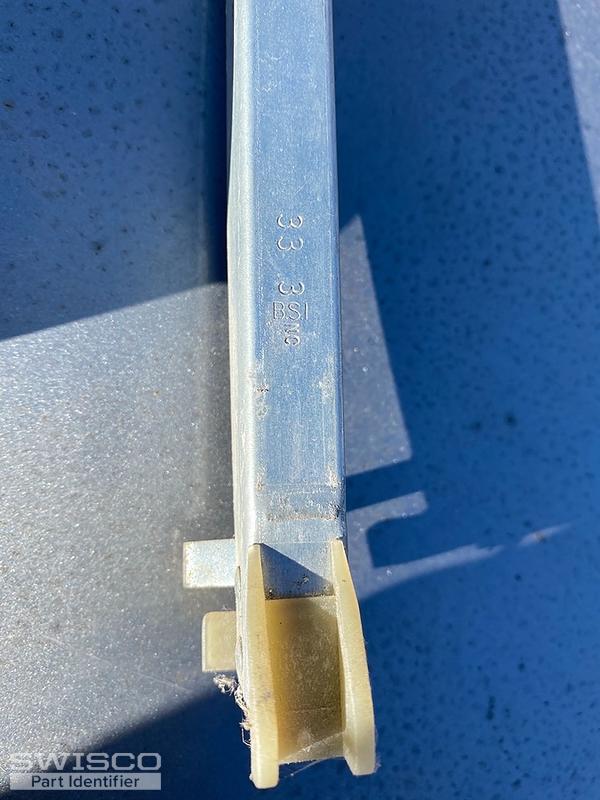

It looks to be 1 -3/32 wide and the stamp reads 33 3 BSI.

I need 7 sets of the balance springs and 14 sets of clips.
Thumbnail of the uploaded file named C0C93C5A-DE33-478F-858B-2AE1712E7118.jpeg
Thumbnail of the uploaded file named B8CCF643-2D5C-47FE-8F63-874FE1B32212.jpeg
Profile picture of Casey
Casey from SWISCO responded:

That would be our S385-24 with a 3330 spring strength option. I'm not sure what clips you're looking for though? Could you show us?
