Balance springs

A quick learner from Deland, Fl says:
Unfortunately both springs came loose from window. There is a part number on the channel section, 2430Y
Thumbnail of the uploaded file named 9BF83308-1B55-43D7-A60E-4DC43CEA0880.jpeg
A quick learner from Deland, Fl says:

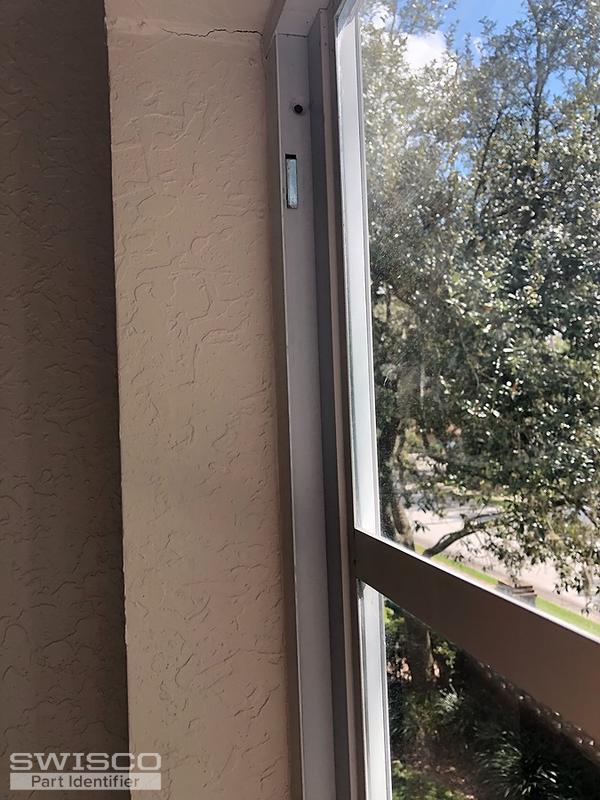

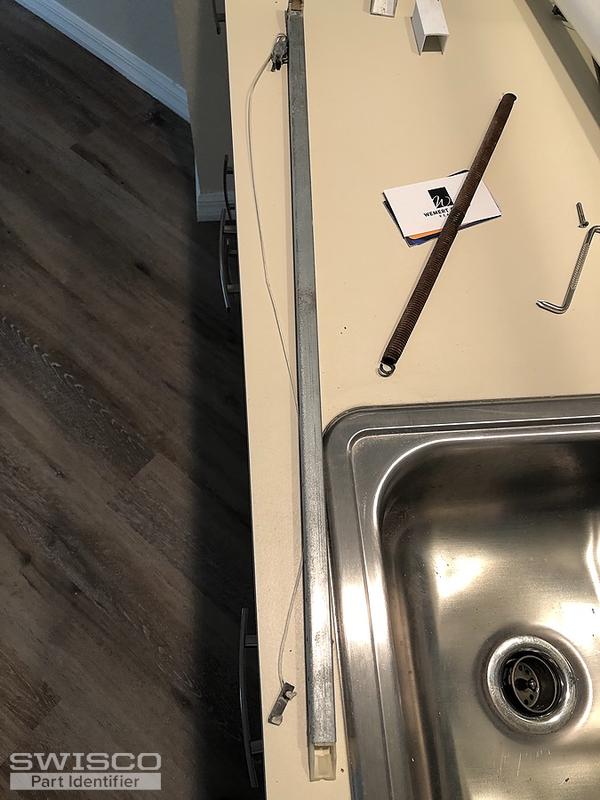

Additional photos and measurements
Thumbnail of the uploaded file named 166A3C67-2313-47BA-9878-545458D1FC2C.jpeg
Thumbnail of the uploaded file named 03EBD397-0513-4DE1-9ED8-932EF7450465.jpeg
Thumbnail of the uploaded file named 002A58F9-673B-4952-BFF1-F72D59E57A58.jpeg
Thumbnail of the uploaded file named A7B69228-07E2-4AD3-B477-0A02B5908186.jpeg
Profile picture of Casey
Casey from SWISCO responded:

Hello,

It looks like you have either our S351-25, with a 15-002 bottom attachment, or S390-25, with a 15-001 bottom attachment. Take a look at the image below to determine which balance you'll need. You'll also need a 2430 spring strength option for your replacement balances. Thank you!


Comparison of the S351 and S390 balance shoes.
Comparison of the S351 and S390 balance shoes.
