Balance springs and top sash guide

Contractor from Texas

Feb 9, 2017 5:30 pm

I need 4 channel balance springs I believe 351 the number on them is 2810 my windows weigh
9.7 pds (16"X 29") it measures 29" long 1/2" wide and 5/8" tall They are Jordan windows 28 years old I think the sash is a 18-166?? and I need six of these

3 Replies

Contractor from Texas

Feb 9, 2017 5:57 pm

better pics

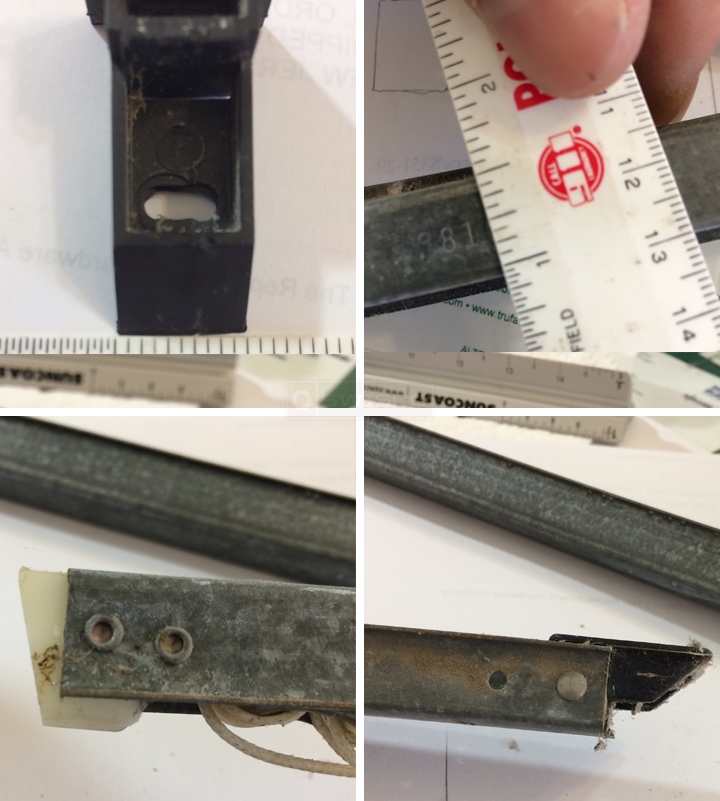

User submitted photos of a window balance.

Paul from SWISCO

Feb 15, 2017 11:38 am

The Series 351 comes with the 19-002 top and 15-005 bottom, so as long as those match what you have then you should be good to go. As for the top sash guide, see how well the dimensions of the 18-166 match what you have.
