Balance springs and weather stripping for 3 windows

Question

We have 3 windows of the same size. They each have 2 balance springs, 1 bottom rubber tube weather stripping and 2 wool pile weather stripping on the sides.

The main spring channel is 28" long.

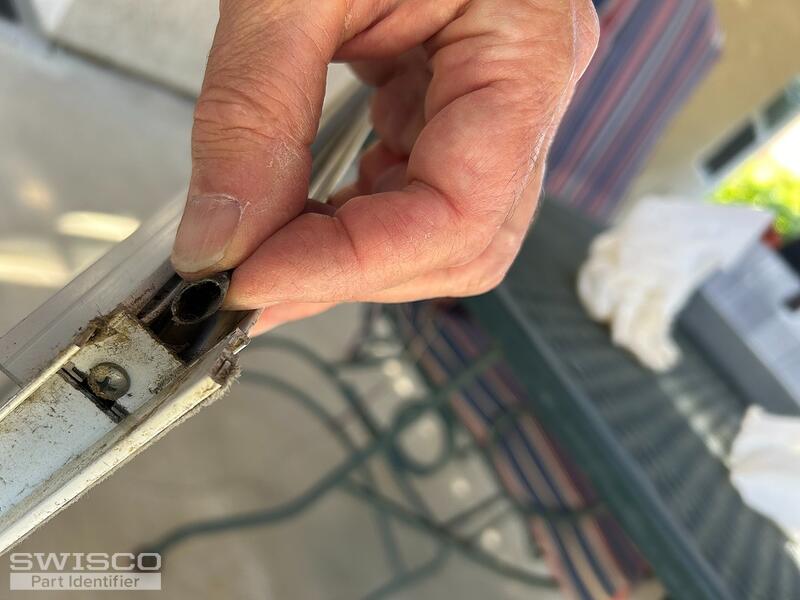

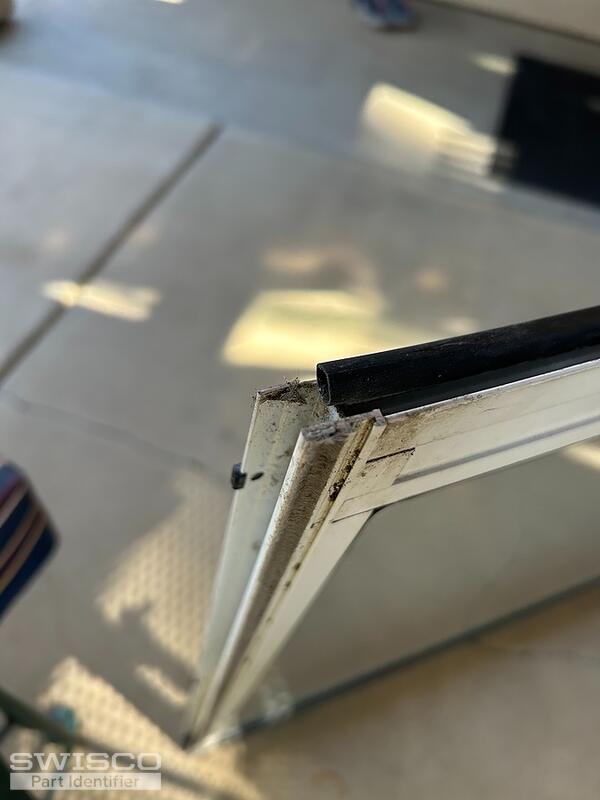

The bottom tube weather stripping is 3/8" diameter with a channel t bottom of 34" long.
The side wool pile strippings are both 3/16" card slot width x 3"16" high pile.

Total
6 balance springs
3 - 34" long tube weather stripping
6- wool pile weather stripping 3/16" x 3/16"

The wool pile seems compressed so 3/16" is a compressed estimate. It seems to have a plastic strip in the middle of the pile.
I'm not sure of the card slot size of the rubber tubing. I have included pictures for everything. I can supply more if needed.

Emily · Accepted Answer

Hello there!

Thanks for reaching out to us. I'm afraid I can't ID the channel balance or the bulb seal from these photos. We would need to see clear photos of the top fitting on the other end of the balance. For the seal, can you fully remove it from the window and show us the undamaged end profile?

As for the pile, we have the 58-002 and 58-021 which measure 3/16" x 3/16". Take a look and see what you think.

Dimensions for 58-002 white wool pile

Profile view of 58-021
