Balance top

Home Owner from Pacifica, ca.
Feb 23, 2023 3:57 pm

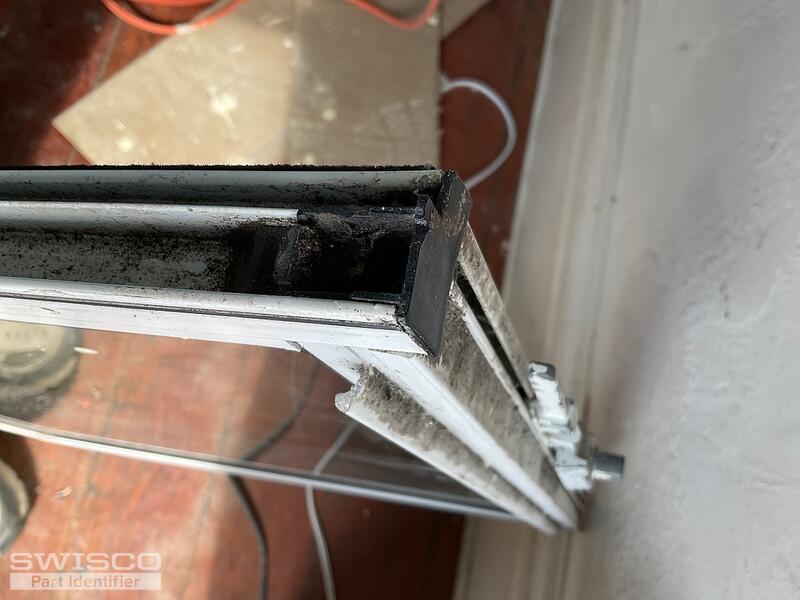

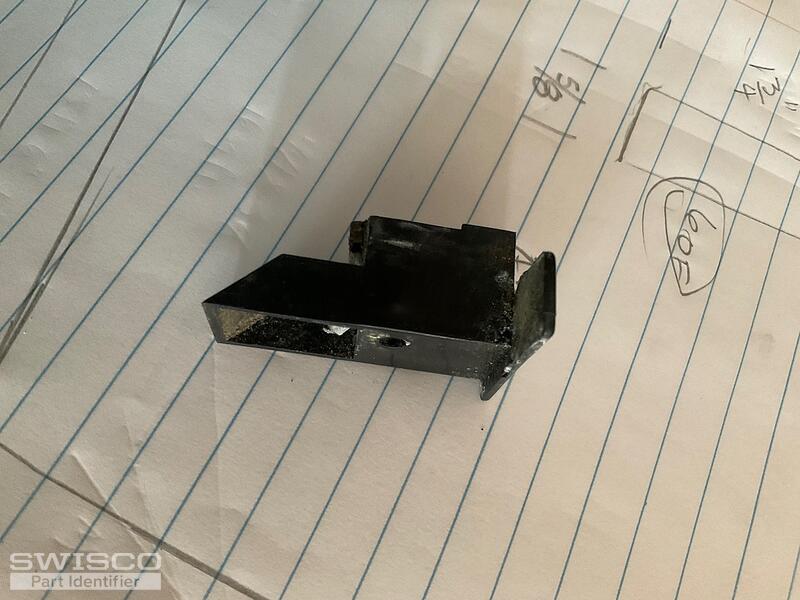

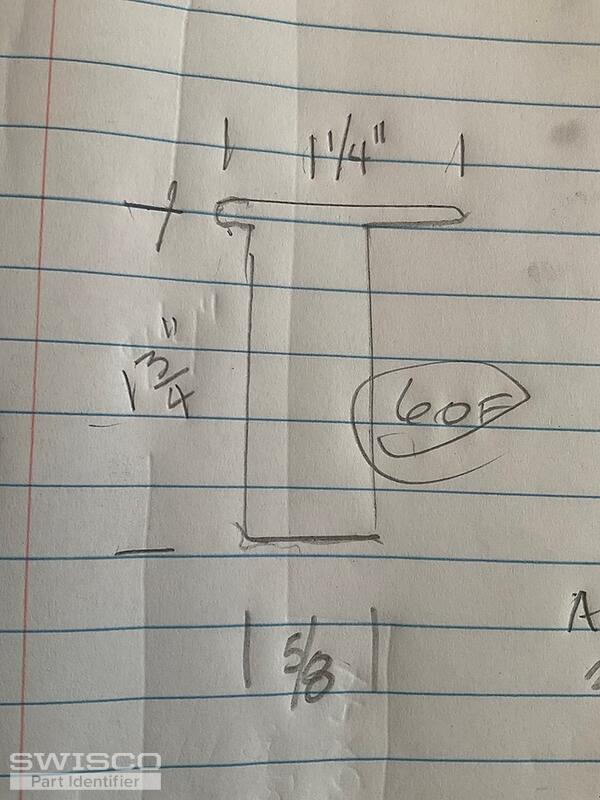

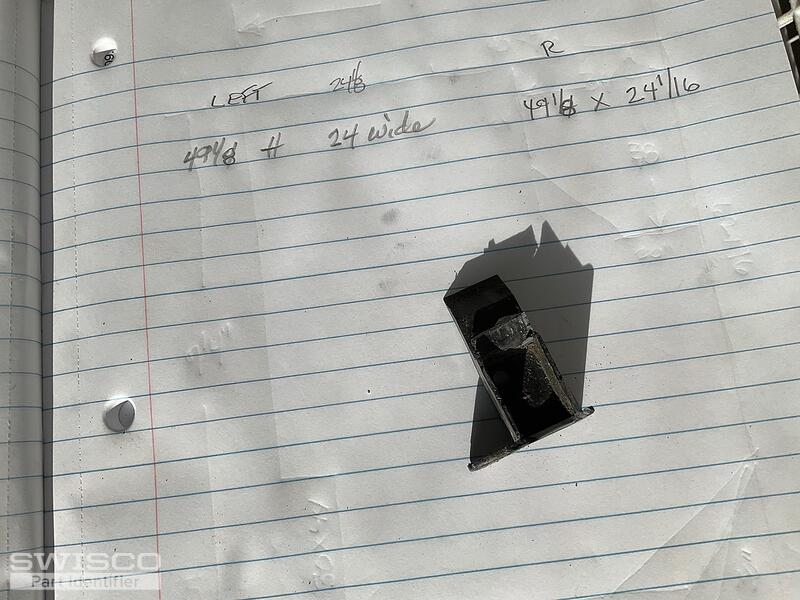

I couldn't find a balance top that looked like a match, any help appreciated! Thanks
B678DA9C-141D-46C6-8E59-26ACE256873E F0DD8765-E17A-4E80-92BE-D5B4FF20DE8B F8F216F7-9A08-44D9-8018-6D6BDC030E4C D8DC9399-F69E-4562-8FC4-6DF8F2271DDE
4 user uploaded images
1 Replies
+ Add a Comment
Casey
Casey from SWISCO
Feb 24, 2023 11:34 am
SWISCO
EXPERT

Hello,

We have recommended our 18-172 to a customer with a similar top sash guide in the past. Take a look and see how the dimensions below. The one thing that I can't account for is the offset of the screw hole in your guide. If the dimensions match up, you may still need to drill a new hole in the 18-172 to install it. Thanks for posting!

Side view of 18-172
Side view of 18-172

Detail of 18-172
Detail of 18-172

+ Add a Comment
