Balance and pivot shoes

Handy Person from Princeton, NJ
Any ideas?

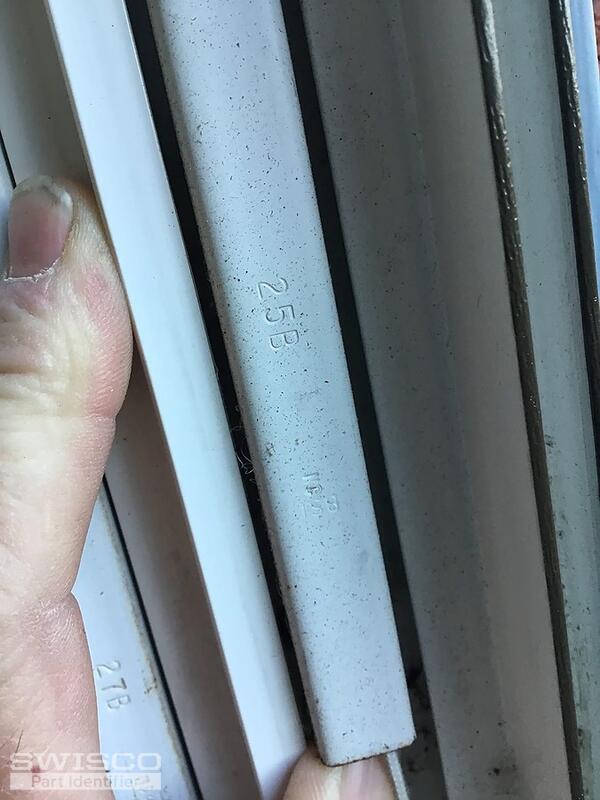

5 user uploaded images
2 Replies
Casey
Casey from SWISCO
SWISCO
Expert

Hello,

It looks like you may have balances similar to the S770, which uses a terminal clip to attach the pulley to the pivot shoe. With that being said, you'll need to confirm that your balances use a screw at the top of the channel for installation.

Close up view of the Series 770 balance top.
Close up view of the Series 770 balance top.

Close up view of the Series 770 balance bottom.
Close up view of the Series 770 balance bottom.

As for the pivot shoe, the 15-135 comes to mind but you'll need to remove your shoe to confirm the width and thickness match the measurements below. Thank you!

Alternate image for 15-135
Alternate image for 15-135
