Balance and sash guide

A handy person from Staten Island says:

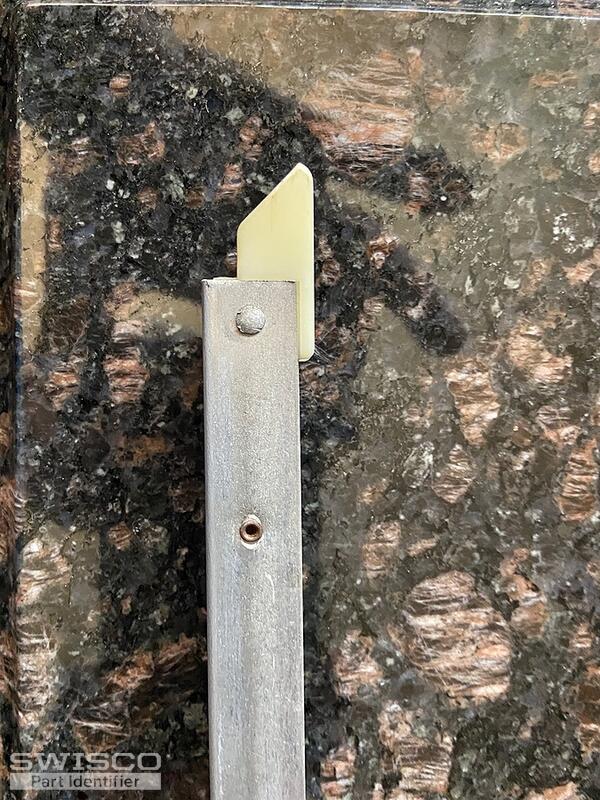

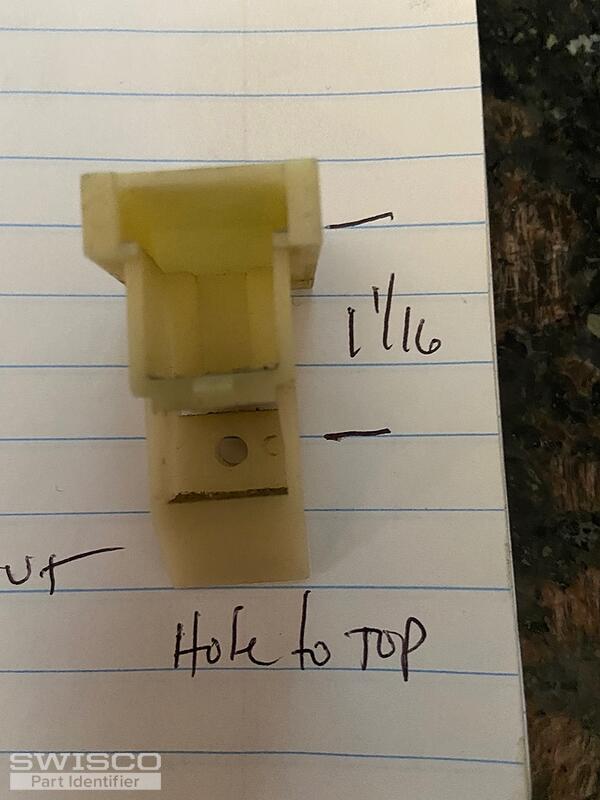

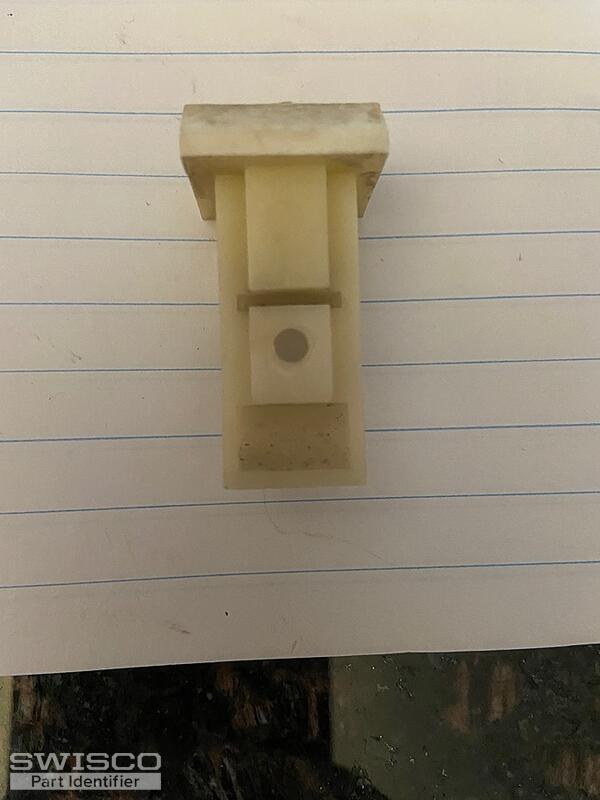

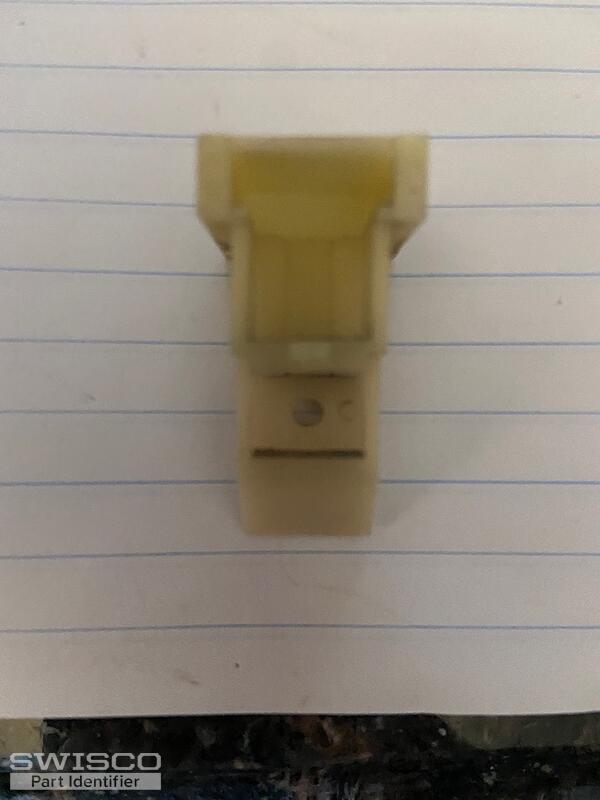

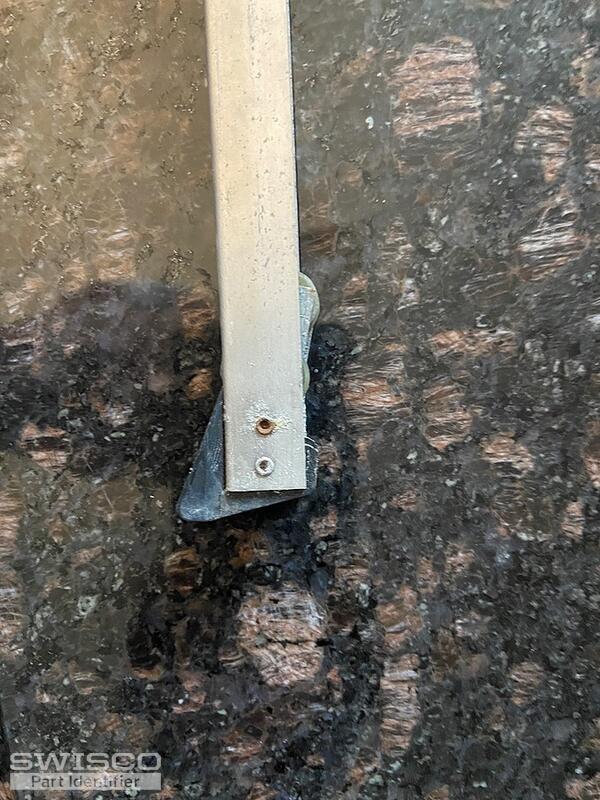

Having difficulty locating these balances with the top and bottom. The metal part of one balance measures 24 7/16 stamped 2430. The other metal part balance measures 18 1/2" and is stamped 1820. The sash guide pics show the different dimensions
Thumbnail of the uploaded file named 70CC7156-2F77-4093-A1E7-0F49E2E05240.jpeg
Thumbnail of the uploaded file named E28C1855-5409-4B21-8019-9DC47F04A4DD.jpeg
Thumbnail of the uploaded file named 51927D79-3325-4357-859C-1E81746A69F6.jpeg
Thumbnail of the uploaded file named CFD982A8-1DBC-46EC-8D0E-845FC788769D.jpeg
Thumbnail of the uploaded file named 66628A38-7E30-4051-AF38-D1FF24C33C20.jpeg
A handy person from Staten Island says:

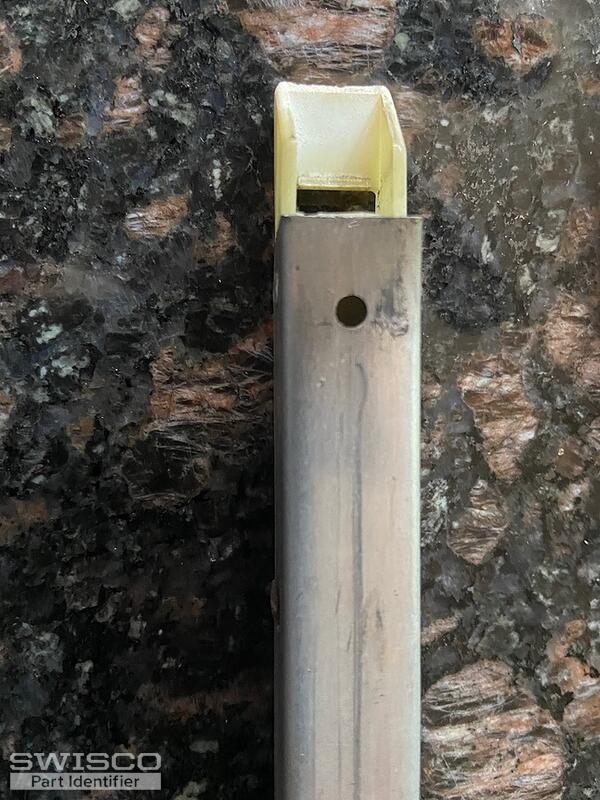

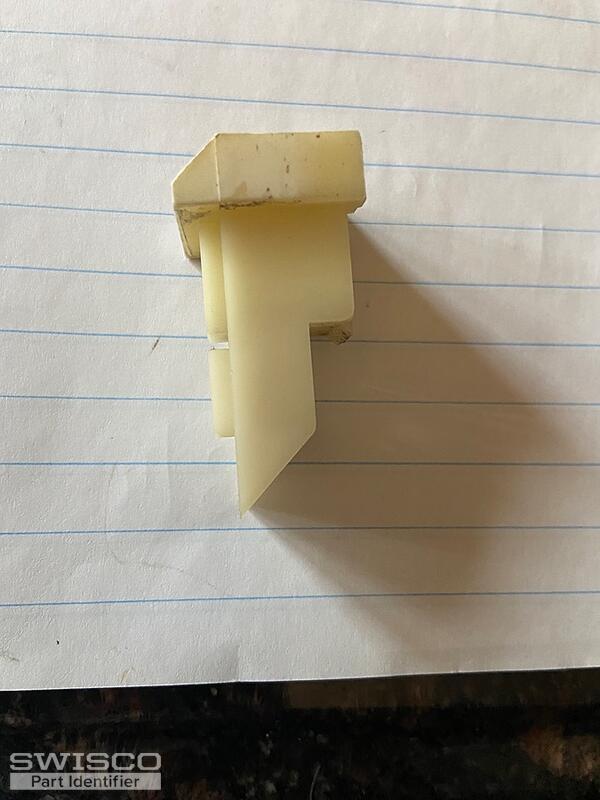

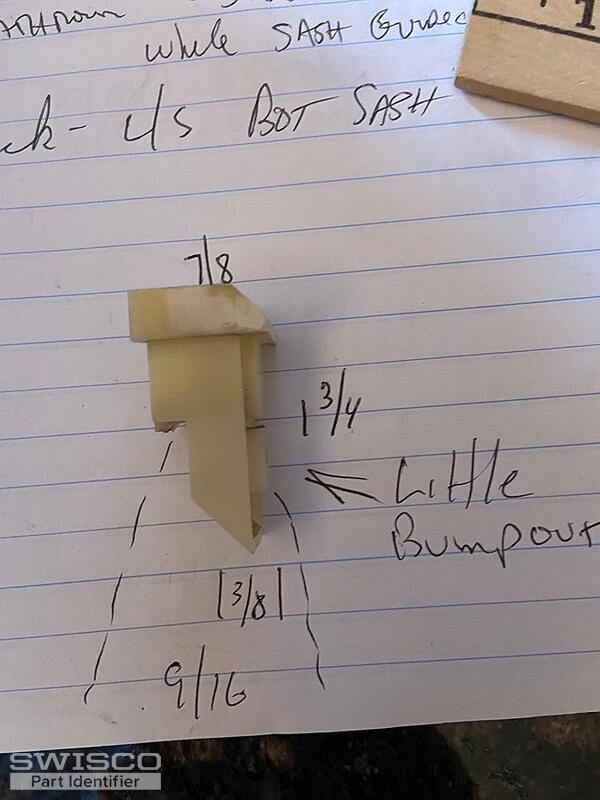

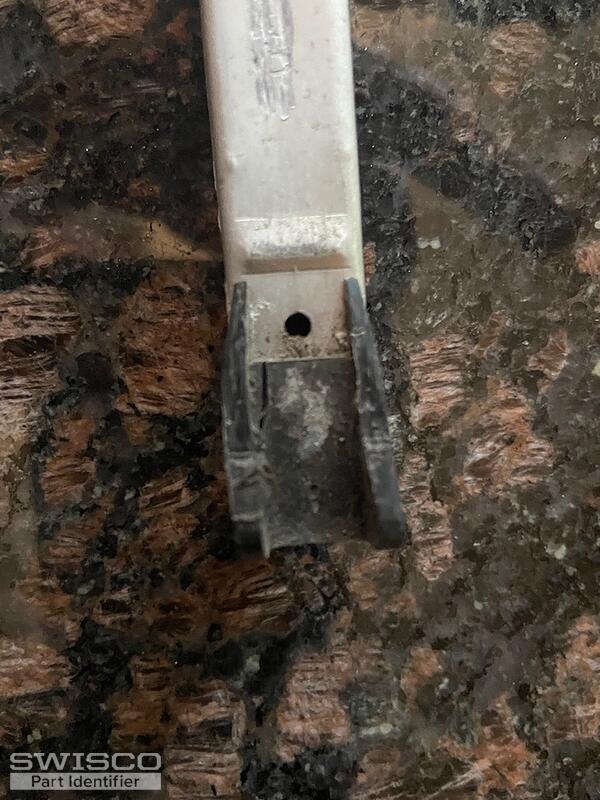

Having difficulty locating these balances with the top and bottom. The metal part of one balance measures 24 7/16 stamped 2430. The other metal part balance measures 18 1/2" and is stamped 1820. The sash guide pics show the different dimensions Second of two pics.

Thumbnail of the uploaded file named 37C9F6C7-25B0-4AA4-88E2-70ECB8C3F901.jpeg
Thumbnail of the uploaded file named 907D6477-2890-4FD7-9F0D-E0825B1CE63B.jpeg
Thumbnail of the uploaded file named 46F0AA8D-77C5-4868-9BA4-2F81A6315EA4.jpeg
Thumbnail of the uploaded file named 141A9650-FEA2-4C52-96FF-B616FA447C9A.jpeg
Profile picture of Casey
Casey from SWISCO responded:

Hello,

Your top sash guide resembles the 18-110 . Take a look and see how the specifications listed on our product page compare to yours.

As for your balances, I suspect you have either our S351 , with a 15-002 bottom attachment, or S390 , with a 15-001 bottom attachment. Please note that a balance with a 2430 stamp will normally have a 25" mental channel and 1820 would normally be 19" long, not including the end attachments.

Take a look at the image below to determine which balance you'll need. Thank you!

Comparison of the S351 and S390 balance shoes.
Comparison of the S351 and S390 balance shoes.
