Balance and sash guide replacement

A home owner from Florida says:
March 23, 2021
Hi,

Trying to ensure I order the correct parts. Have several broken sash guides and window balances. I want to replace them for all my windows. I have 15 windows, approximately 34 in wide. 5 are not standard size approximately 51 in. The pictures are from one of the big windows.

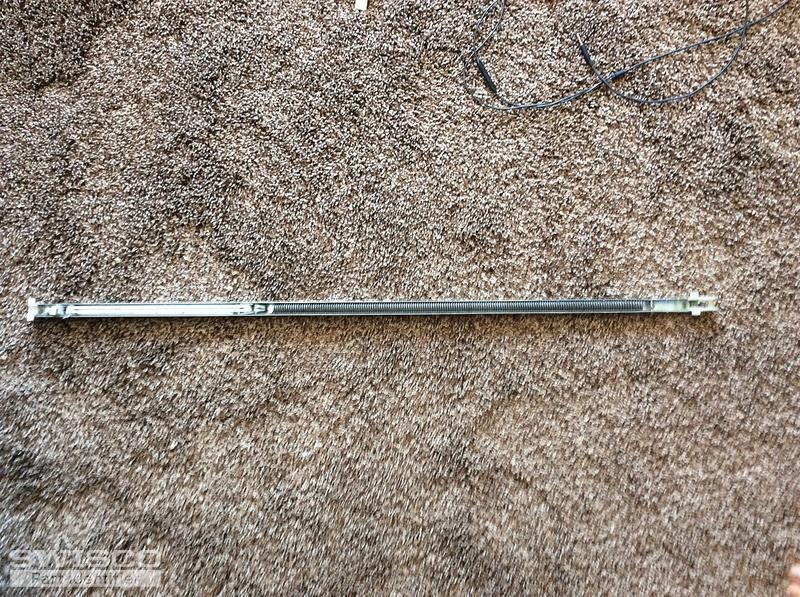

Thumbnail of the uploaded file named image.jpg
Thumbnail of the uploaded file named image.jpg
Thumbnail of the uploaded file named image.jpg
Thumbnail of the uploaded file named image.jpg
A home owner from Florida says:
March 24, 2021
Took measurements of everything i could think of.

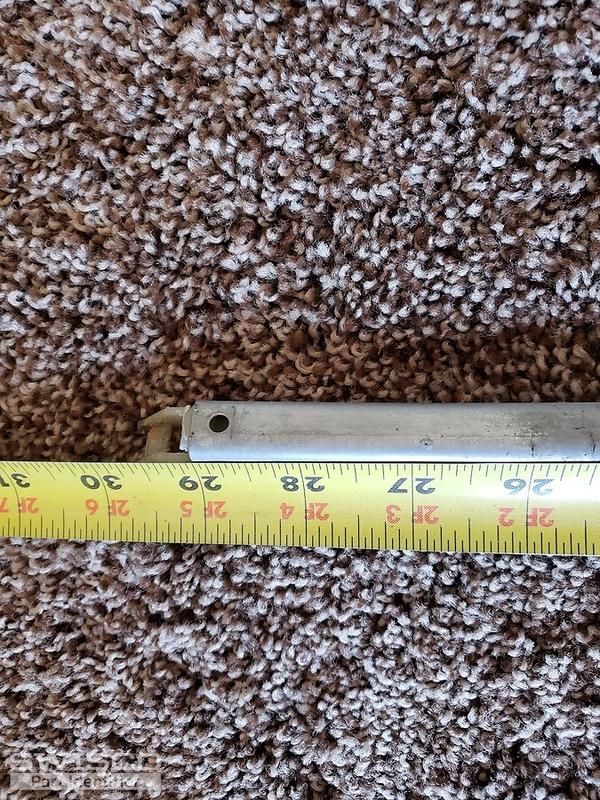

Thumbnail of the uploaded file named 16166043976235715815450491591166.jpg

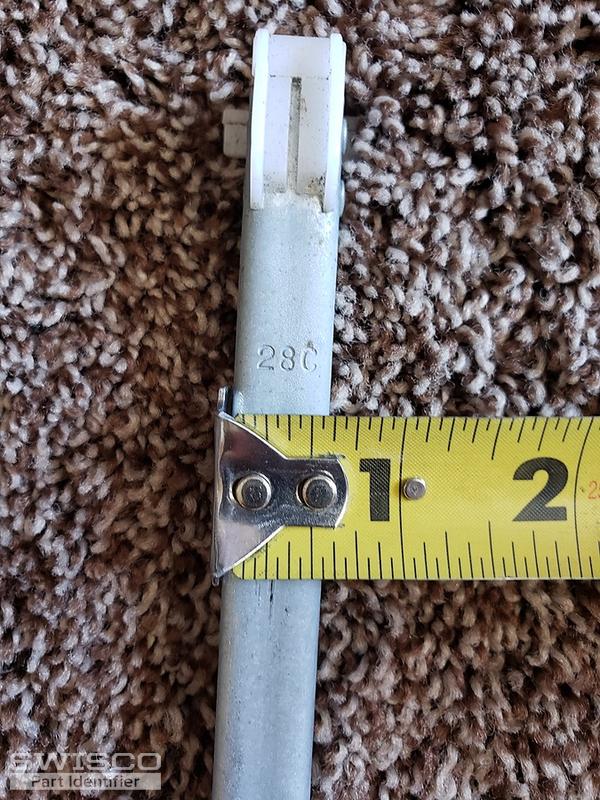

Thumbnail of the uploaded file named 1616604440616198040816410985603.jpg

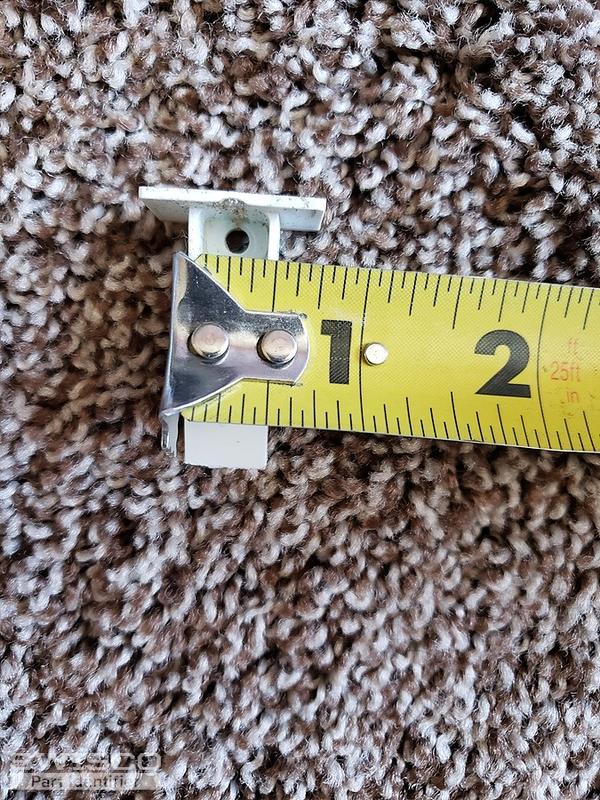

Thumbnail of the uploaded file named 16166044642722317122944785996919.jpg

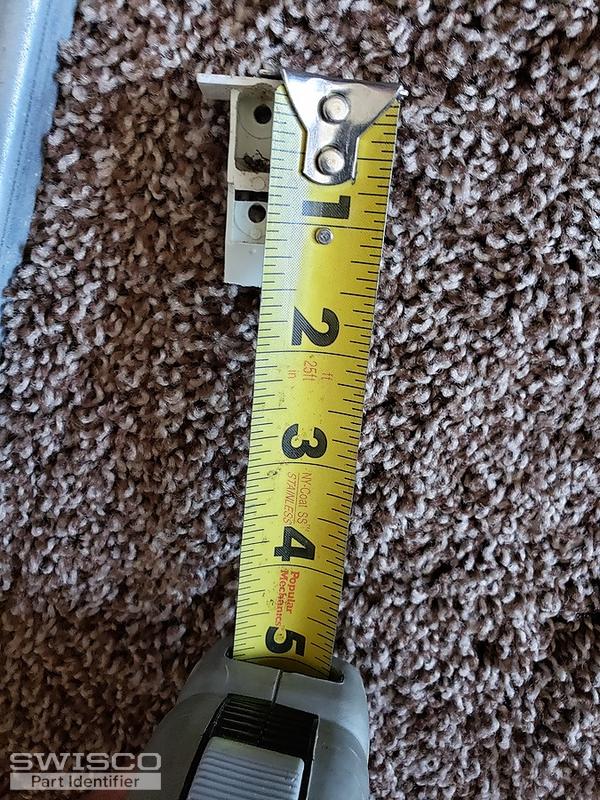

Thumbnail of the uploaded file named 16166045176862248881321402505435.jpg
Profile picture of Tom
Tom from SWISCO responded:
March 24, 2021

Thanks for your photos. Based on what I see here, you have either our Series 380 or Series 385, depending on the depth of the bottom shoe. That's the only difference between them. I recommend measuring your shoe and referring to our dimensions to confirm the best match.

For the top sash guide, see our 18-180.
1/2" Top Sash Guide
1/2" Top Sash Guide
18-180
$1.67
