Channel balance identification

Start a new Discussion

Handy Person from Puerto Rico

Mar 21, 2018 8:11 pm

Hi need to find replacement balancer for Windows on the balance is written 28c

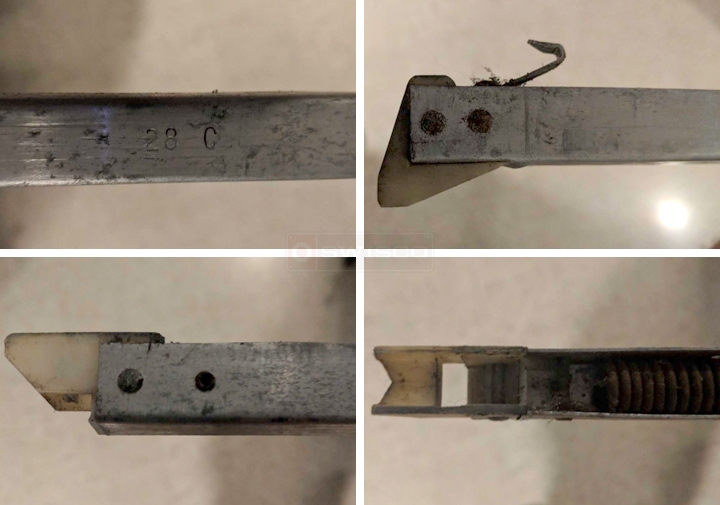

User submitted photos of a window balance.

4 Replies

Tom from SWISCO

Mar 26, 2018 11:09 am

Based on your photos, the bottom balance shoe depth looks to be 1-1/8". If so, I would recommend that you use S390-29 Channel Balance. The spring weight code 28C that you are referencing translates to our 2830 option. Let me know what you think!

Handy Person from Puerto Rico

Mar 26, 2018 11:44 am

I thought it was the s351 because I measure the bottom show and it meassure 1

Tom from SWISCO

Mar 26, 2018 1:08 pm

If the bottom shoe is only 1" deep, instead of 1-1/8", then the Series 351 would be the way to go. I was just eyeballing your shoe, so definitely follow your measurements.
