Bob from SWISCO responded:
October 29, 2019

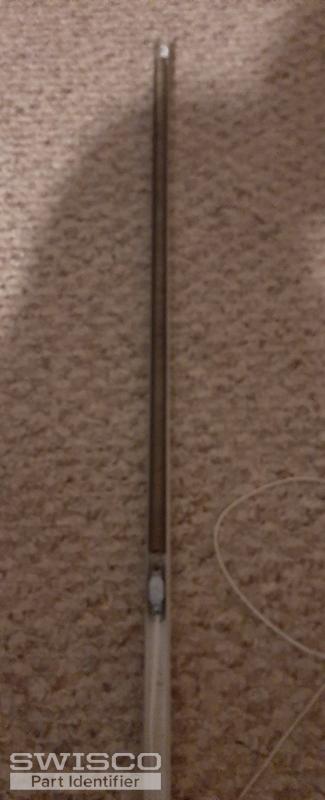

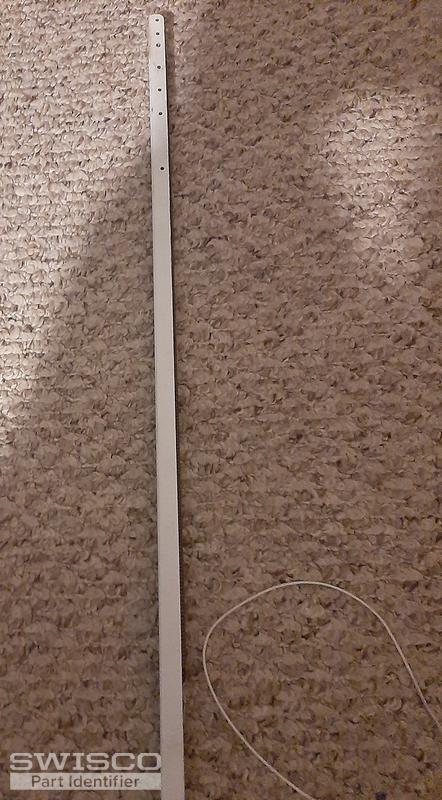

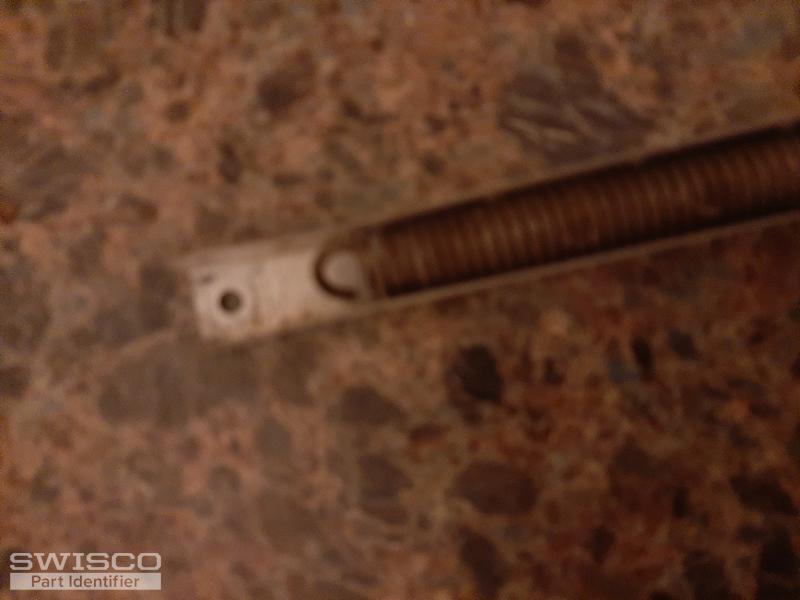

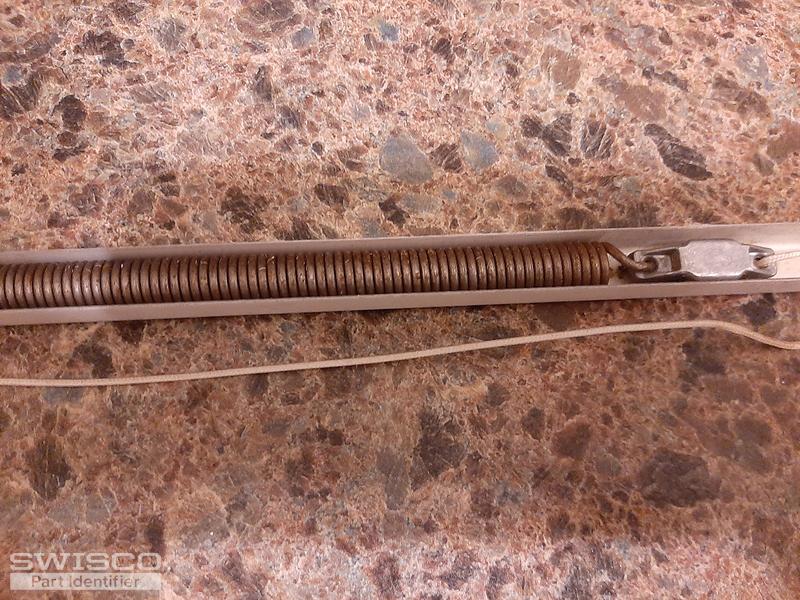

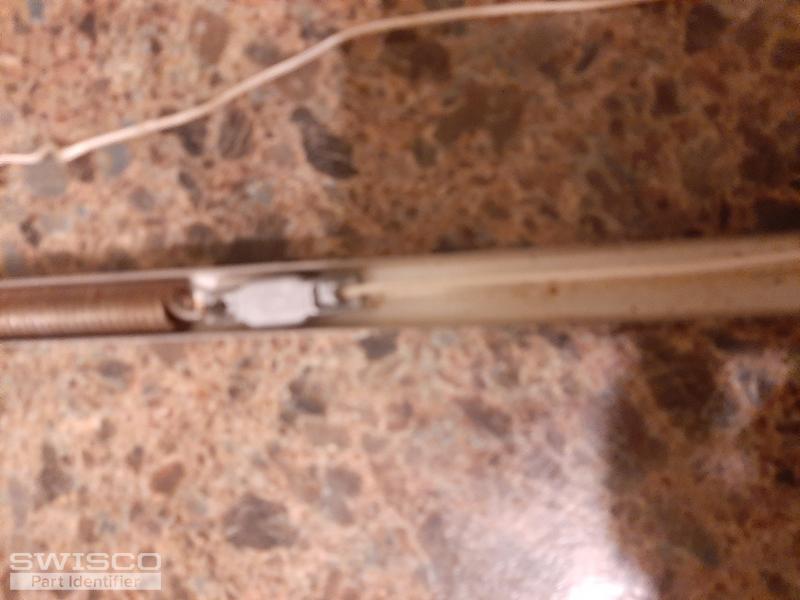

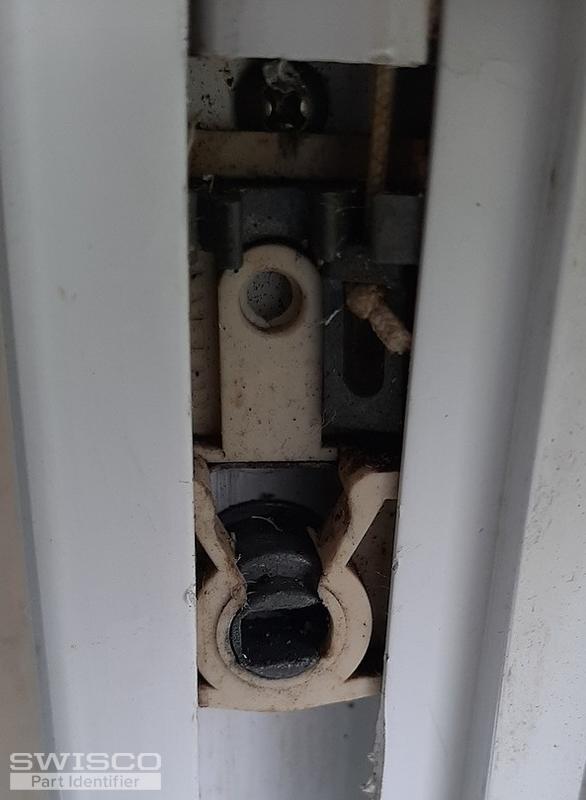

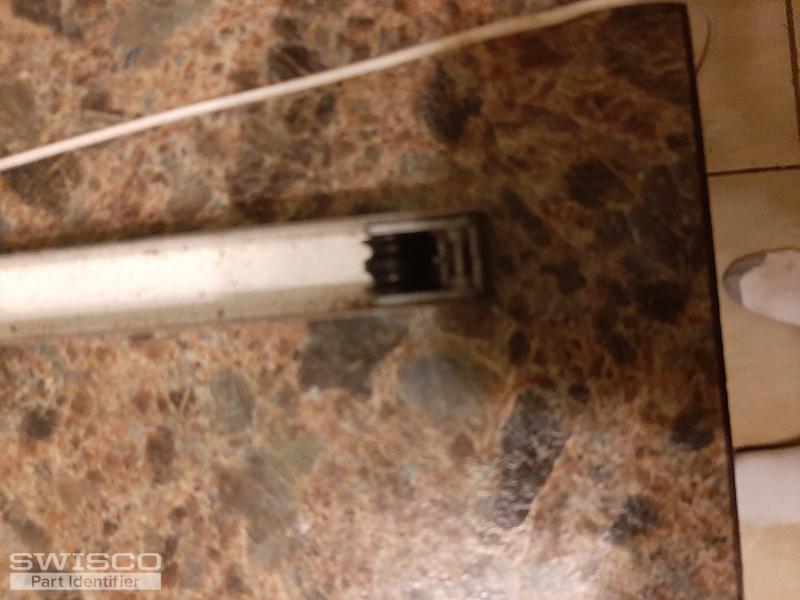

Thanks for writing in. I am confident we can replace this channel balance for you, but we need to see clearer pictures of the attachment, fitting, or hook that connects to the pivot shoe at the bottom, as well as how the balance connects to the top of the window track. A picture of any stamp code on the metal channel would also be helpful. From there, we'll try and narrow down what you need. Many thanks. |
Tom from SWISCO responded:
October 31, 2019
Hi there, maybe I can help. This looks like our Series 770 channel balance to me. If the metal channel is 34" long, you want the S770-34. You'll need the stamp off the original metal channel to determine the proper stamp. This indicates the calibration of the spring. If you really can't find any stamp, then your only other option is to weigh the sash on a scale and refer to the chart we have on the S770-34. It's important to be as precise as possible. Do not estimate the weight of your sash. These are delicate systems and you want to make sure the calibration is on point. |
