Balancer shoe

A quick learner from Lapeer, MI says:
July 28, 2021

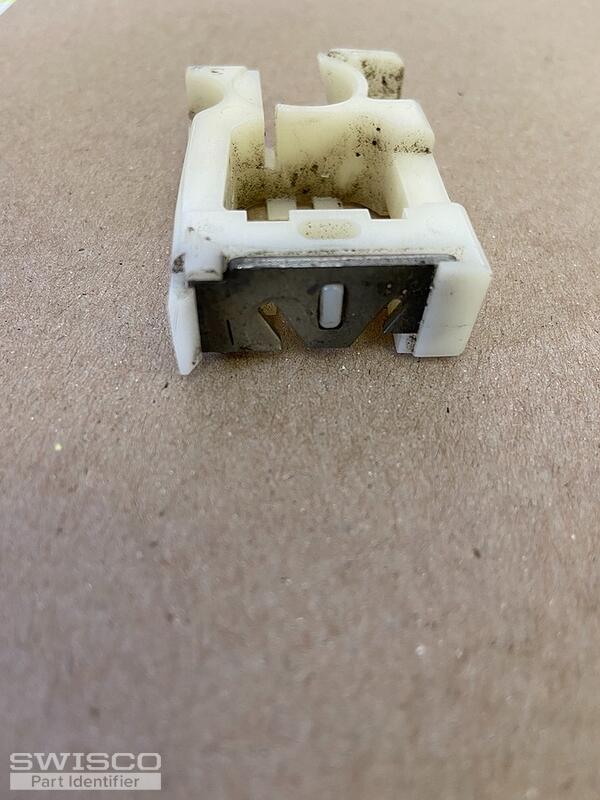

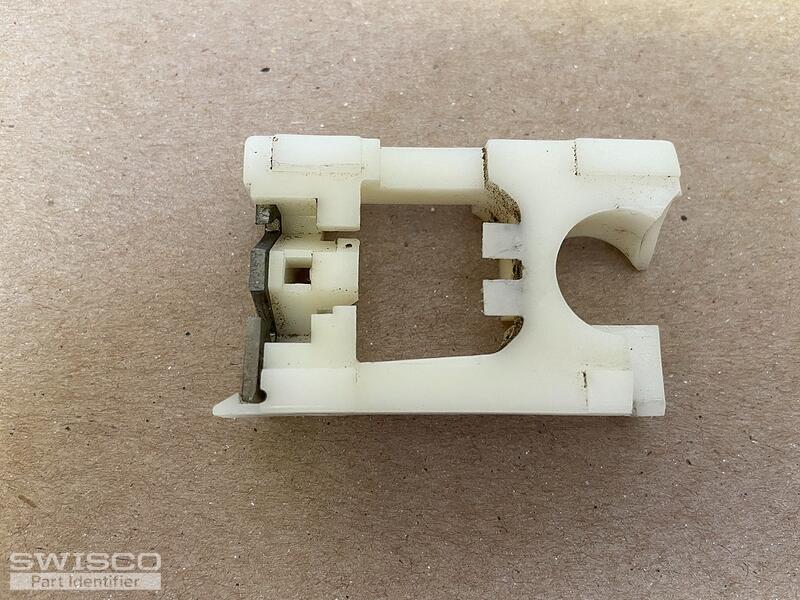

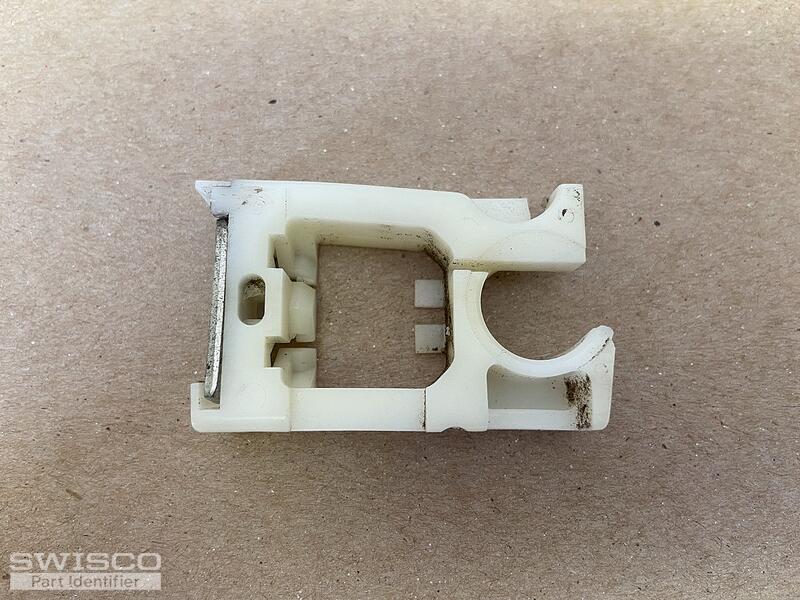

No names, numbers, or markings on part. It is for a shoe/balancer.
Thumbnail of the uploaded file named image_50391041.JPG
Thumbnail of the uploaded file named image_50406401.JPG
Thumbnail of the uploaded file named image_67169537.JPG
Profile picture of Tom
Tom from SWISCO responded:
August 3, 2021

We carry a ton of different pivot shoe so I am confident that we can get this for you. Before I recommend anything, can you just tell me the width and thickness of this part? If at all possible I would also like you to show me an undamaged version. The cam is missing on yours; I think I have a good idea of what it looked like but you can never be 100% sure with these parts, so it might be a good idea to confirm.
A quick learner from Lapeer, MI says:
August 3, 2021

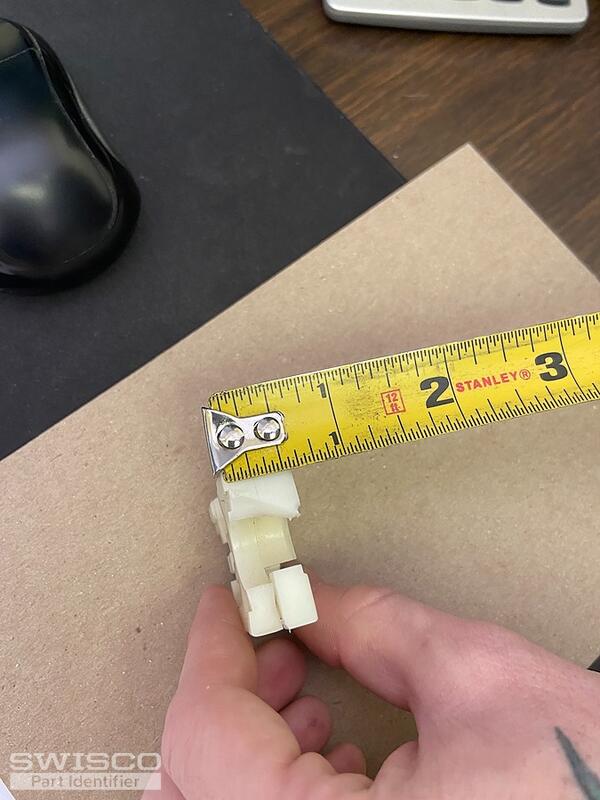

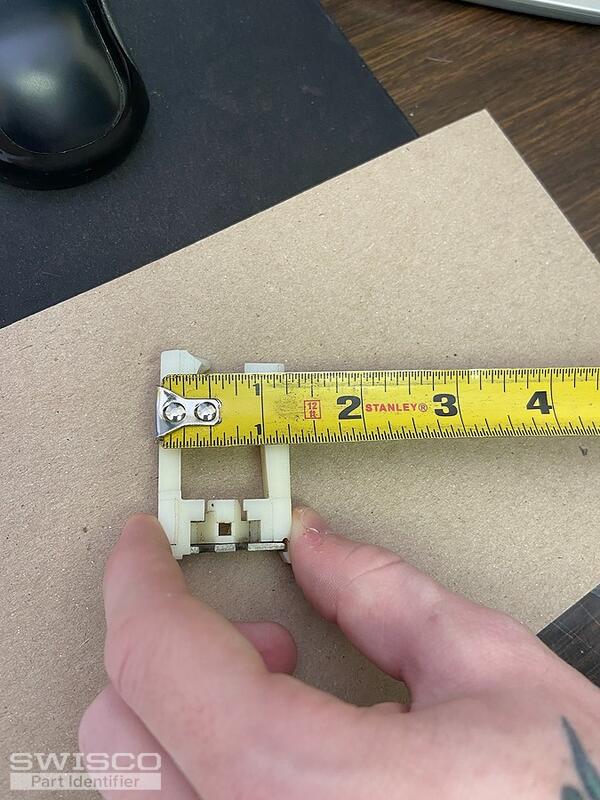

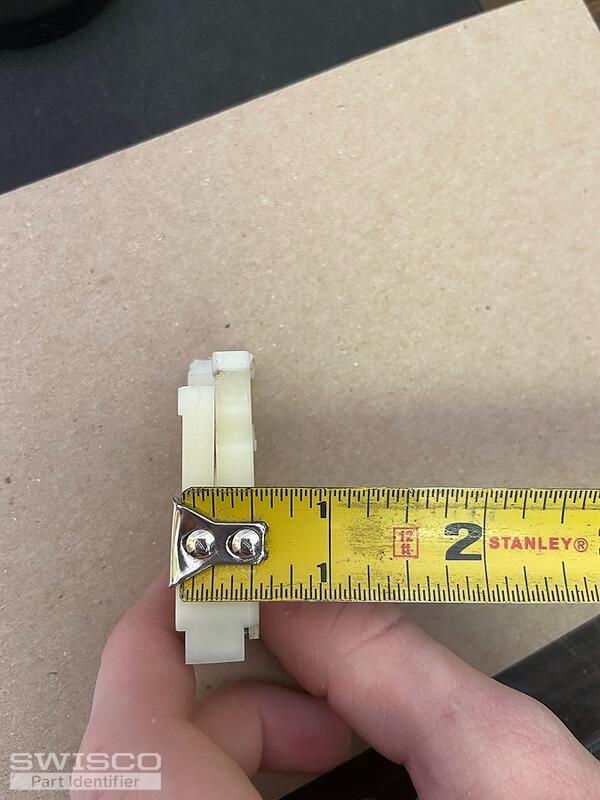

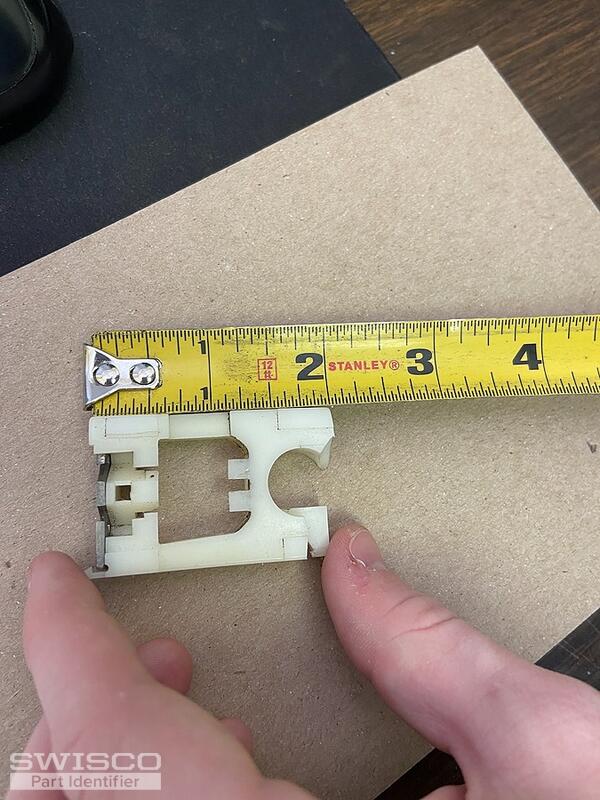

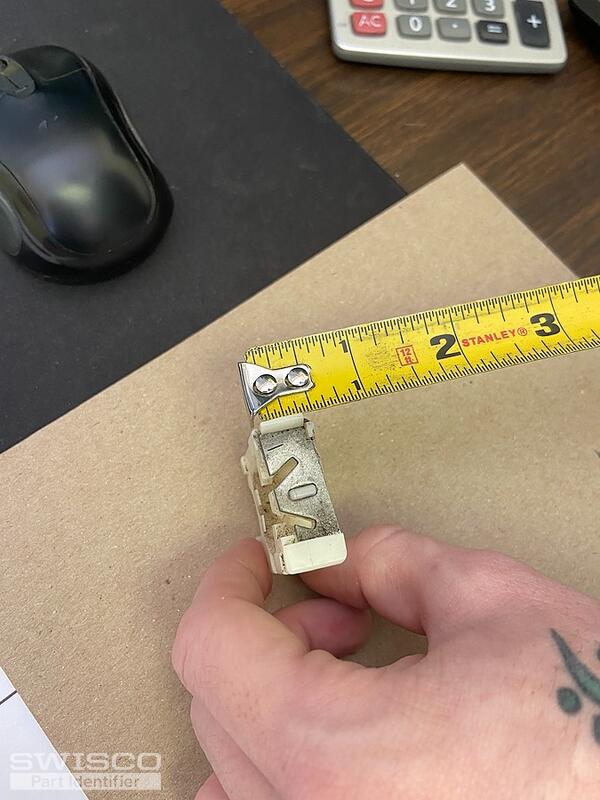

Unfortunately we do not have an undamaged part for this. However I have attached more pictures with the measurements as well.
Thumbnail of the uploaded file named image_67176449.JPG
Thumbnail of the uploaded file named image_67179521.JPG
Thumbnail of the uploaded file named image_67163393.JPG
Thumbnail of the uploaded file named image_67181825.JPG
Thumbnail of the uploaded file named image_67174657.JPG
Profile picture of Tom
Tom from SWISCO responded:
August 3, 2021

Thanks! It's a bit tough to make out your precise measurements from a tape measure, but I think our 15-015 may be what you want. This is 1-1/4" wide and 17/32" thick so as long as those match up then I think you'll be okay.
Pivot Shoe, 17/32" Thick
Pivot Shoe, 17/32" Thick
15-015
$1.55
