Balancer

Home Owner from Dover Nj

Jun 16, 2023 11:21 am

This is the part I'm looking for I will be needing 2 for now but also want to get some extra one for the future and you need better pics I can get them as well please call me if anything else please and thank u

4 user uploaded images

4 Replies

Tom from SWISCO

Jun 16, 2023 1:36 pm

Hello! This looks like a pretty typical tilt window spiral balance. You have only one of two options, depending on the diameter of the outer tube: either the 3/8" Series 900 or the 9/16" Series 600.

I personally think yours is the larger version, the Series 600, but you should measure your outer tube to verify.

Home Owner from Dover Nj

Jun 20, 2023 3:39 pm

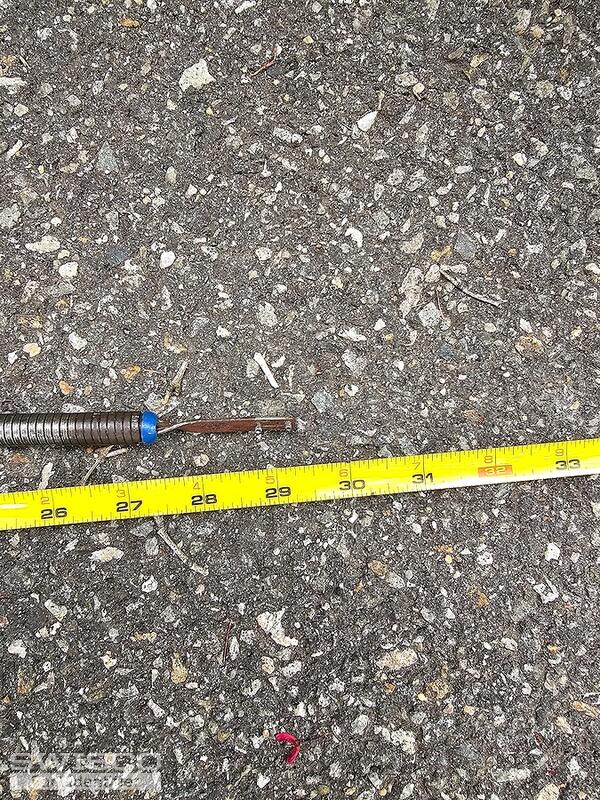

Ok I measured it and it's 7/16 and it's has a blue tip

Tom from SWISCO

Jun 21, 2023 8:44 am

I've never heard of a 7/16" diameter balance before. I'm afraid that's not a size we offer. The only options available are 3/8" and 9/16".

Make sure you're measuring the outer tube, which in your case is the white nylon sleeve. If you're measuring the spring itself then you're not going to get an accurate size.
