Balancer identification/ replacement needed

Home Owner from Tacoma, WA

Aug 20, 2019 12:47 pm

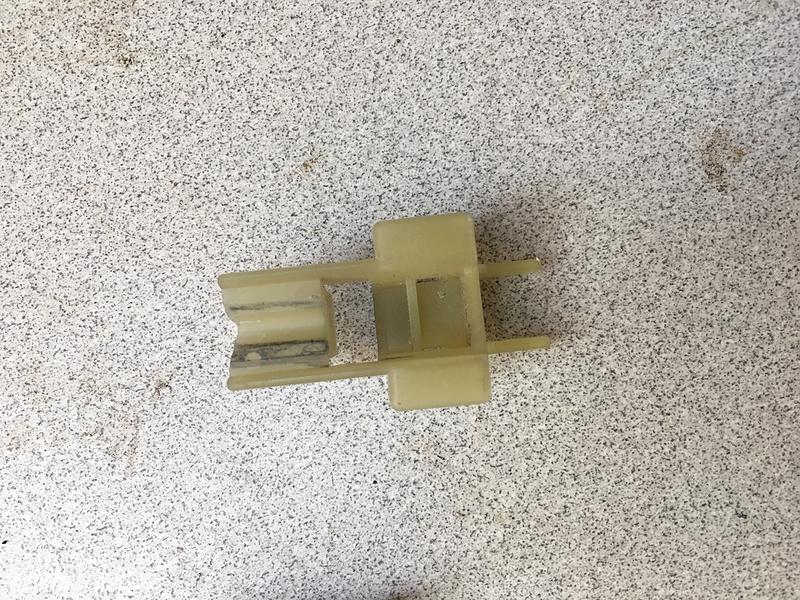

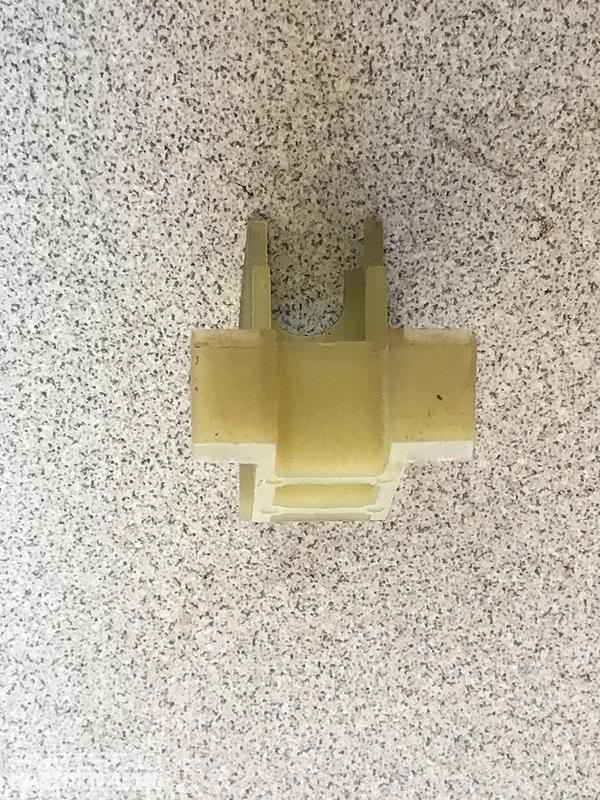

1/2 inch width
23 inches long without shoes

22 4 CP CALDWELL

can you help me identify which replacement part is needed? thank you.

Mike

5 user uploaded images

8 Replies

Tom from SWISCO

Aug 27, 2019 8:17 am

With this combination of attachments, you could have either an S380-23 or S385-23 channel balance. You need to measure as shown below. The Series 380 has a 1" bottom attachment, and the Series 385 has a 1-3/32" attachment. You'll also need a 2240 spring strength option for your balances based on your stamp number.

Thank you and let us know if you have any other questions or concerns.

Comparison of the S378, S380 and S385 balance shoes.

Quick Learner from Tacoma

Sep 9, 2019 11:59 am

Thank you Tom,

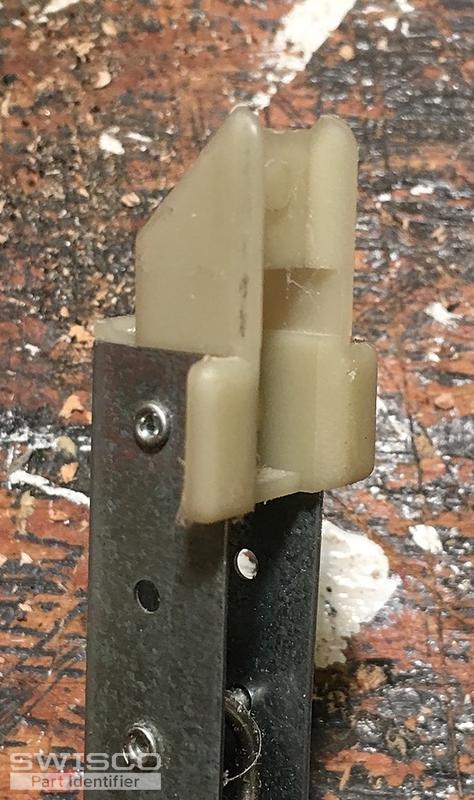

I realized I have another one that I would like to replace as well and need help identifying.

This is also 1/2 inch width.
24 & 5/8" length without shoes.

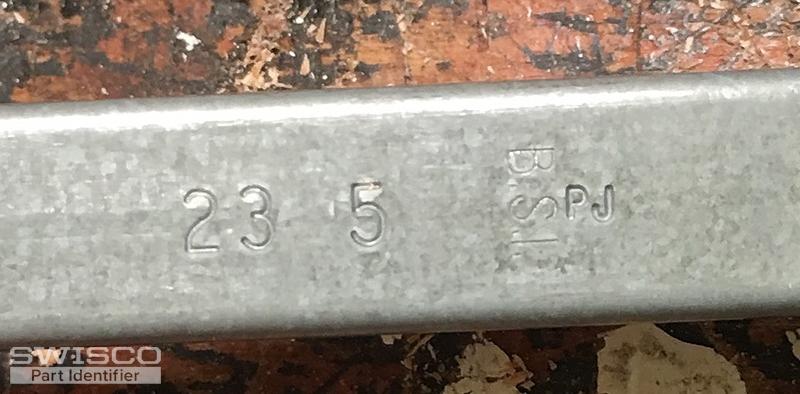

The stamp reads: 23 5 B.S.I. PJ

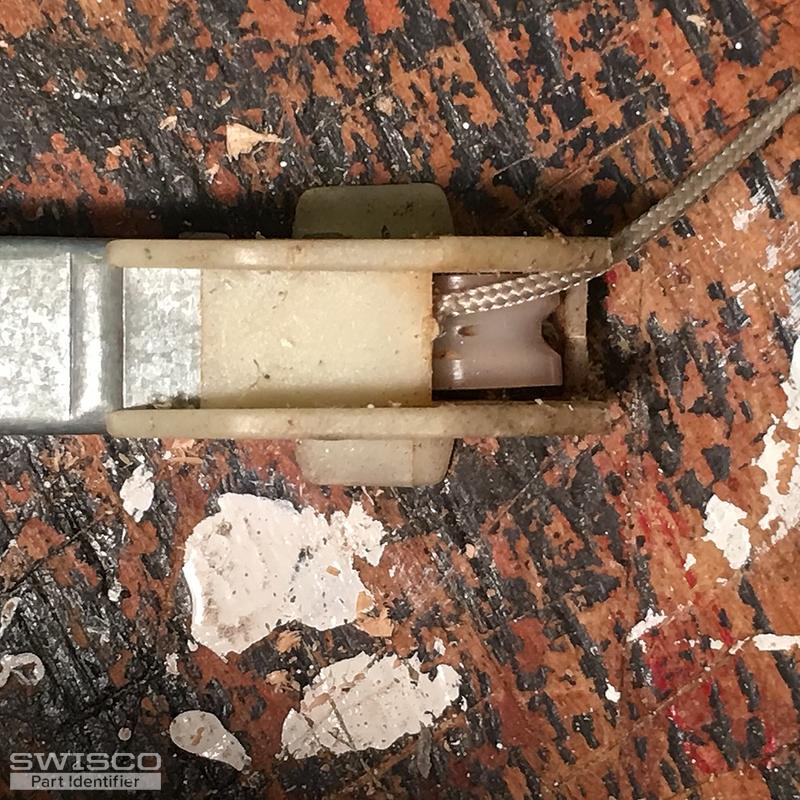

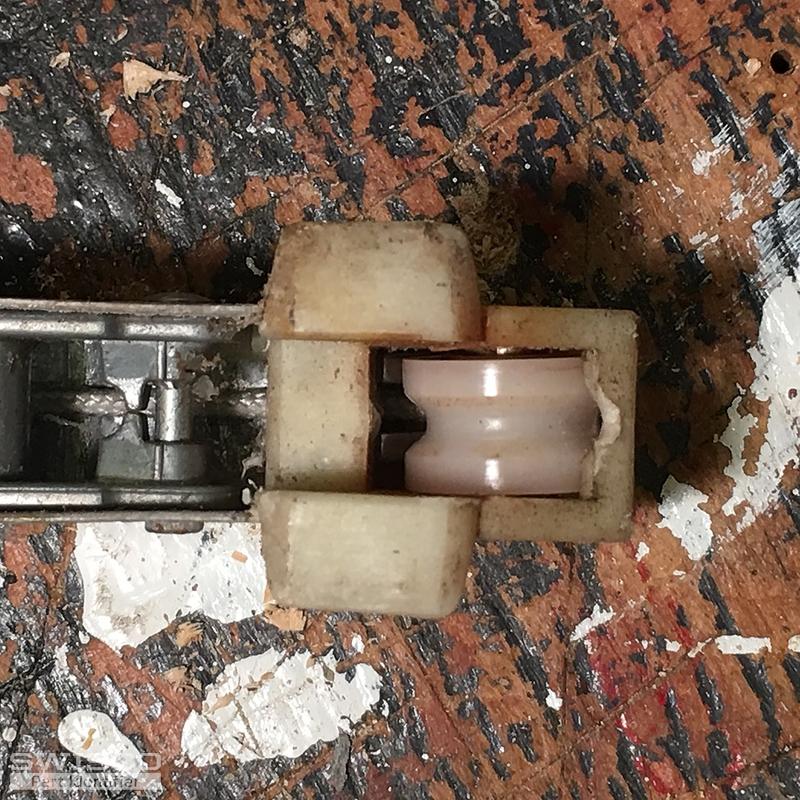

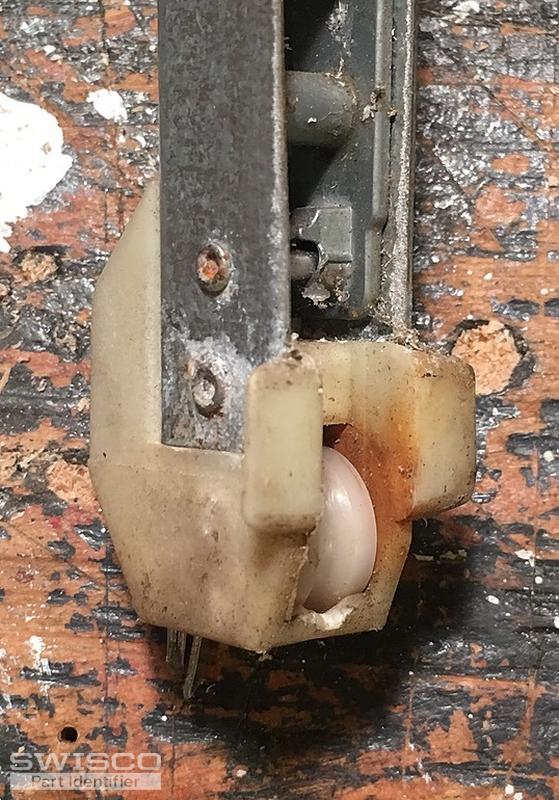

The bottom shoe has a pulley and measures 1&1/16th" in depth and 1&7/8" in height.

5 user uploaded images

Tom from SWISCO

Sep 9, 2019 1:57 pm

Hello again! This is a specific kind of balance that will have to be a special order. The key detail is the wheel built into the pulley shoe, as well as extra travel in the cord.

Before we begin, can you show me a picture of the metal hook that was at the end of the cord? Yours appears to be missing, but we need to see that hook before we continue. Let me know!

Quick Learner from Tacoma

Sep 9, 2019 3:16 pm

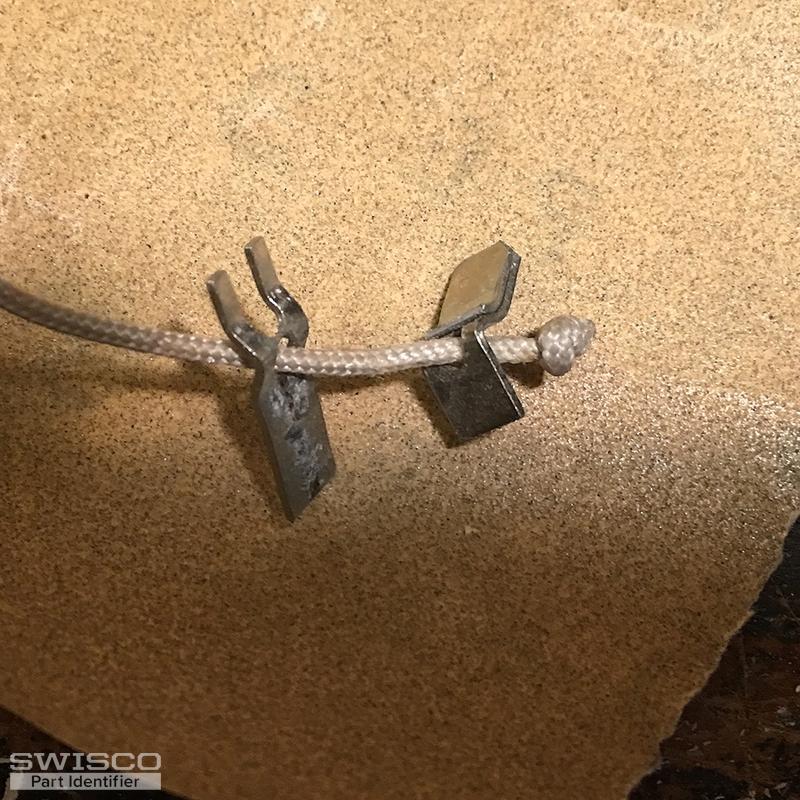

thanks again Tom. It looks like this one is broken and or bent. It may have happened when I removed it. If needed I can take out the other side to photograph it.

1 user uploaded image

Tom from SWISCO

Sep 10, 2019 8:10 am

This is perfect, thank you. I know exactly what this is. Now, the hook that will come with ours is a little different, but it will still function the same way.

Please give us a little time to confirm the availability of this Series. Once we have, I'll email you an order link and price quote.

Quick Learner from Tacoma

Sep 10, 2019 10:43 am

Perfect. Thank you Tom.

Tom from SWISCO

Sep 10, 2019 12:20 pm

You got it! We have everything we need to get started. I'll go ahead and shoot that link to you right now. Let me know if you have any questions.
