Balancer rod 2940 RK

Home Owner from Fort pierce, FL

Nov 19, 2022 9:06 am

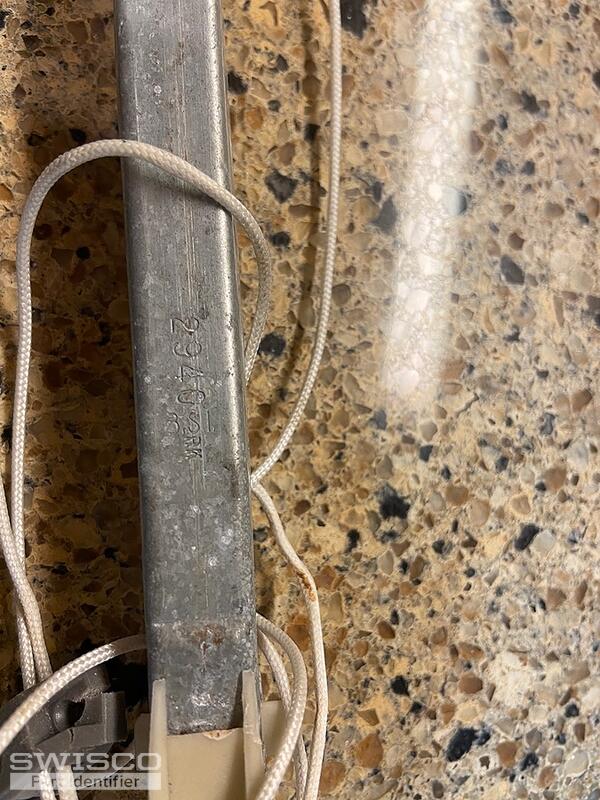

30 inches long, 1/2 inch wide. I do not know the brand, however there is a part number on the channel rod that says 2940 RK as shown in one of the pictures

4 user uploaded images

4 Replies

Casey from SWISCO

Nov 23, 2022 2:41 pm

Hello,

With this combination of attachments, you could have either an S380-30 or S385-30 channel balance. You’ll need to measure as shown below. The Series 380 has a 1" bottom attachment, and the Series 385 has a 1-3/32" attachment. You'll also need 2940 spring strength options for your replacement balances.

Thank you and let us know if you have any other questions or concerns.

Comparison of the S378, S380 and S385 balance shoes.

Home Owner from Fort pierce, FL

Nov 23, 2022 7:28 pm

The bottom attachment measures 1 inch so that would be a series 380, but how do I know the spring strength I would need?

Casey from SWISCO

Nov 28, 2022 8:40 am

Great, as we mentioned, you would need a 2940 strength option based on the stamp shown in your last photo.
