Tom from SWISCO responded:
June 18, 2019
That's what we're here for! If you were to upload some photos of your balance and the shoe, we will do our best to find a good match. We may have more questions--and may also require more photos--depending on what you show us. Just be prepared to go back and get some more info if necessary. Thanks! |
Tom from SWISCO responded:
June 20, 2019

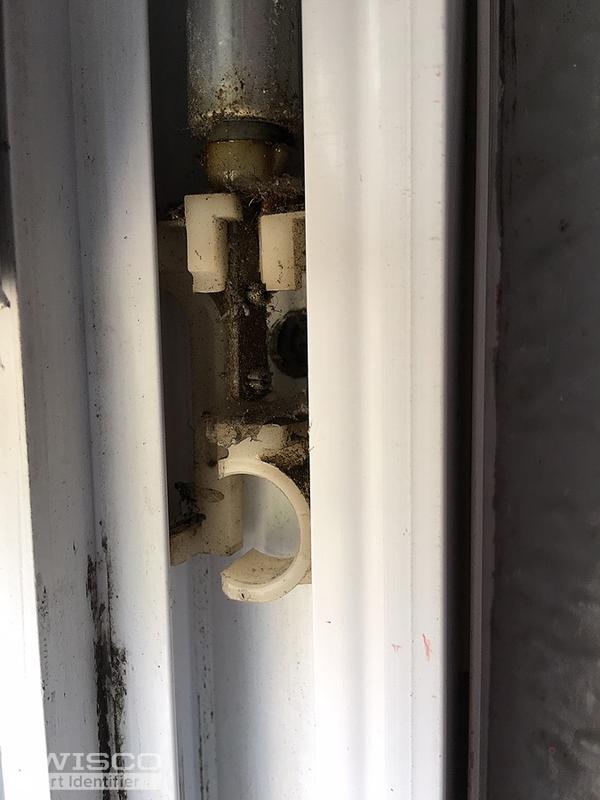

Perfect, thanks! This is a huge help. So let's start with the balance since it's easy. You're going to have either our Series 900 (3/8" diameter tube) or Series 600 (5/8" or 9/16" diameter tube). The best choice between these two will depend on (brace yourself) the diameter of your current balance's tube. The pivot shoe is a little trickier. You have an older model that isn't made anymore, but I think one of ours can still be used as a substitute. My instinct is telling me to recommend the 15-015, but I highly recommend measuring the thickness of your old shoe to confirm. It should be 17/32", which is pretty specific. That's how you know the 15-015 will be the right choice. If the thickness of your shoe is anything else, let me know and we'll track it down for you. |
Tom from SWISCO responded:
June 21, 2019

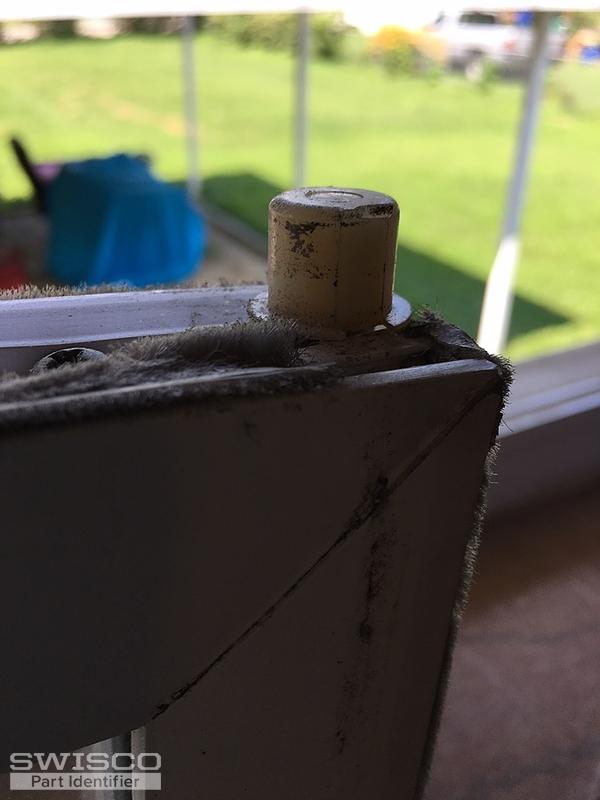

You're showing the pivot shoe. Like I mentioned in my prior post, I think our 15-015 is a possible match, but you need to confirm the thickness of your original to confirm. I highly recommend removing an undamaged version from the window to ensure that your measurement is as accurate as possible. |
Tom from SWISCO responded:
June 27, 2019
Oh yeah, it makes a huge difference. You definitely want to make sure you get the diameter of the outer tube right. That's probably the most important part of identifying the right balance. |
Tom from SWISCO responded:
June 28, 2019
No problem! Let me know if you ever need anything else. |
